PVC high speed shutter door
3 year ago

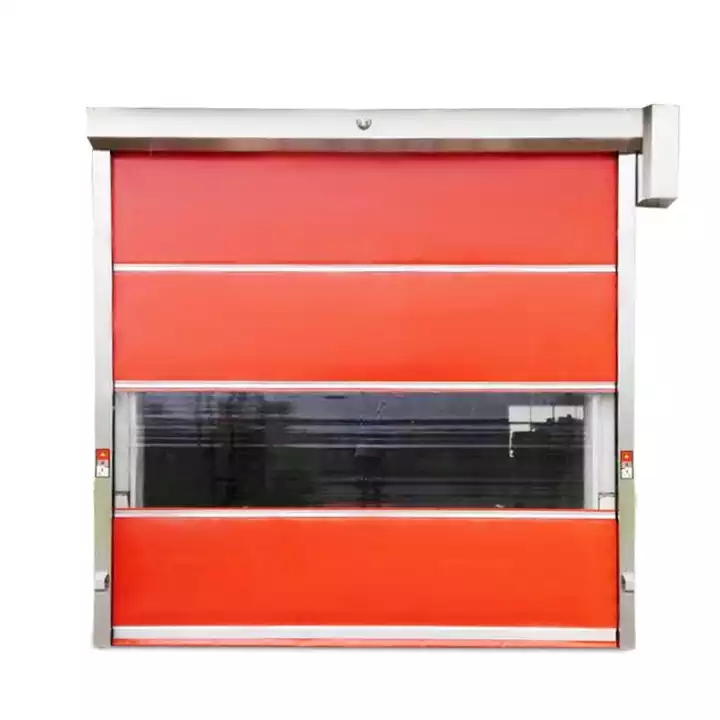

PVC Fast rolling rapid roll high speed roller shutter doors

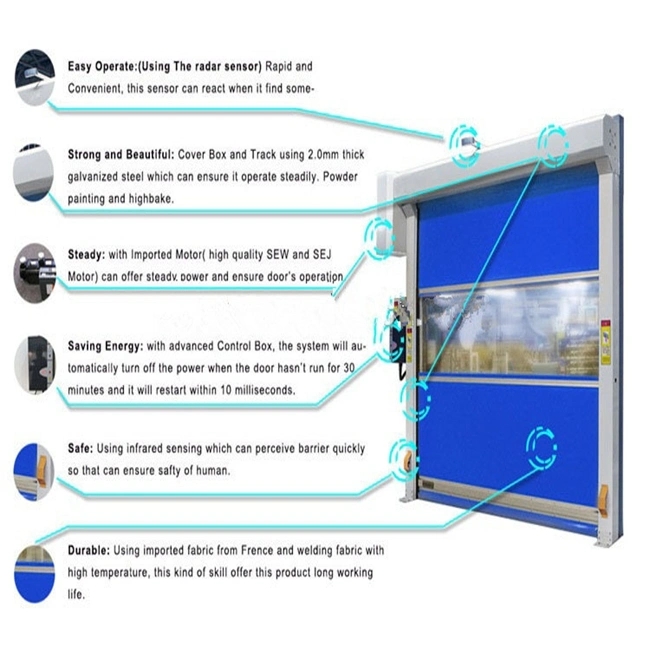

PVC High speed door has seven parts , radar, servo motor , servo control box , door curtain(color can choose ) safe optoelectronics , Anti-wind bar , door frame , High speed roller door , the high speed roller door is the most used and relatively economical high speed door in the market , the main materials of the high speed roller door are PVC and stainless steel , PVC is used for the door curtain and stainless steel is used for the door frame
The thickness and color of the door curtain can be selected and the material of the door frame can also be selected and the material of the door frame can also be selected stainless steel or aluminum alloy
Material Selection :
Frame: 2MM thicknesses cold-roll Stainless steel or aluminium alloy .
Motor : Germany SEW brake motor .
Control system: Imported Japan Mitsubishi converter and PLC to control of electric box
Opening & closing speed: 0.6-1.5m/s (adjustable).
Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.

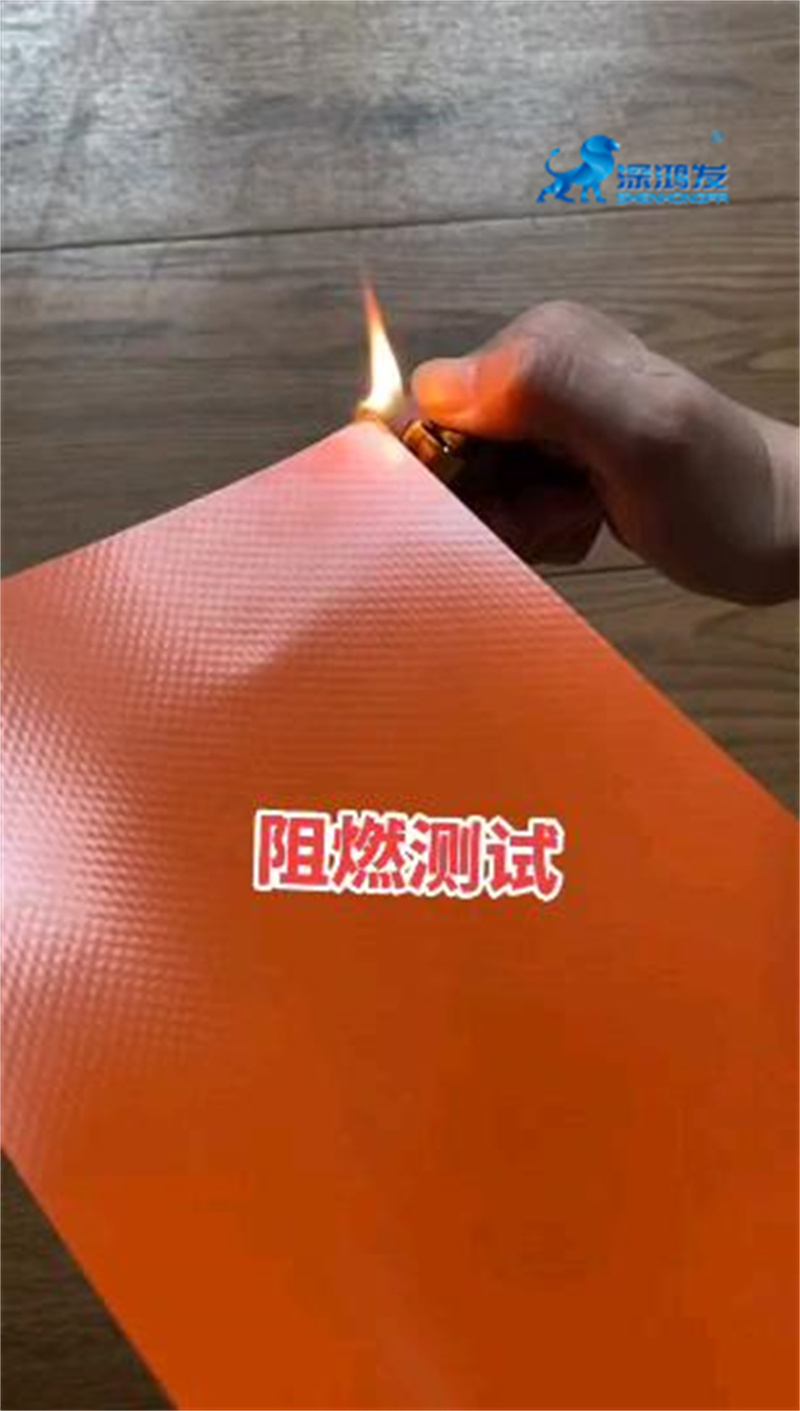

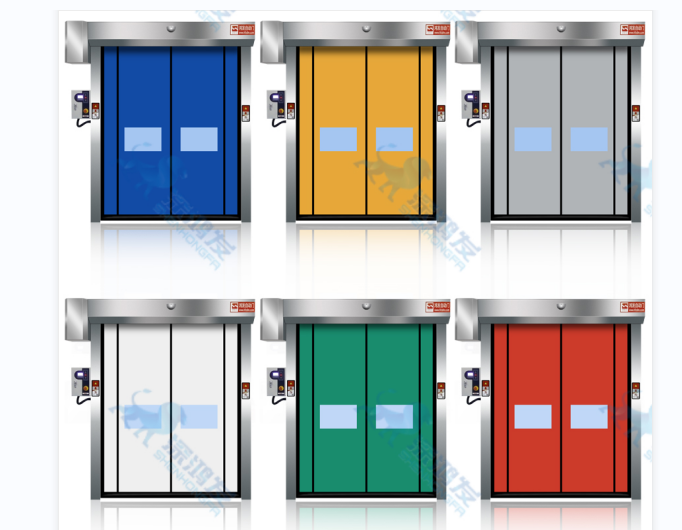

Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8-1.5MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Usage temperature: -30 ° C +70 ° C .
Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken , save your cost.
Transparent window: 1.2MM thickness transparent PVC window, size and location is CustomizedSeal: Seal brush are Installed inside the guides, and the special bottom design .
Cotrolling way: Push button + radar sensor, very convenient.
Limiting Switch: Mechanical limiting switch, easily and exactly.
Emergency STOP : With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
Delivery time: About 7 business days with contract and deposit confirmed.
Pyament item: 50% before production, and the other 50% before shipment.
Warranty Details: We provide 12 months warranty for all doors and accessories
