Product details

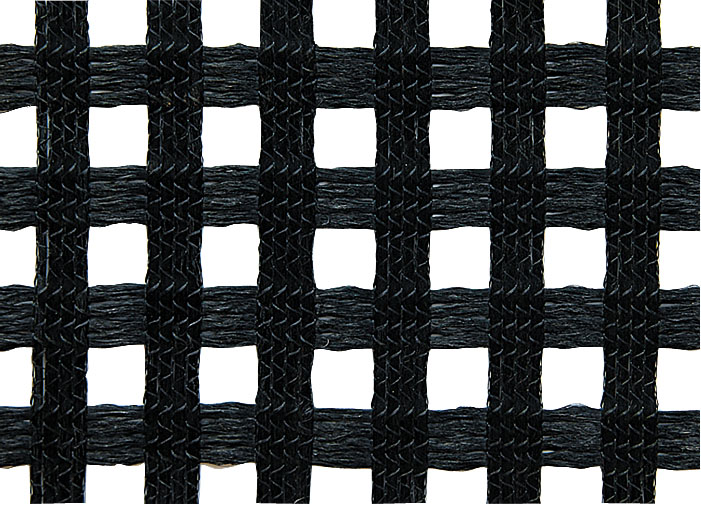

Walls & Slope Reinforcement Uniaxial PET Geogrids

Product Introduction

1.Tensile strength(MD&CD):20KN-1000KN

2. Roll Size(m): Width:3.95m/5.95m;Length:50m/100m.

3. Standard:ASTM D6637

4. Certification: ISO9001, SGS, CE,

Walls & Slope Reinforcement Uniaxial PET Geogrids is a kind of new high quality base material reinforcing the roadbed. It uses high strength polyester and polypropylene fiber as its raw material and then warp knitted directionally and coated with a special glue.

Product Features

The warp knitted polyester geogrid has the characteristics of high intension, low elongation ratio, erosion-resistant, aging-resistant, high occlusive force with soil or gravel, light weight, water drainage and so on.

Product Function

Reinforcing the embankment slope.

Retaining walls reinforced to enhance the overall strength.

Reinforcement, segregation of dam and river in water conservancy projects reinforce and the soft soil base, strength their projection and improve the bearing capacity and stability of the foundation.

The soft soil roadbeds of road, railway and other municipal roads are reinforced which can effectively improve the strength of subgrade, delaying reflection cracks in the road.

Specification

Tensile Strength (KN)	Warp	≥30	≥50	≥60	≥80	≥100	≥120	≥150	≥200
Tensile Strength (KN)	Weft	≥30	≥50	≥60	≥80	≥100	≥120	≥150	≥200
Elogation	Polyester	﹤13%	﹤13%	﹤13%	﹤13%	﹤13%	﹤13%	﹤13%	﹤13%
Mesh size(mm)		12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50
Width(m)		1~6	1~6	1~6	1~6	1~6	1~6	1~6	1~6
Length(m)		50~300	50~300	50~300	50~300	50~300	50~300	50~300	50~300
Temperature Resistant (℃)		-100~280	-100~280	-100~280	-100~280	-100~280	-100~280	-100~280	-100~280
Resin Content (%)		≤30%	≤30%	≤30%	≤30%	≤30%	≤30%	≤30%	≤30%
resistance to installation damage %SC/%SW/%GP		95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90
resistance to long term degradation %		100	100	100	100	100	100	100	100
Design life (years)		150	150	150	150	150	150	150	150
Glue Type		PVC SBR soakage	PVC SBR soakage	PVC SBR soakage	PVC SBR soakage	PVC SBR soakage	PVC SBR soakage	PVC SBR soakage	PVC SBR soakage

Product model		PET 60/30	PET 80/30	PET 100/30	PET 150/30	PET 180/30	PET 250/30	PET 300/30
Project
Material		High tenacity polyester	High tenacity polyester	High tenacity polyester	High tenacity polyester	High tenacity polyester	High tenacity polyester	High tenacity polyester
After treatment		PVC soakage	PVC soakage	PVC soakage	PVC soakage	PVC soakage	PVC soakage	PVC soakage
Tensile strength(KN/m)	Longitudinal	>=60	>=80	>=100	>=150	>=180	>=250	>=300
	Transverse	>=30	>=30	>=30	>=30	>=30	>=30	>=30
Elogation %		﹤13%	﹤13%	﹤13%	﹤13%	﹤13%	﹤13%	﹤13%
Gridding size (mmXmm)		12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50	12.7×12.7 25.4×25.4 40×40 50×50
Temperature Resistant (℃)		-100~280	-100~280	-100~280	-100~280	-100~280	-100~280	-100~280
Resin Content (%)		≤30%	≤30%	≤30%	≤30%	≤30%	≤30%	≤30%
resistance to installation damage %SC/%SW/%GP		95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90	95/93/90
resistance to long term degradation %		100	100	100	100	100	100	100
Design life (years)		150	150	150	150	150	150	150
Breadth(m)		2-6	2-6	2-6	2-6	2-6	2-6	2-6
Remark		Our company can make products based on the different requirement from customers. The largest strength could be 1000KN/m.

Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
