Product details

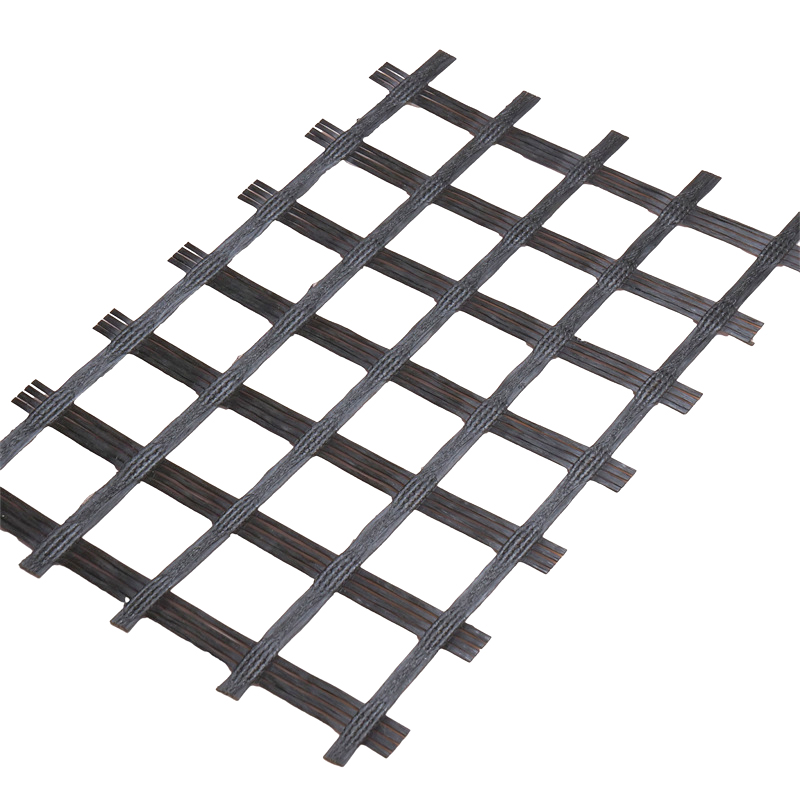

Fiberglass Geogrid For Soil Stabilization

Product Feature

1.High tensile strength:reducing reflective cracking
2.Low elongation, its break elongation is less than 4%
3.Creep resistance
4.Consistency
5.Temperature Stability
6.Nesting,Interlock and Restraint Effects

Product Function

1. It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;

2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.

3. It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;

4. Coated Fiberglass Geogrid is used in soft soil base reinforcement treatment ,is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;

5. High Strength Fiberglass Geogrid is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.

Specification

Performance/Specification		GG25-25	GG30-30	GG40-40	GG50-50	GG80-80	GG100-100	GG120-120
Intensity (KN/m)	Longitudinal	≥25	≥30	≥40	≥50	≥80	≥100	≥120
	Horizontal	≥25	≥30	≥40	≥50	≥80	≥100	≥120
Break elongation ratio (%)	Longitudinal	≤3	≤3	≤3	≤3	≤3	≤3	≤3
	Horizontal	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Mesh size (mm×mm)		12~50	12~50	12~50	12~50	12~50	12~50	12~50
Breadth (m)		1~6	1~6	1~6	1~6	1~6	1~6	1~6

Our Main Products:

Fiberglass Geogrid,Polyester Geogrid,Nonwoven Geotextile,PP Biaxial Geogrid,Fiberglass Geogrid,Polyester Geogrid,Asphalt Reinforcement Geocomposite,Woven Geotextile,HDPE Geocell,HDPE Geonet,Drianage Geocomposites,Fiberglass Mesh,Spunbond Nonwoven Fabric,etc
