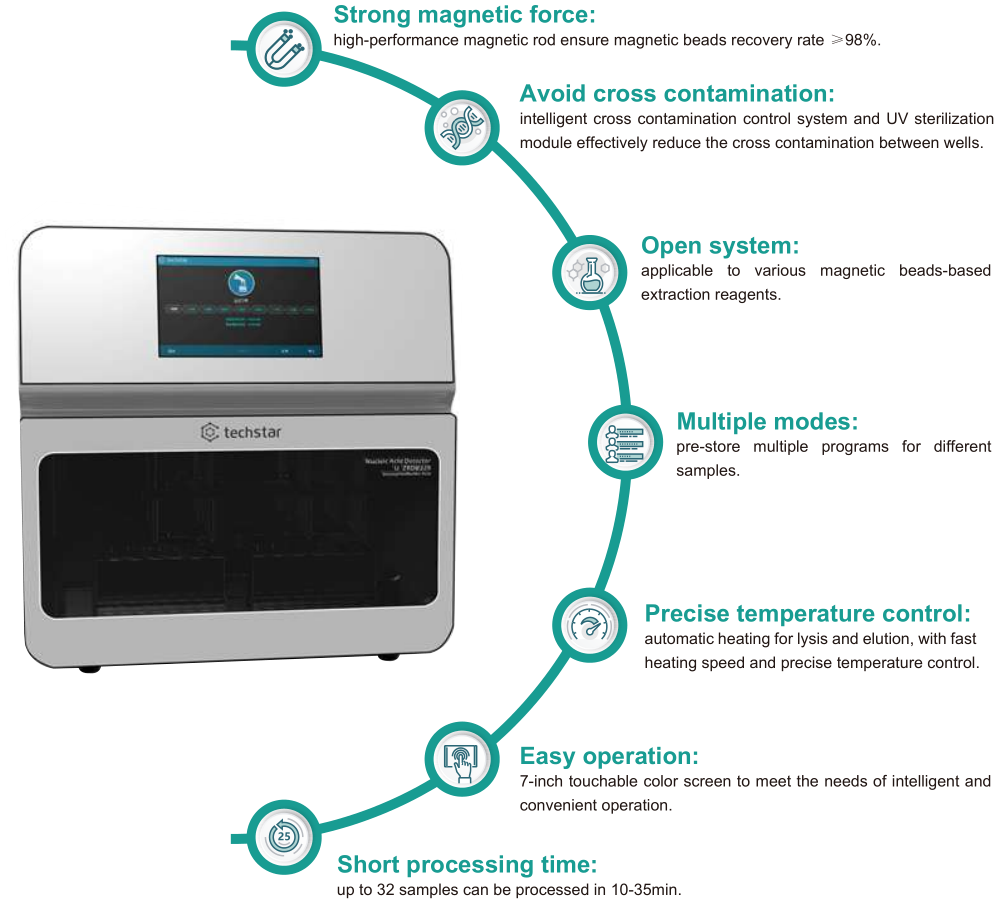

Nucleic Acid Automatic Extraction System (Throughput-32)

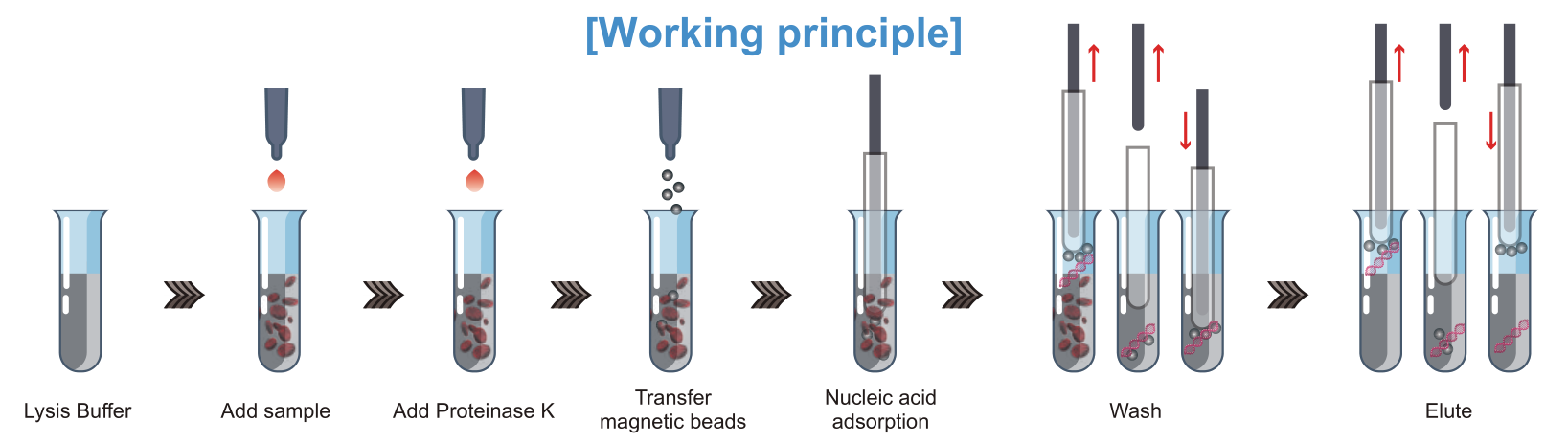

With the latest isolation method of nucleic acid transferred by magnetic rods and preloaded magnetic beads-based extraction reagent, The YC702 Nucleic Acid Automatic Extraction System can process 1-32 samples and automatically isolate nucleic acids from various samples such as blood, cells, viruses, etc. The magnetic beads are adsorbed, transferred and released by the special magnetic rod, so as to realize the fully automated purification of nucleic acid.

In addition to this product, NEST has launched over 200 plastic consumable products for cell culture, molecular biology, Microbiology, liquid handling and storage, Lab Instruments and Medical Instruments.

Unique Magnetic Rod Movement
The driving device is equipped with a high-performance stepping motor, with large magnetic rod vibration amplitude. The vibration amplitude can be set according to the volume of the solution to ensure good and even
blending effect. The actuator is made of ball screw to ensure that the rod runs smoothly, high precision and longer service life of the rod. Each moving component is protected by the limit position protection mechanism to avoid instrument failure.

New Strong Magnetic Rod
With the newly designed strong magnetic rod, the magnetic beads are absorbed on the head of the magnetic rod, so as to ensure that the elution buffer can still cover all the magnetic beads even with a small elution volume. The high recovery of magnetic beads ensures high yield of nucleic acid.

Instrument parameters

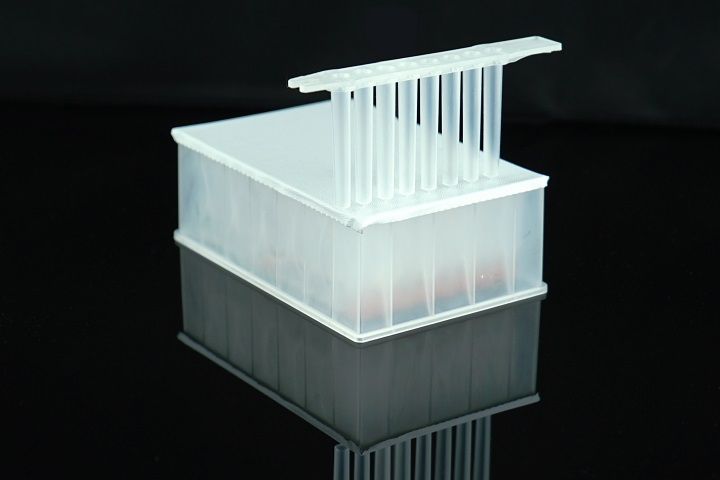

Magnetic Bead-Based Nucleic Acid (DNA/RNA) Extraction Kit

(32-Channel Preloaded Version)

This kit is suitable for TECHSTAR YC701 Nucleic Acid Automatic Extraction System for extracting genomic DNA/RNA of pathogenic microorganisms from samples such as serum, plasma, cultured cells, saliva, alveolar lavage fluid, nasopharyngeal aspirates and swabs.

[Product name] Magnetic Bead-Based Nucleic Acid (DNA/RNA) Extraction Kit

[Product number] SC906-64

[Packing specification] 64 T/kit

[Transportation condition] Room temperature

[Preservation condition] Room temperature, or 2-8°C for long-term preservation

[Period of validity] 12 months

[Applicable instrument] TECHSTAR YC702 Nucleic Acid Automatic Extraction System

Company Introduction

Found in 2009,Wuxi NEST Biotechnology is a worldwide manufacturer of plastic laboratory products. State-of-the-art manufacturing equipment is used on an expansive manufacturing site based in Wuxi, China. Decades of plastic-injection molding experience allows us to maintain the highest quality and performance standards expected by the hospitals, research institutions and indusrial/clinical laboraories that we serve, NEST is your best choice for laboratory consumables.
NEST has launched over 200 plastic consumable products for cell culture, molecular bislogy, immunoassays, liquid handling and storage. With stricty controlled ISO 8 grade clean rooms, exacting manufacturing standards and rigid QA procedures, the NEST brand enjoys an excellent reputation nationwide and abroad. NEST products have been exported to North America, Europe, Japan, Korea, India and other countries.
NEST is committed to innovation. We continue to research and develop new platic consumables suitable for life sciences research so that we can provide more cost-effective solutions and cutting-edge laboratory consumables for our end-users.
NEST has continually positioned itself as a brand for high end laboratory consumables.

Our Services & Strength

NEST boasts of a high power laminar flow clean room meeting the ISO 8 grade with a floor space of 2,000 square meters. These facilities are equipped with a central feeding system, high precision injection machinery from Japan, robot arms with automatic conveyers, hot runner molds, and vacuum plasma and corona treatment machines from Belgium, Germany and USA. Inner room moisture content and temperature are adjustable. In 2013, NEST installed a Rhodotron TT 200 from Belgium IBA, a world leader in the E-Beam sterilization industry. NEST completes a full process chain from the sourcing of the raw materials to the in-house sterilizationof the final products ready for delivery to clients.
NEST’s manufacturing site has been certified with an ISO 9001:2008 management system. Our sterilization procedures meet the ISO 11137:2006 and ISO 13485 standards.
