Transfer Cap for 2L High Efficiency Erlenmeyer Flask With ISO9001&13485 certified, Transfer Cap for 2L High Efficiency Erlenmeyer Flask are manufactured in 100,000 grade cleaning room with USP 6 grade raw materials. Nest is committed to be your best choice for laboratory and medical consumables.

Nest delivers the one stop solution for its products including tooling making, injection, processing, sterilization, all under one roof. In addition to this product, NEST has launched over 200 plastic consumable products for cell culture, molecular biology, Microbiology, liquid handling and storage, Lab Instruments and Medical Instruments.

Application:

It is applicable to liquid transfer and culture during mass proliferation of bacteria and suspension cells.

Product Features:

1. Closed transfer reduces the risks of contamination during liquid transfer.
2. The cap is molded and connected in an integrated manner, reducing the risks of leakage and media residues.
3. A variety of tubing diameters are available and aseptic welding of liquid inlet tubing under normal conditions is supported.
4. High-quality materials and smooth inner wall of the tubing provide an excellent transfer performance.
5. Sterility level (SAL) is maintained at 10^-6.

6. Endotoxin-free, and no ingredients of animal origin.

Transfer Cap for Shake Flask

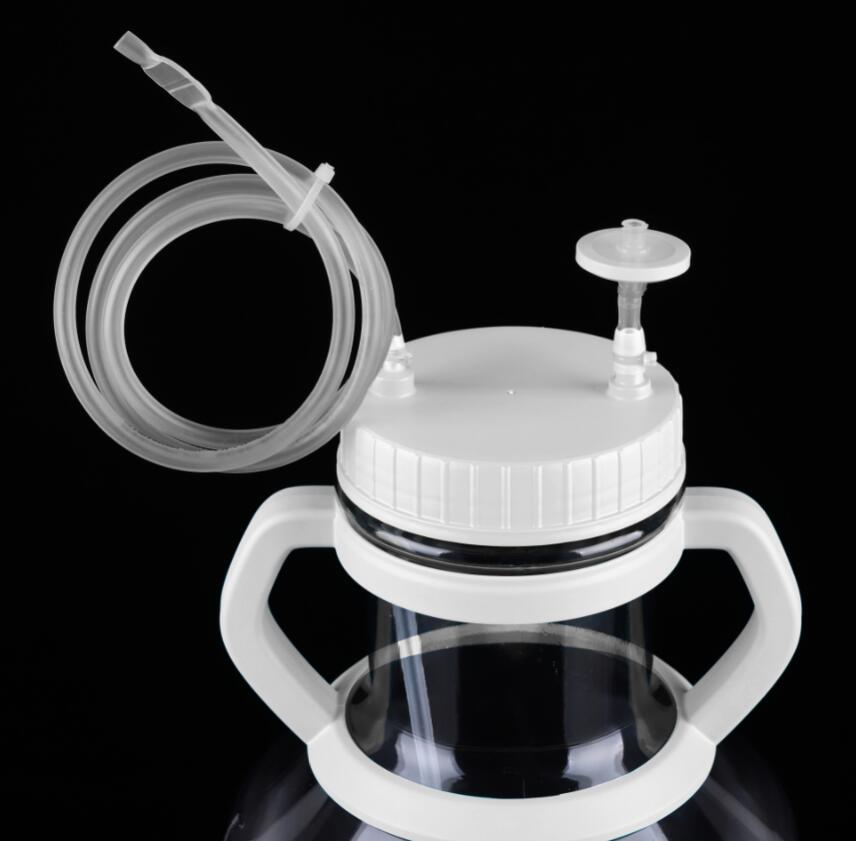

Two-Way Liquid Transfer Cap：

The two-way transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet tubing with the required device.
The liquid transfer is achieved by connection of a peristaltic pump between the shake flask and the device. Upon completion of the

transfer, the transfer cap can be replaced with a vent cap for culture.

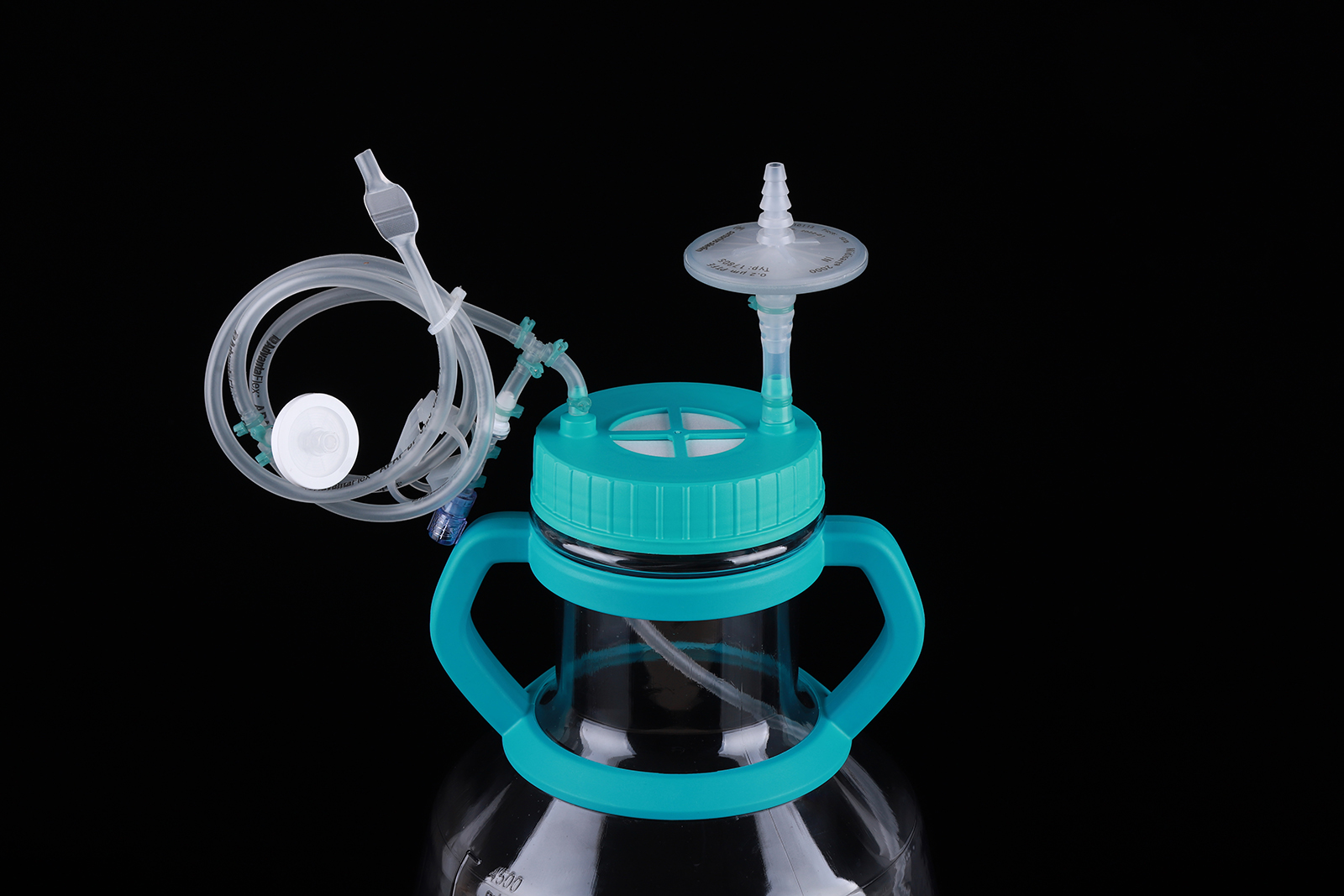

Multifunctional Liquid Transfer Cap:

Unlike the two-way liquid transfer cap, the multifunctional transfer cap can be directly placed in an incubator for culture after
the liquid transfer is completed. It can reach a large air flux. The sampling part is composed of a sampling nozzle and a one-way
valve, which can prevent the liquid from flowing backwards during the sampling process and ensure the aseptic sampling. The liquid
inlet tubing is provided with a PTFE needle filter, which solves the issue of liquid remaining in the tubing during the feeding
process.

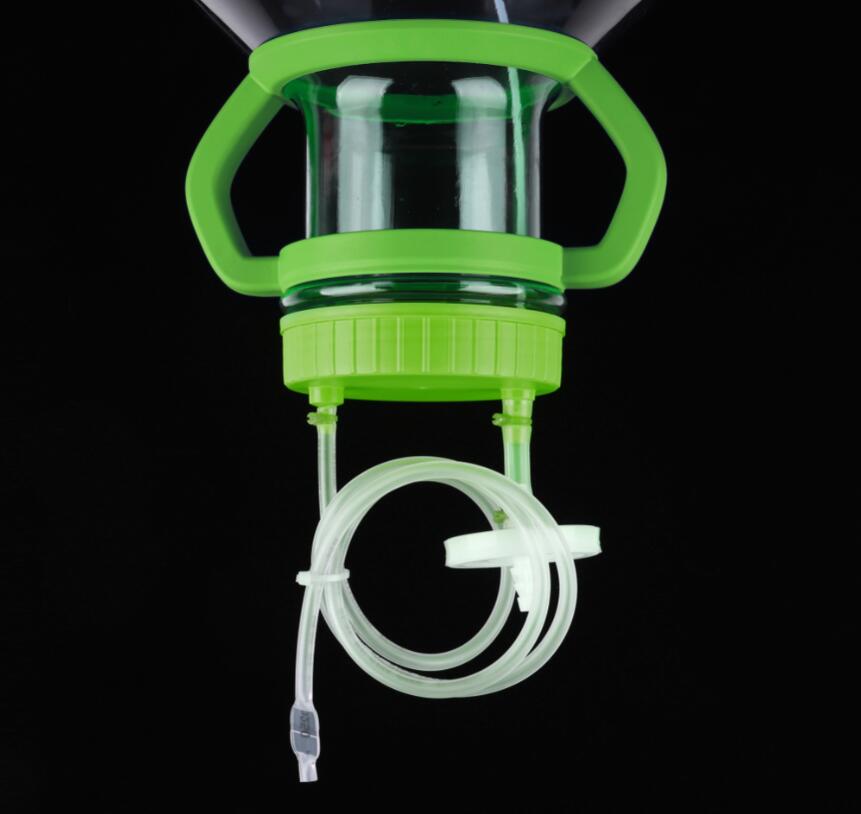

Inverted Liquid Transfer Cap:

The inverted transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet tubing with the required device.
When liquid transfer is required, the liquid is transferred under gravity with the inverted shake flask.

Transfer Cap

Cat.No.	Name	Information	Pipe length	/pack	/case
C10111-AJE052B	Multifunctional Liquid Transfer Cap for 2L	Thermoplastics Pipes Pipe Diameter: 1/8" ID, 1/4" OD, Pipe Connect: Aseptic welding / Heat-seal	52cm	1	4
C10211-AJE052B	Multifunctional Liquid Transfer Cap for 3L		52cm	1	4
C10311-AJE052B	Multifunctional Liquid Transfer Cap for 3L Wide-mouth		52cm	1	4
C10411-AJE092B	Multifunctional Liquid Transfer Cap for 5L		92cm	1	4
C10122-AZB050B	Bi-directional Liquid Transfer Cap for 2L		50cm	1	4
C10222-AZB050B	Bi-directional Liquid Transfer Cap for 3L		50cm	1	4
C10322-AZB050B	Bi-directional Liquid Transfer Cap for 3L Wide-mouth		50cm	1	4
C10422-AZB090B	Bi-directional Liquid Transfer Cap for 5L, and 3L Wide-mouth		90cm	1	4
C10123BZC050B (new)	2L Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap )III (Two Wide Mouths)	Thermoplastics Pipes Pipe Diameter: 1/4" ID, 3/8' OD , Pipe Connect: Aseptic welding / Heat-seal	50cm	1	4
C10223BZC050B(new)	3L Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap)III (Two Wide Mouths)		50cm	1	4
C10323BZC050B(new)	3L Wide-mouth Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap )III (Two Wide Mouths)		50cm	1	4
C10423BZC090B(new)	5L Efficient Erlenmeyer Flask Transfer Cap (Two-way Cap)III(Two Wide Mouths)		90cm	1	4
C10131-AZC050B	Inverted Liquid Transfer Cap for 2L	Thermoplastics Pipes Pipe Diameter: 1/8" ID, 1/4" OD, Pipe Connect: Aseptic welding / Heat-seal	50cm	1	4
C10231-AZC050B	Inverted Liquid Transfer Cap for 3L		50cm	1	4
C10331-AZC050B	Inverted Liquid Transfer Cap for 3L Wide-mouth		50cm	1	4
C10431-AZC090B	Inverted Liquid Transfer Cap for 5L		90cm	1	4
C10133-DZC050B	Inverted Liquid Transfer Cap for 2L, Thick Outlet Pipe	Thermoplastics Pipes Pipe Diameter: 1/4" ID, 7/16"OD, Pipe Connect: Aseptic welding / Heat-seal	50cm	1	4
C10233-DZC050B	Inverted Liquid Transfer Cap for 3L, Thick Outlet Pipe		50cm	1	4
C10333-DZC050B	Inverted Liquid Transfer Cap for 3L Wide-mouth, Thick Outlet Pipe		50cm	1	4
C10433-DZC090B	Inverted Liquid Transfer Cap for 5L Thick Outlet Pipe		90cm	1	4
