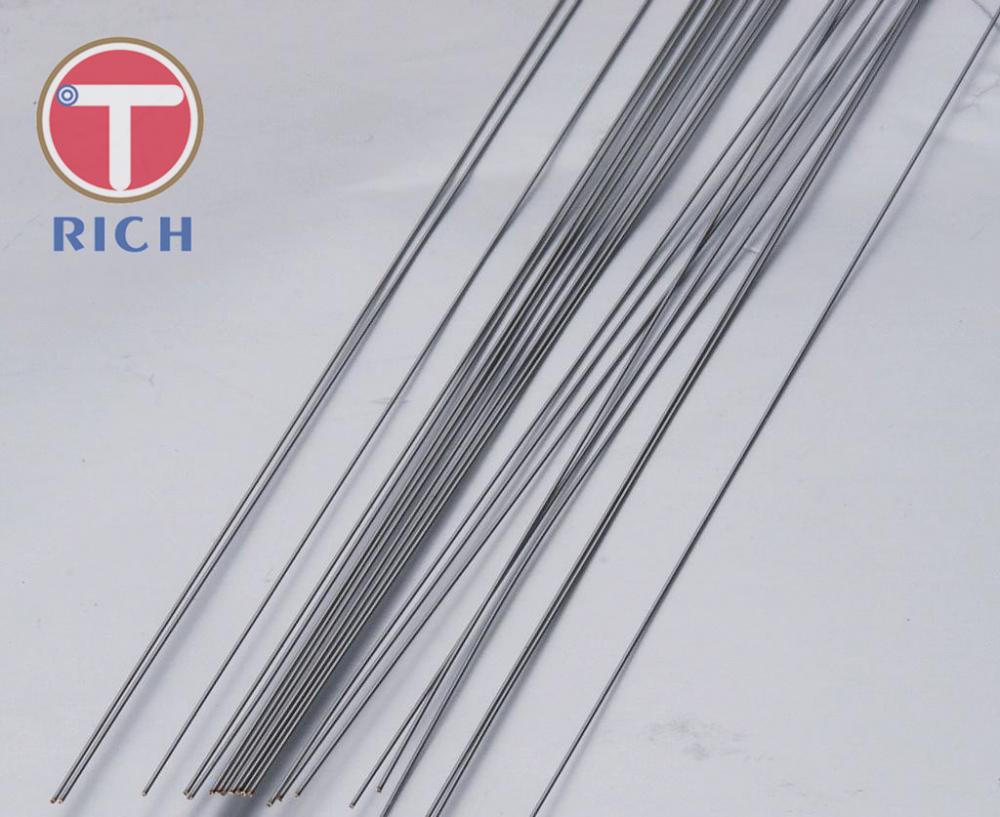

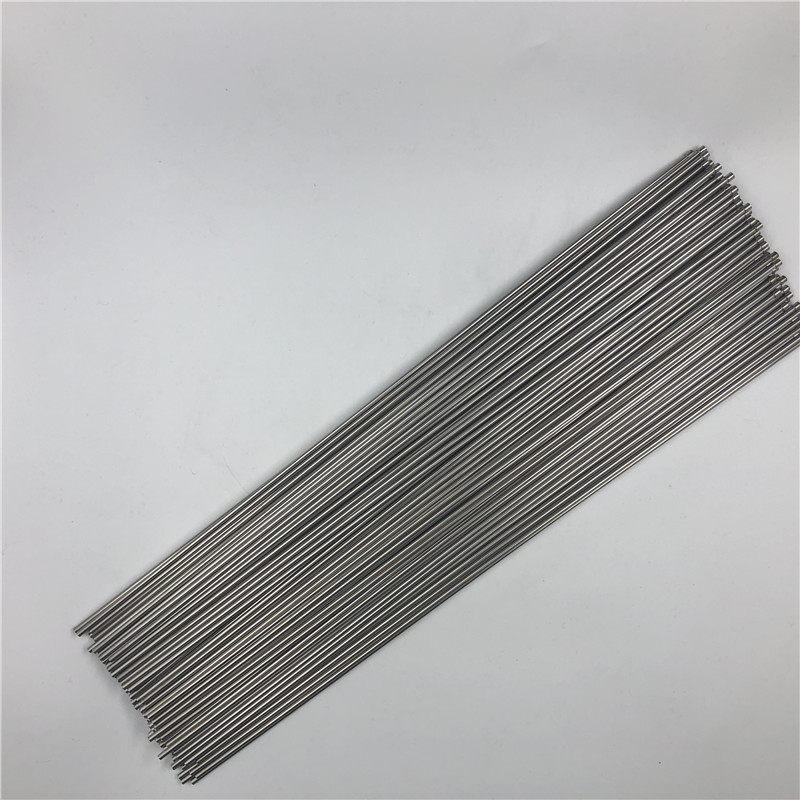

Medical and Small Diameter Hypodermic Tubing
|
Standard
|
ASTM A270, ASTM A554, A249, A269, A312
|
|
Matrial
|
201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%), 301(Ni 5%),
304 (Ni 8%, Cr 18%),316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), 430
|
|
Size
|
OD: 0.4mm--8.0mm WT: 0.05mm - 0.9mm Length: According to
Customer's Requirement
|
|
Common size
|
0.4*0.11, 0.5*0.1, 0.5*0.15, 0.6*0.1, 0.6*0.125, 0.63*0.15, 0.7*0.1, 0.7*0.15, 0.8*0.1, 0 .8*0.125, 0.8*0.15, 0.9*0.1, 0.9*0.15 etc |
|
Surface Finish
|
180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish |
|
Test and Inspection
|
Squash test, extended test, water pressure test, crystal rot test,
heat treatment, NDT
|
|
Application
|
Decoration construction, upholstery, industry instrument
|
Table 1 Tolerance of OD
| Classification | D | Permissible Tolerance | |
| A | B | ||
| H | All Dimensions | ±0.5% or ±0.20 | ±0.75% or ±0.30 |
| T | <40 | ±0.20 | ±0.30 |
| ≥40~<65 | ±0.30 | ±0.40 | |
| ≥65~<90 | ±0.40 | ±0.50 | |
| ≥90~<168.3 | ±0.80 | ±1.00 | |
| ≥168.3~<325 | ±0.75%D | ±1%D | |
| ≥325~<610 | ±0.6%D | ±1%D | |
| ≥610 | ±0.6%D | ±0.7%D or ±10 | |
|
WC SP |
<40 | ±0.15 | ±0.20 |
| ≥40~<60 | ±0.20 | ±0.30 | |
| ≥60~<100 | ±0.30 | ±0.40 | |
| ≥100~<200 | ±0.4%D | ±0.5%D | |
| ≥200 | ±0.5%D | ±0.75%D | |
Table 2 Tolerance of WT
| Nominal WT | Permissible Tolerance |
| ≤0.5 | ±0..10 |
| >0.5~1.0 | ±0.15 |
| >1.0~2.0 | ±0.20 |
| >2.0~<4.0 | ±0.30 |
| ≥4.0 | ±10%S |
|
Applications 1: Medical equipment industry, injection needle tube, puncture needle tube, medical industrial tube. 2: industrial electric heating tube, industrial oil tube 3: temperature sensor tube, sensor tube, barbecue tube, thermometer tube, thermometer tube, instrument tube, thermometer stainless steel tube. 4): pen making pen, core tube, pen tube. 5: All kinds of electronic micro-tubes, optical fiber accessories, light mixer, small diameter stainless steel capillary 6: clock and watch industry, mother-to-child, raw ear pole, watch strap accessories, jewelry punch needle 7: all kinds of antenna tube, automobile tail antenna tube, tie rod antenna tube, stretch pointer, mobile phone stretch antenna tube, micro-antenna tube, portable computer antenna Stainless steel antenna. 8: stainless steel pipes for laser engraving equipment. 9: pipes for fishing utensils, pipes for dropping fishing rods 10: pipes for various dietary industries, pipes for transporting materials |
