Two component mixing/metering Coating machine for Epoxy Resin,Ab Glue,Epoxy Resin Hardener1
3 year ago

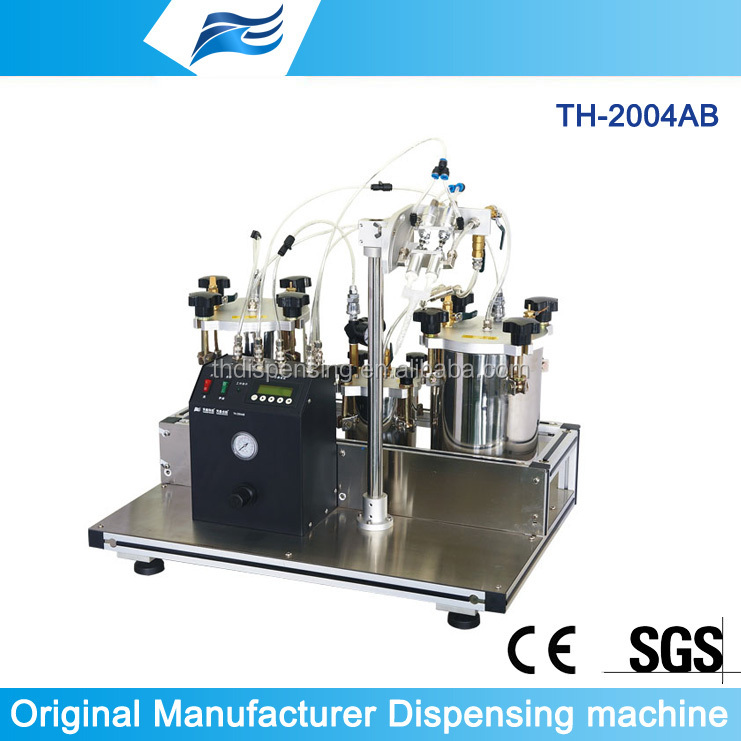

Two component mixing/metering Coating machine for Epoxy Resin,Ab Glue,Epoxy Resin Hardener
This machine good for low less 10000cps viscosity, mixing ratio from 1:1 to 2:1.
| Specifications | |
| ITEM | TH-2004AB1 |
| Standard | CE Approved |
| Control | E-pneumatic |
| Liquid ratio | Automatic |
| Mixing method | static mixer |
| Feed system | 1gallon |
| Cleaning way | automatic cleaning function can select |
| Operating Model | Manual, Timer/cycles |
| Start way | Foot Pedal, Finger Switch |
| Air Output | 0.1bar~7bar |
| Dispensing time | 0.001~99.99S |
| Cycles (interval) time | 0.1~9.9S |
| Repeatability | 0.001S |
| Leak-proof function | valve with Vacuum device |
| Air Input | >5 bar(1bar =1.01972kg/cm² =14.5038psi) |
| Input voltage | 110/220VAC(Internal conversion) |
| Dimensions (WxDxH) mm | 710X420X270mm |
| Weight | 27kgs(with automatic cleaning 58kgs) |
Sales Points/Focus
1.High Capacity cartridge, avoiding high frequency replacement of material
2.Adopted with the TH-700J pneumatic double-liquid valve can interrupt the flow quickly without dripping.
3.Static mixer is used which can mix liquid evenly. It can be cleaned conveniently.
4.The auto-cycling function can reduce labor intensity and increase the production.
5.Digital circuit timing controlling technology was used, and the dispensing time can be set through the digital dial.
6.The pedal /ring/inductive switches can be chosen. 7.Complete with an accessory dispensing kit.
Quality guarantee
We provide 1years warranty of product and shipment with one set fitting to you

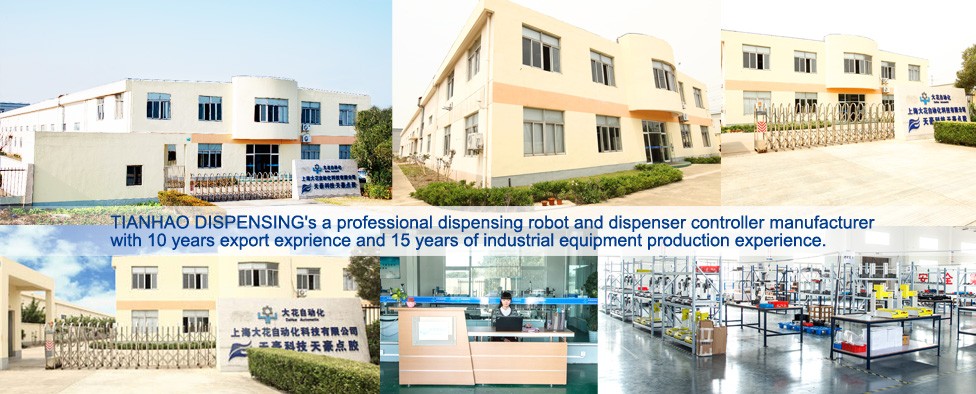

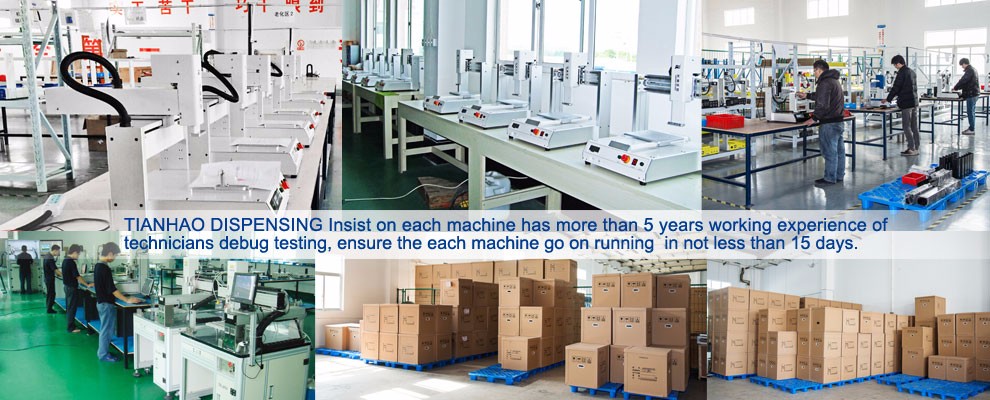

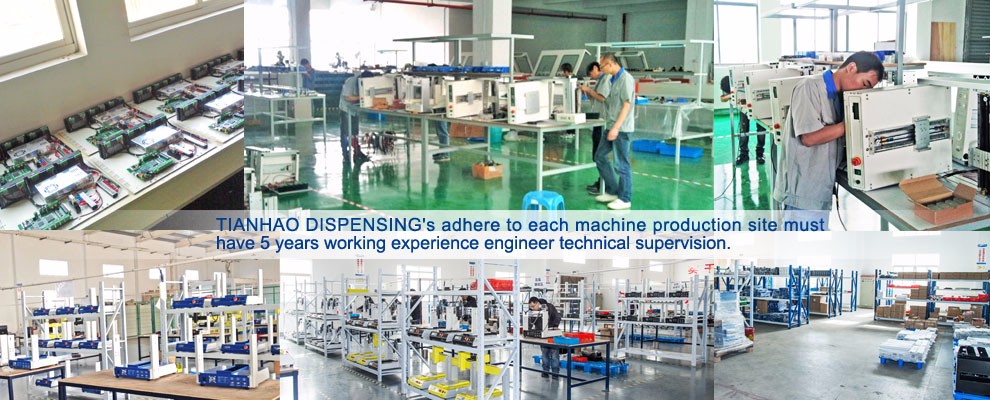

Factory Picture
