ESD PC sheet

HONYESD®antistatic PC sheet Transparent Customized 2-20mm Permanent Atistatic Colored Clear PC Cast Polycarbonate Cleanroom Wall Panel board Sheet it is the ordinary PC board surface through the coating technology to form a layer of anti-static hard film, on the basis of perfectly retaining the inherent physical characteristics of the substrate, so that it has an excellent function of eliminating static electricity at the same time, the surface resistance value is 106 to 109 Fang ohm, can effectively prevent the accumulation of dust, avoid the harm that static electricity may cause

HONYESD®antistatic PC sheet Transparent Feature

1.Light transmission:35~80%

2.Weather resistance: The UV layer on the surface can prevent the corrosion of ultraviolet

3.Sound insulation: The hollow structure has a good sound insulation effect

4.Impact resistance: The impact resistance strength is 250 times of ordinary glass and 30 times of organic glass

5.Fire retardant: The fire retardant is regarded as Grade B2 without fir drop or poisonous gas.

6.Portability:About 1/15 of ordinary glass with the samethickness

7.Temperature resistance: Can be used in -40 to +120

8.Heat insulation: Heat conduction coefficient is lower than ordinary glass with a better heat insulation and preservation effect.

HONYESD®antistatic PC sheet Transparent Application

1. Decoration in landscape gardening and Singular decoration, corridors and pavilions in leisure places.

2. Interior and exterior decorations of commercial building, curtain walls of modern building.

3. Transportation airline, containers, front wind shields of Motorcycles. Airplanes, trains, liners, vehicles, motors boats, submarines and police glass shields.

4. Telephone booths, advertising boards, light boxes and exhibition.

5. Instruments and meters, and military industry.

6. High class indoor decoration, such as walls, windows roofs and screens.

7. Sound-insulation walls in expressways and urban overhead highways.

8. Agricultural greenhouses and raising sheds.

9. Lighting of factory buildings, warehouse and markets.

Remark:

1."+" Tolerable ,   “-”Intolerable , "0"  Depends on the situation

2. The above data is obtained from raw material test data, which is not completely consistent with the performance of the finished product, and the uniqueness of the data is not guaranteed

Anti-static knowledge

Static electricity is a kind of static charge, which usually refers to the positive and negative charges generated on the surface of the object due to the friction between different objects.

Electrostatic discharge: refers to the transfer of electrostatic charge between objects caused by direct contact or electrostatic induction of objects with different electrostatic potentials, usually refers to the phenomenon of piercing the intermediate medium after the electrostatic field capacity reaches a certain level to discharge.

The necessity of plastic anti-static

Plastics are all high-molecular materials, and their surface resistance or volume resistance is greater than the 1012 power without any treatment, which gives the plastic material good insulation properties. And because of this reason, it is very easy to generate static electricity, because plastic and its products are extremely possible in production, handling, contact, separation, friction, collision, and electromagnetic induction. It is even impossible to avoid these occasions. Brings about the factor of static electricity.

Prevention and treatment of plastic static

1. Add a synthetic permanent antistatic material, which can form a fibrous conductive network inside the polymer, which can export the static charge accumulated on the polymer surface, and permanently eliminate the charge on the surface of various polymers to achieve antistatic performance .

2. Directly use conductive plastic to process its products, which is the origin of conductive plastic (resin) production.

ESD standard :

Conductive :         103    104    105

Anti-static :           106    107    108

High anti-static :   109    1010   1011

Insulation :            1012

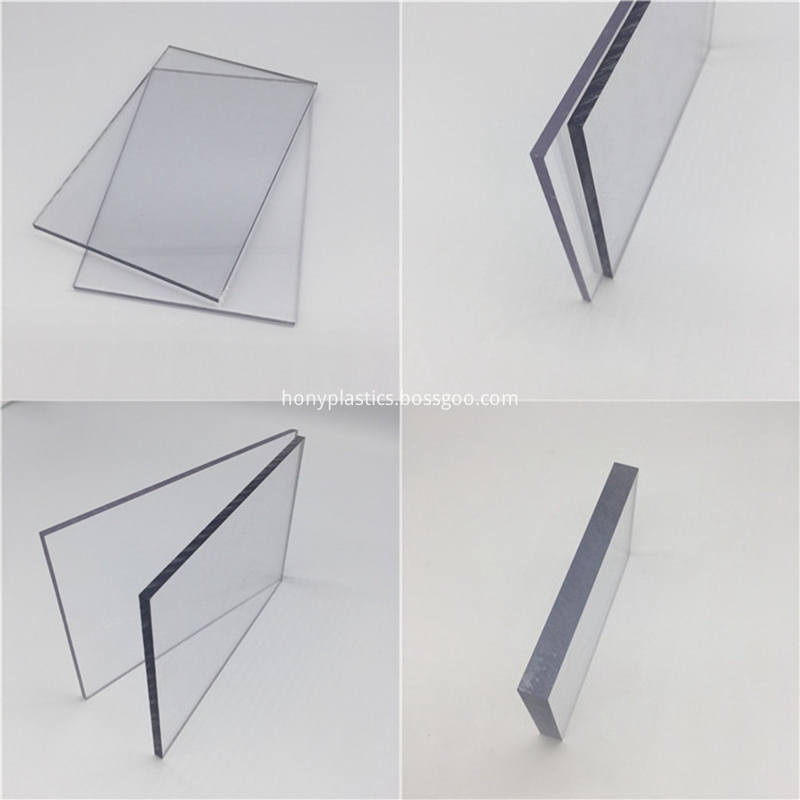

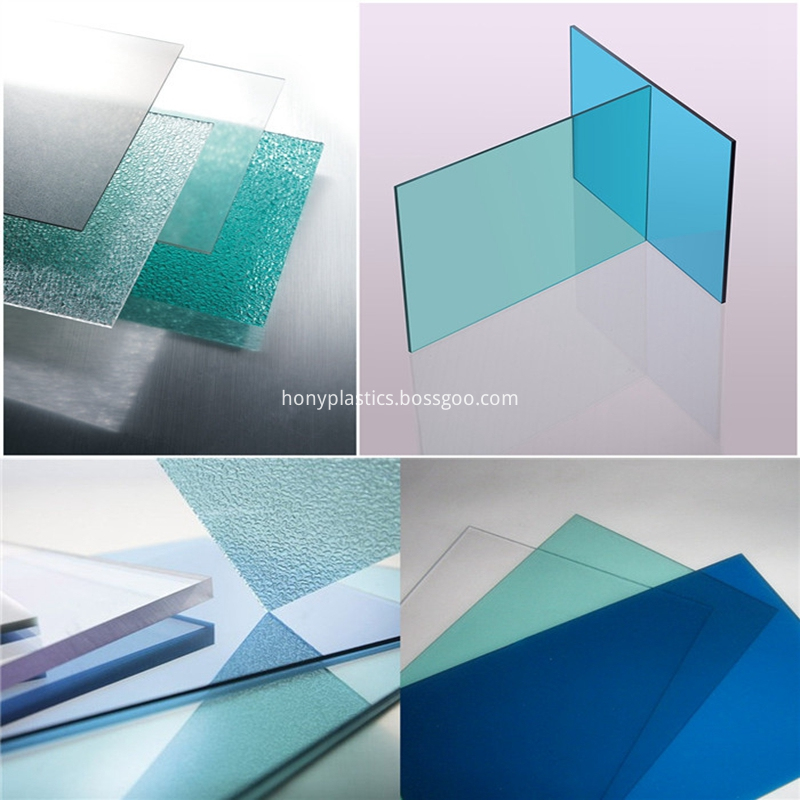

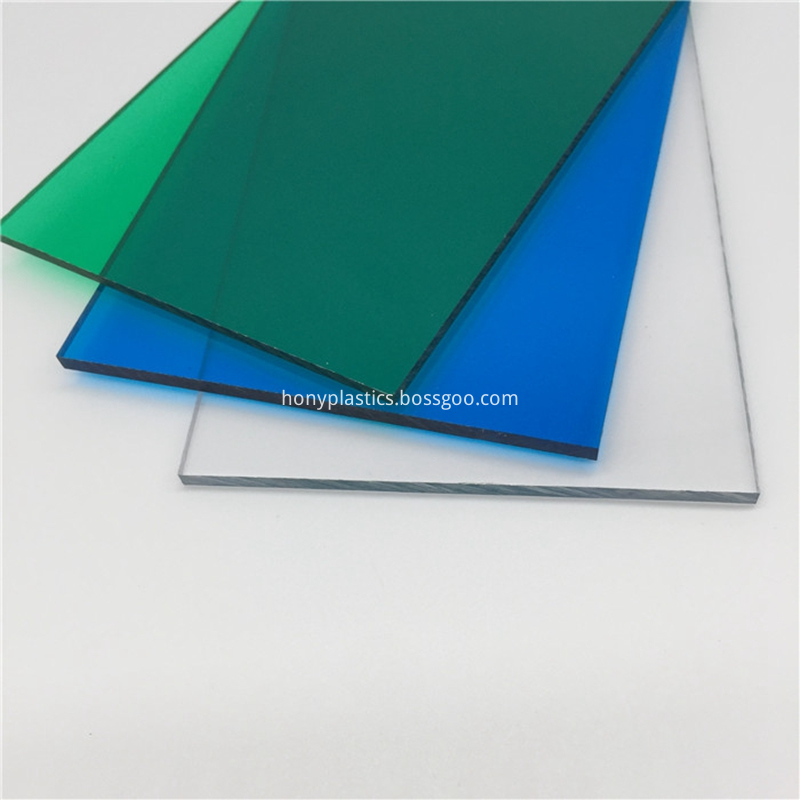

Main product

Application

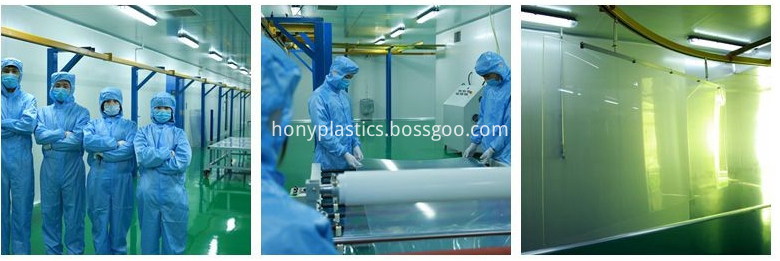

Workshop

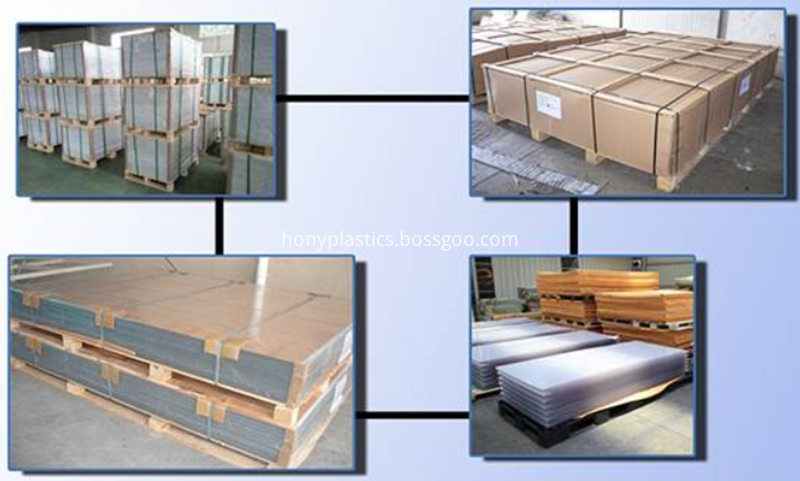

Package
