bakelite sheet price bakelite material supplier
3 year ago
HONY®Phenolic Bakelite sheet is made by applying heat and pressure to phenolic resin impregnated bleached wood pulp paper or not bleached impregnated paper. This kind of industrial laminated is designed for insulating components for electric motor and electronic appliances requiring higher mechanical strength. It own excellent electrical, mechanical properties.Phenolic cotton cloth laminate rod, cotton cloth impregnated with phenolic resin, and laminating them under heat and pressure in round-shap mould. Also know as thermoset. Offer high electrical and mechanical performance, including good electrical insulating properties, high moisture resistance, good dimentional stability, much better machinability than other phenolics.
|
Thickness(mm)
|
Width*Length(mm)
|
||
|
3-100mm
|
1000*2000mm, 1220*2440mm
|
Name: Bakelite Sheet Bakelite Sheet Plate

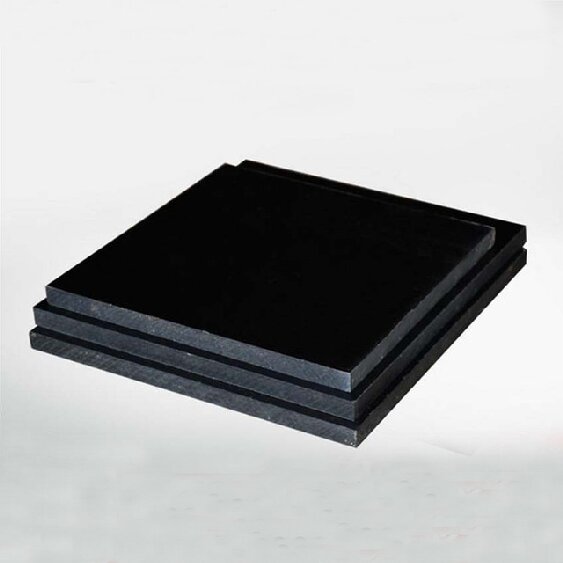

Colors include: Orange, Black
Types: Sheets
| Type | Insulation board |
| Color | Orange, yellow, black |
| Thickness | 1mm-60mm |
| Density | 1.45-1.5g/cm3 |
| Tolerance of thickness | ±0.1 |
| Warping degree | ≤3‰ |
| Adhesive strength | 3600N |
| Size | 1000X2000mm or customers' requirements |
| Product Characteristics |
(1) Non-absorbent, non-conductive (2) High strength , good insulation properties (3) Wear-resisting and thermostable characteristic (4) Excellent electrical, mechanical and processing properties |
| Applications |
(1)Chemical machinery parts, general machinery parts |
Laminate Bakelite Sheet Technical Parameters:
| Properties | Unit | Index Value |
| Flexural strength perpendicular to laminations | MPa | ≥120 |
| Bonding strength (≥10mm in thickness) | N | ≥3200 |
| Impact Strength | KJ/m2 | ≥15 |
| Tensile strength | Mpa | ≥100 |
| Insulation resistance after immersion in water (D-24/23) | Ω | ≥1.0×107 |
| Dielectric strength perpendicular to laminations (in 90±5°C transformer oil, 1 mm in thickness) | MV/m | ≥ 84 |
| Breakdown voltage parallel to laminations(in 20±5°C transformer oil) | KV | ≥ 20 |
| Permittivity (50Hz) | — | — |
| Permittivity (1MHz) | — | ≤5.5 |
| Dissipation factor (50Hz) | — | ≤ |
| Dissipation factor (1MHz) | — | ≤0.05 |
| Density | g/cm3 | 1.30-1.45 |
| Water absorption (D-24/23, 1.6mm in tickness) | mg | ≤182 |

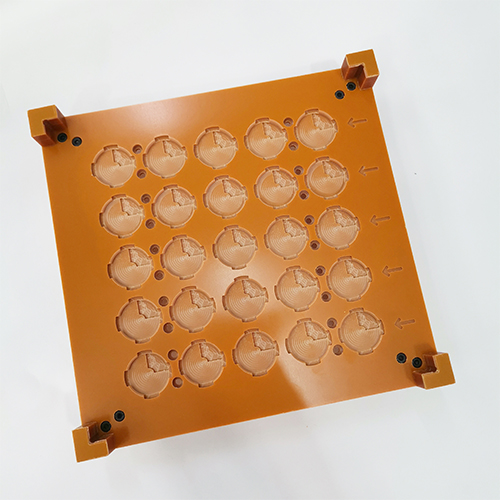

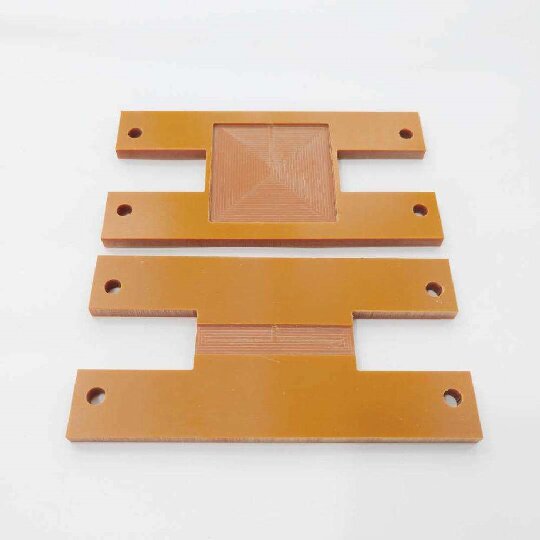

HONY®Phenolic Bakelite sheet Syndyne Paper Bakelite main product
