BS-M-SN-X-1225C

Product Name:

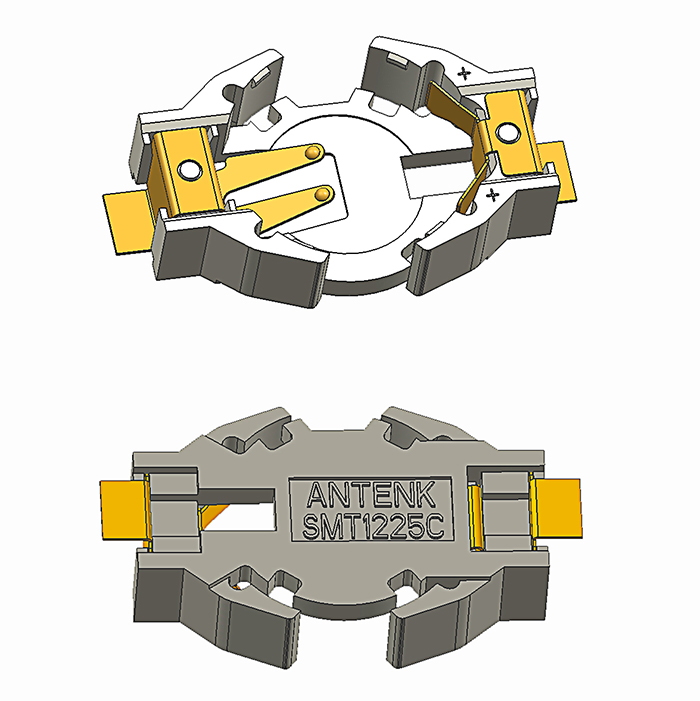

Coin cell holder SMT for 1225C

CR1225 Surface Mount (SMT) Coin Cell Holder

Surface Mount (SMT) CR1225 Holder

CR1225 coin cell battery holders Surface mount Termination Style

CR1225 Holder with Surface Mount leads

SMT Coin cell holder
SMT Battery Coin Cell Holder/Retainer
Category：SMT coin cell battery holder, Coin cell retainer, Button battery holder, CR2032 battery holer, Surface mount coin cell holder

Tags:Battery Holders | Coin Cell Holders | Coin Cell Retainers | Battery Contacts

Description:

Surface mount type with compact body.
Heat resistant glass fiber filled LCP for lead free reflow soldering.
Tape reel packages
Available coin cell types : CR1058 ・CR1220・CR1225・CR1620・CR2032・CR2330 ・CR2477 ・CR2430・CR2450・
Operating temperature: -40℃ ~ +100℃

Specification:

1. Housing: LCP E130i,UL94V-0 UL No:E106764 Colr:Nature
2. Contact: Spring Stainless Steel 301 First Grade,T=0.15mm
High Temp Tin Plated 100-200U'' over Nickel 30u''
3. Working Temp: -40°C To +100°C

How to identify the positive and negative poles of the button battery holder

Usually, the button battery marked with "+" is the positive electrode, and the back is the negative electrode; the shell at the edge of the button battery is also the positive electrode, so most button batteries loaded in the button battery holder have the positive electrode facing up, because the side end of the button battery holder has metal The shrapnel jams the button battery to prevent it from coming out. This is the positive electrode metal shrapnel. The shrapnel will be close to the edge of the positive electrode of the button battery. Due to the large-area electrode contact of the positive electrode metal shrapnel, the stability of the electrode contact is effectively improved; if the button battery is positive and negative If the pole is swapped, the battery can also be stuck, but the battery is short-circuited.

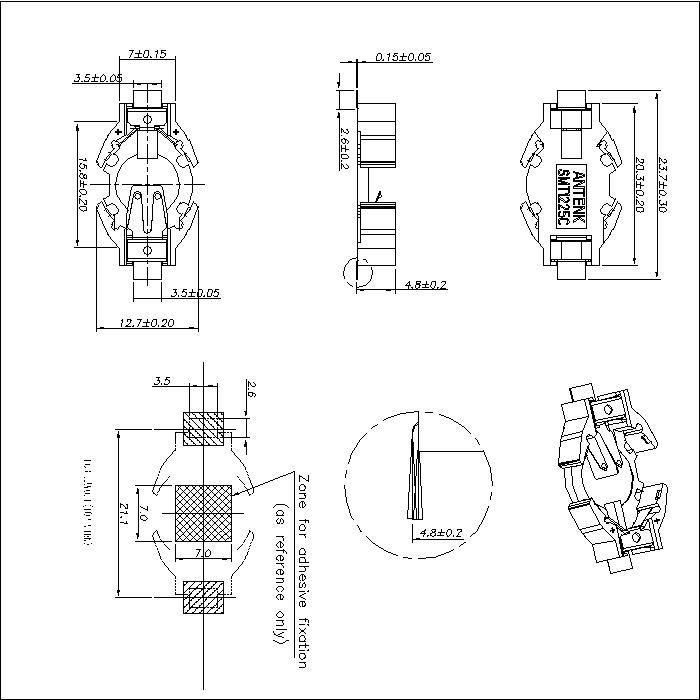

Length: 23.7mm

Width: 12.7mm

Height: 4.5mm

Pin length: 2.6mm

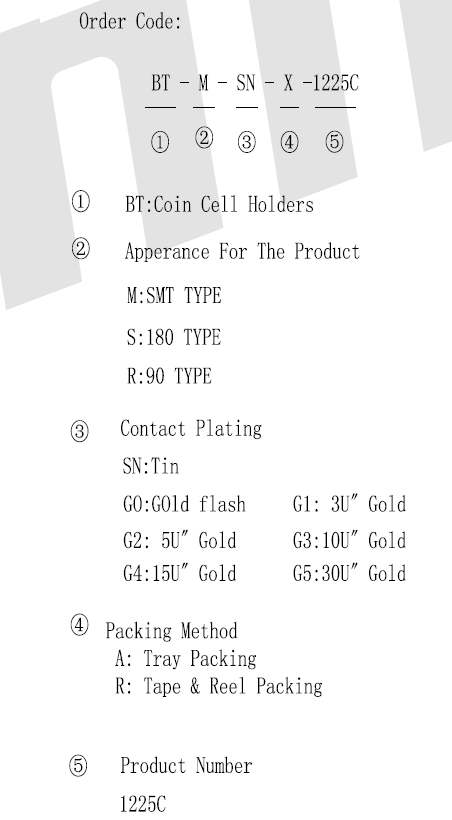

Number 2 apperance for the product: SMT type, we also have 180 and 90 types, when you place order on us, please tell us the apperance of the product you want.

Number 3 contact plating way: tin plate, we also have gold flsh, when you place order on us, please inform us the contact plating way you want.

Number 4 packing method: tray, we also have tape & reel packing, when you place order on us, please tell us the packing way you want.

Number 5 product number: 1225C
