BT-S-GO-A-CR2032F

Product Category:  Battery Holders丨Battery Mounts丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers丨Battery Clips 丨Battery Snaps丨SMD/SMT Coin Cell Battery Holders 丨Button Battery Holder Case Box Case

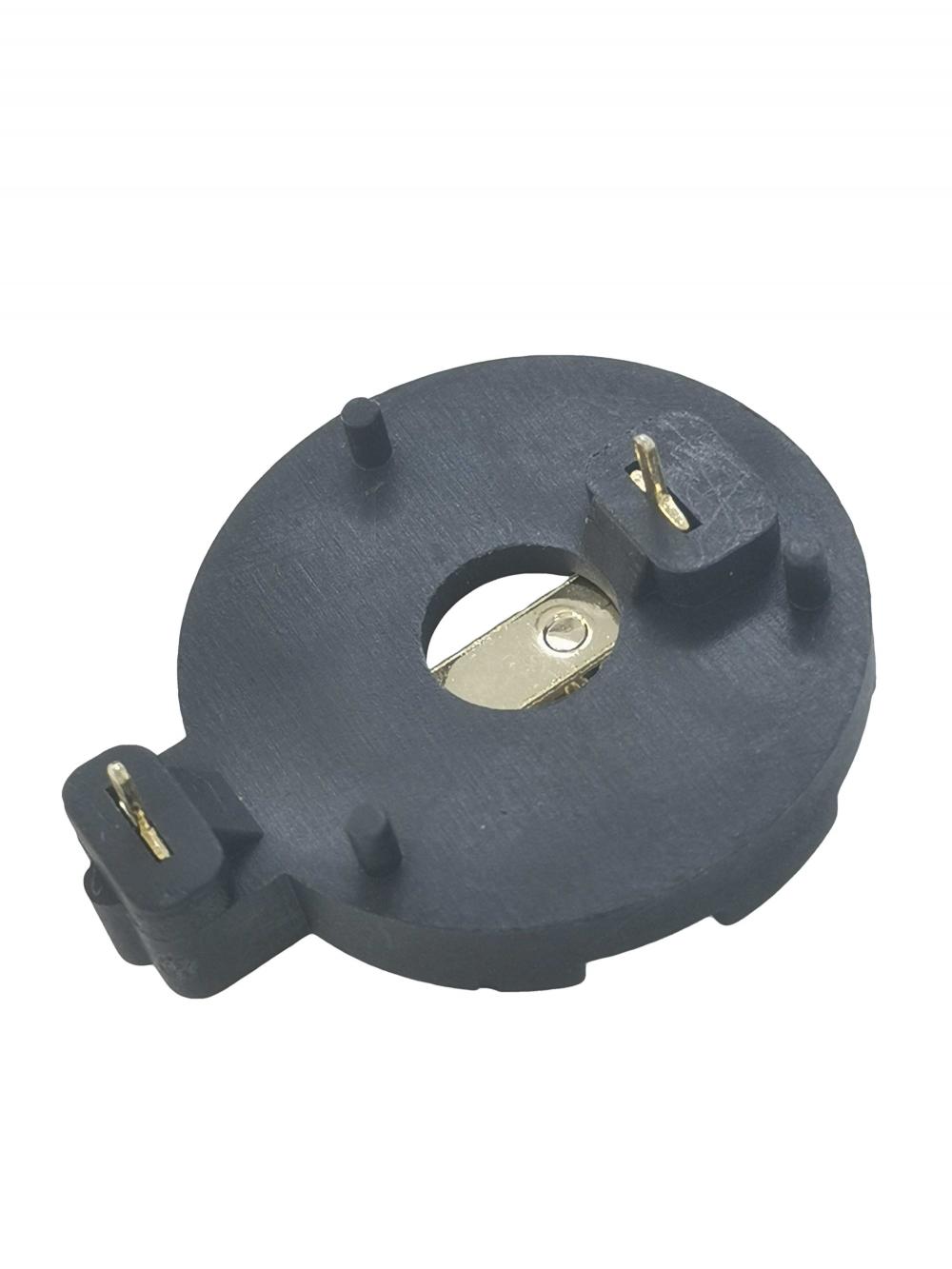

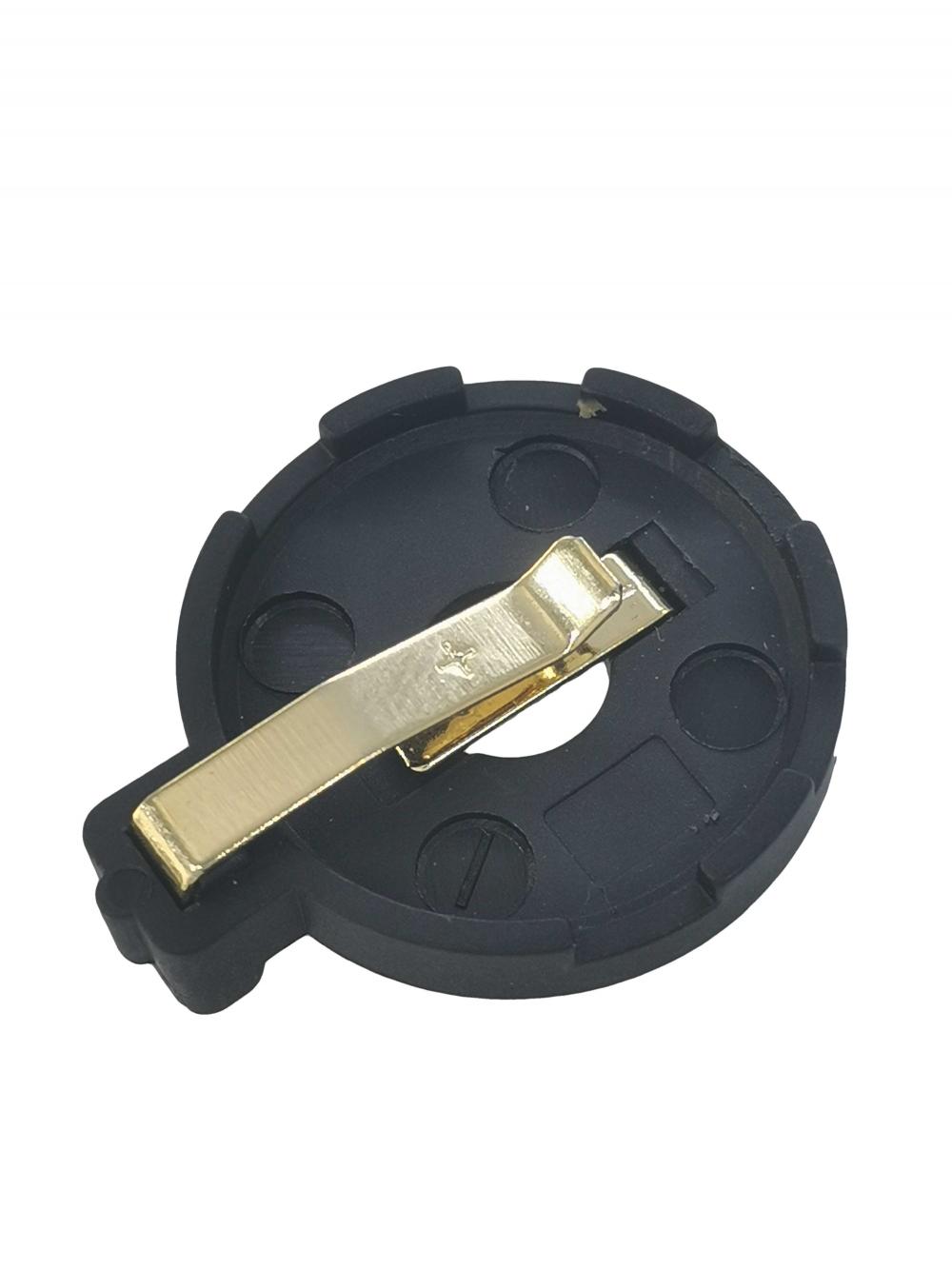

CR2032 SMT Coin Cell Batter Holder Specifications

1.Material:
a.Housing:Thermoplpastic, UL94V-0
b.Contact:Phosphor Bronze,Gold Plated
2.Electric:
a.Contact Resistance:30m ohms Max.
b.Insulation Resistance:1000M Ohms Min.
c.Dielectnic Voltage:500 V AC One Sec Level
d.Operating Temperature:-55℃ To +105℃

SMD Battery Holder for CR2032 Cell Features:

Battery "Pop-In" from top of compartment applications
Finger pressure against leaver will release battery
No tools required for battery changes

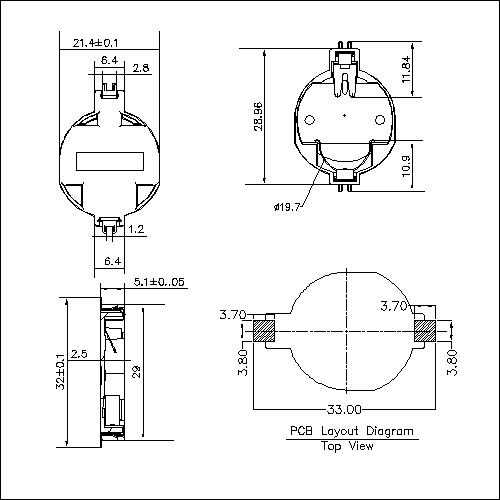

CR2032 Surface Mount Coin/Button Cell Dimensions:

20mm Dia Lithium Coin Cell Install Diagram

 20mm Dia. Cell Holders Coin/Button Cell Holders
is Thru-Hole and Surface Mount available
Battery References Include: BR2016, CR2016, DL2016, BR2020, CL2020, BR2025, CR2025, DL2025, BR2032, CR2032, DL2032, ANSI 5000LC, IEC CR2016

CR2032 Coin Cell Battery Holders Surface Mount Application:

A CR2032 coin cell battery holder is commonly used in a variety of electronic devices, including:
1. Remote controls: Many remote controls use a CR2032 coin cell battery holder to power the device.
2. Calculators: Calculators often use a CR2032 coin cell battery holder to provide power.
3. Watches: Many watches use a CR2032 coin cell battery holder to power the watch.
4. Key fobs: Key fobs for cars and other devices often use a CR2032 coin cell battery holder to provide power.
5. Small electronic toys: Many small electronic toys use a CR2032 coin cell battery holder to power the toy.
6. Medical devices: Some medical devices, such as glucose meters, use a CR2032 coin cell battery holder to provide power.
7. Small LED lights: Some small LED lights, such as those used in bicycle lights or keychain flashlights, use a CR2032 coin cell battery holder to power the light.
Overall, the CR2032 coin cell battery holder is a versatile and widely used component in many electronic devices.
