BT-S-GO-A-CR2032I
3 year ago
Product Description
CATEGORY：SMT coin cell battery holder, Coin cell retainer, Button battery holder, CR2047 battery holer, Surface mount coin cell holder

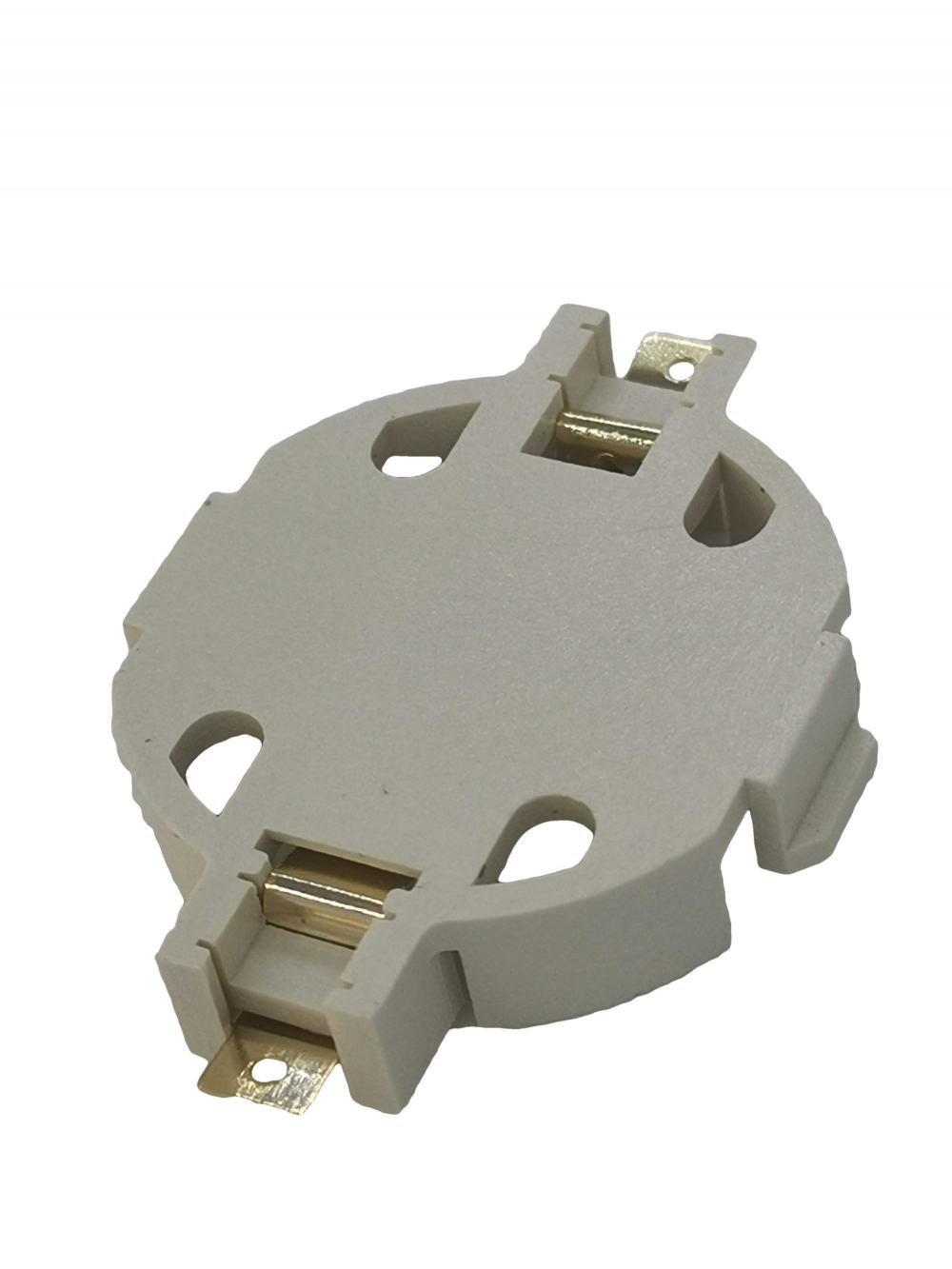

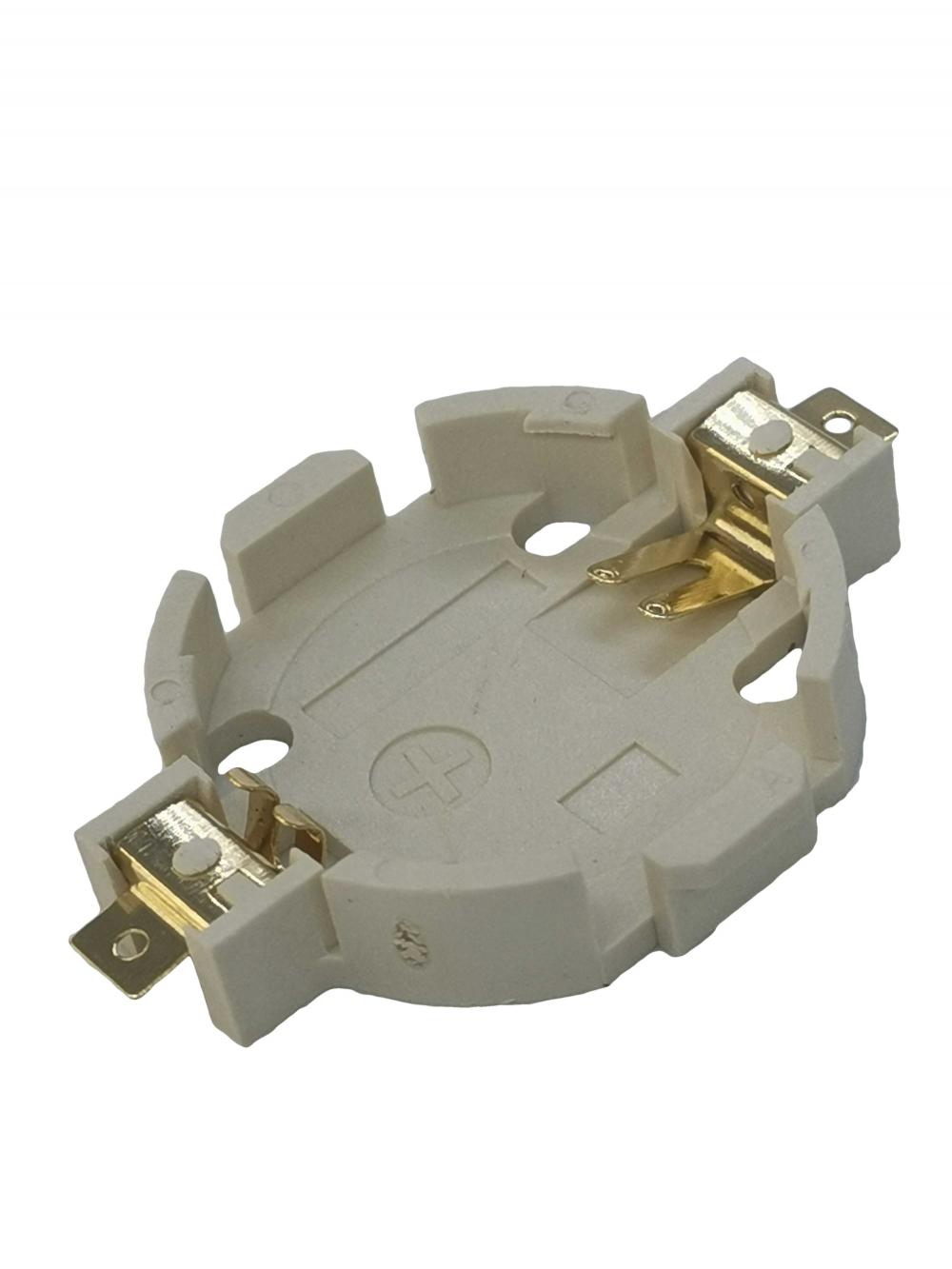

Coin Cell Holders FOR CR2032I Features
Retractable for minimum space requirements. Suitable for automatic cell assembly. SMT brackets. Compatible with most vacuum and mechanical pick & place mounting systems.
These contacts are ideal for automatic assembly in SMT applications
Reliable spring tension with optimal contact and low resistance
Compatible with all wave and reflow operations
Verification of the solder points is facilitated by the placement outside the bracket.
Ultra-Low Profile Surface Mount 2032 Coin Cell Holders Specification
Product
Name
SMT Holder for 2032 Cell
Battery Holder for CR2032
SMT holders for 2032 coin cell batteries
SMT SMD Coin Cell CR2032 Battery Holder
BATT HOLDER COIN 20MM 1 CELL SMD
High-Performance Polarized PCB Plastic Battery Holders
20mm Coin Cell Holders
Lithium Coin Cell Battery Holders
Button cell holder for 1x Ø 20mm
Button Cell Holder 1x CR 2032 Horizontal Surface Mount SMD
SMT (Auto-In/Ultra-Low) Holder for 2032 Cell
Description
Battery Holder (Open) Coin, 20.0mm 1 Cell SMD (SMT) Tab
Category
Battery Products
Battery Holders, Clips, Contacts
P/N
BT-M-SN-R-CR2032I
Package
Bulk Tray or Tape&Reel
Manufacturer
ATKCONN ELECTRONICS CO.,LTD
Battery Type, Function
Coin Cell, Holder
Style
Holder (Open)
Battery Cell Size
Coin, 20.0mm
Number of Cells
1
Battery Series
2032
Mounting Type
PCB, Surface Mount
Termination Style
SMD (SMT) Tab
Height Above Board
0.205" (5.20mm)
Operating Temperature
-50°C ~ 145°C
1, Material:
a. Housing:LCP UL94V-0
b. Contact: Phosphor Bronze(Surface Plating:Sn=100u" ~120u")See Ordering Information
2, Electric:
a. Contact Resistiance:30 Milliohms Max
b. Insulation Resistance: 1000 MEGA OHMS Min
c. Dielectric Voltage:500V AC One Sea Level
d. Operat ing Temperature:- -55° To 105°
Ultra Low Profile Design
Mounts partially thru PCB
2mm Height above PCB surface
Built In Stabilization tabs for added mounting security
Available on Tape & Reel, Part number 1057TR
SMT (Auto-In/Ultra-Low) Holder for 2032 Cell Application
1. It is used to load the battery, usually on the PCB board, for the power supply of electrical devices.
2. Easy to disassemble.
3. Fixed structure to cope with impact and vibration and reduce physical damage.

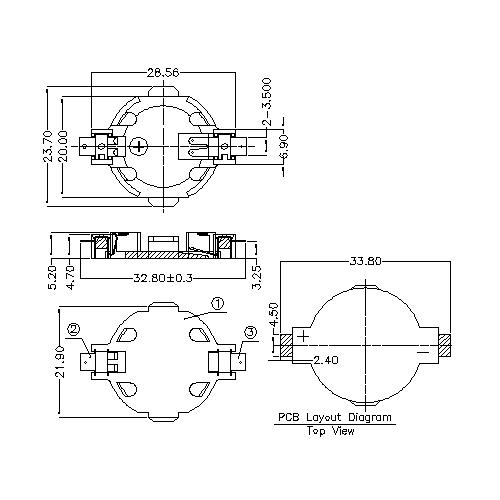

2032 SMD battery holder Dimensions
