OPERATION CAUTIONS

1. Before using the universal jet mill, check whether all fasteners of the machine are tightened and whether the belt is tightened.

2. The running direction of the spindle must conform to the direction of the arrow shown on the protective cover, otherwise the machine will be damaged and personal injury may be caused.

3. Check whether the electric appliance of the mill is complete.

4. Check whether there are metal and other hard sundry objects in the crushing room of the mill, otherwise it will break the dao tool and affect the operation of the machine.

5. The purity of the material must be checked before crushing, and no hard metal sundry is allowed to mix in, so as not to damage the dao tool or cause combustion and other accidents.

The oil cup of the crusher should be frequently injected with lubricating oil to ensure the normal operation of the machine.

7. Stop feeding before shutdown, if not continue to use, to remove the machine left behind.

8. Regularly check whether the screen is damaged. If there is damage, it should be replaced immediately.

9. When using, if the crusher will have small vibration, be sure to tighten the handle connecting the cover to avoid accidents.

INTRODUCTION

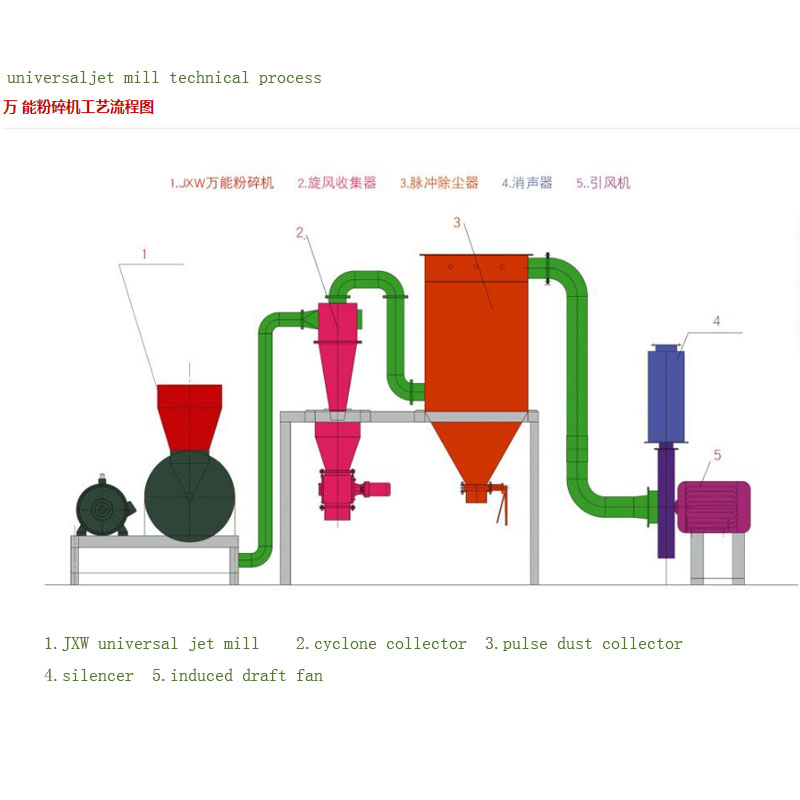

The universal jet mill uses the high speed relative movement of the movable tooth disk and the fixed tooth disk to crush the crushed object through the comprehensive action of tooth impact, friction and impact between materials. The machine has simple structure, strong, smooth operation and good crushing effect. The crushed objects can be directly discharged from the grinding cavity of the main engine. The strength can be obtained by replacing the mesh screen with different aperture. All the inner wall of the casing is machineed to achieve smooth surface, changing the phenomenon of rough inner wall and powder accumulation in the previous model, so that the production of drugs, food and chemical industry is more in line with the national standard and meet the requirements of GMP.

Universal crusher is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. It can process hard and hard materials, including plastic, copper wire, Chinese herbal medicine, rubber, etc. It can also be used as the supporting equipment before the processing of micro crusher and ultra-micro crusher. Its powder collecting chamber adopts fully enclosed noise reduction structure, which can effectively reduce the working noise. The machine is equipped with a cooling device to reduce the temperature and work more smoothly. The motor speed of the machine is 5000 RPM. The machine is made of lcr18Ni9Ti stainless steel material, with strong wear and corrosion resistance characteristics, suitable for processing advanced and corrosive materials. The machine adopts the impact crushing method, so that the material into the crushing chamber, by the high-speed rotary six movable hammer impact, through the gear ring and the material collision with each other and crushed, crushed material with the help of air flow, through the sieve into the powder bag, leaving no residue. It has the advantages of high efficiency, low noise, reliable work performance and product quality, safe operation, drug hygiene and low loss.
