Product details

Pneumatic hot stamping machine //Usage and characters

Samples

168

Technical data

Gilding - paper, leather, wood, plastic,
Baked - wood products, baked painting, gift box packaging;
Embossing - paper, leather, cloth.
Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
Pneumatic drive, pressure large.

Paper Gilding, Leather Impression, Wood ware Baking
Paper Concave-convex embossing, Cloth hot stamping,
Plastics Bronzing
Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
Woodiness objects baking-burns and Impress;
Leather bronzing and Molding;
Paper products concavo indentation.
Graduated disc of clock bronzing.

Pneumatic hot stamping Machine //Parameter

H-TC1520

Hot plate area:150× 200 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1200W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC1927

Hot plate area:190 × 270 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1200W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC

H-TC2129

Hot plate area:210×290 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC .

H-TC3025

Hot plate area:300 × 250 mm
Working table area:320 ×400mm
Max printing pressure:2,000-3000 Kg
Up and down distance:45mm
Heat wattage:1000W
Foil in feed: Motor Drive
Temperature adjustment:0-300oC

Pneumatic hot stamping machine //Advantage

Table can be pulled into and pulled out the pick and place of convenience products;
Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Table lifting screw adjustment, simple and convenient;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace

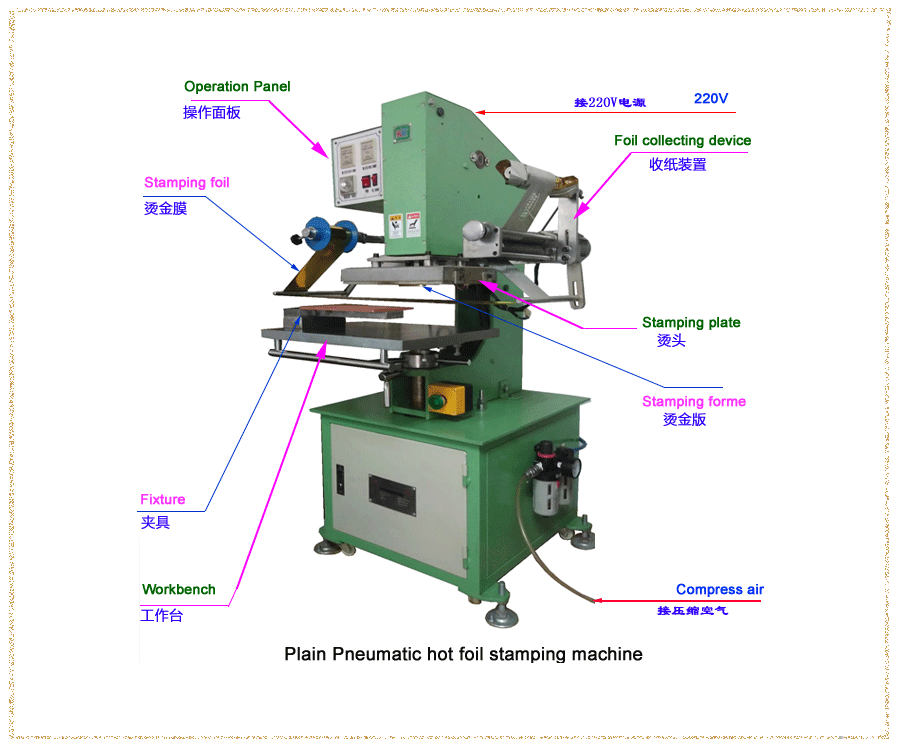

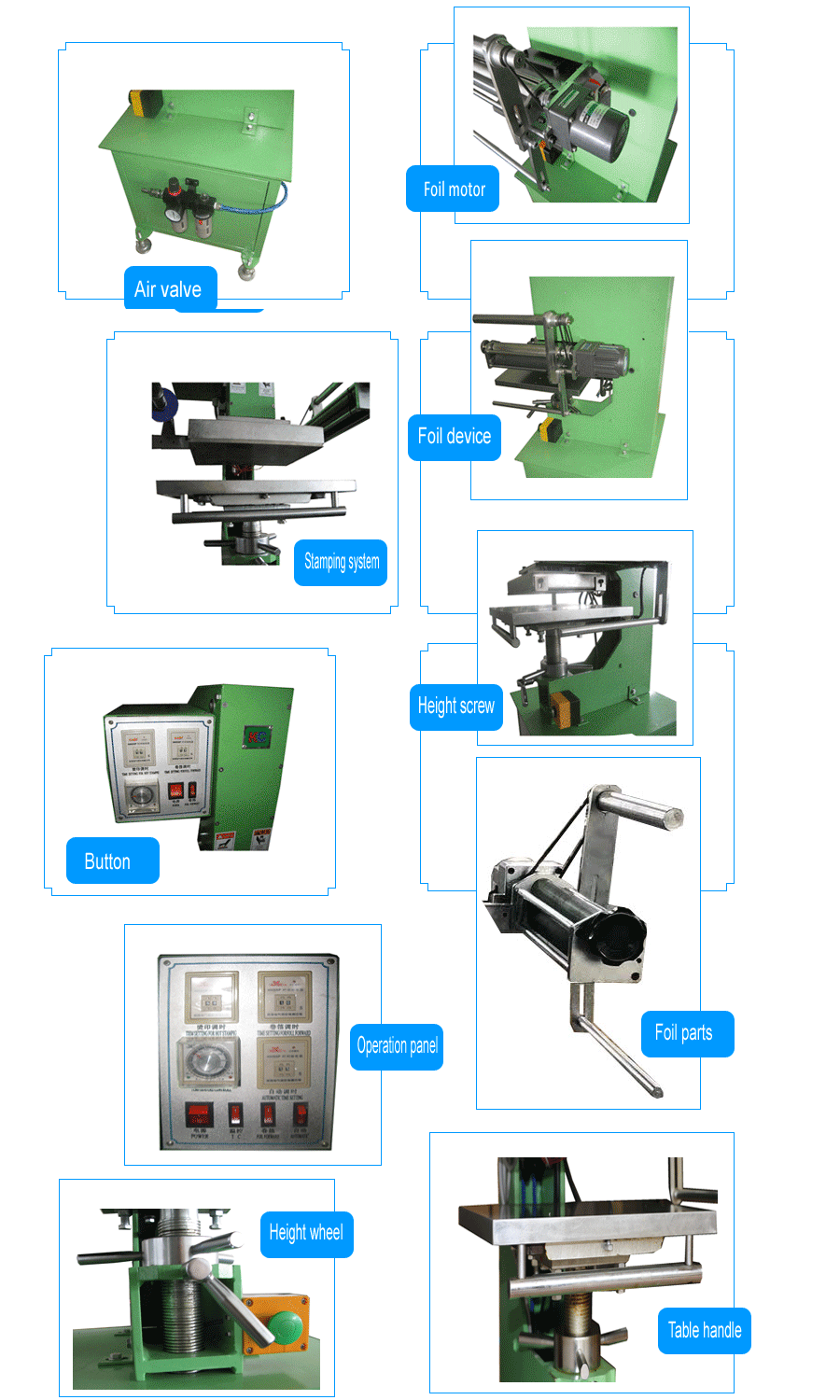

Structure

Data

Catalogue
