Screen printing machine + UV dryer.mp4
4 year agoSlant-arm silk screen printing machine with UV curing system
Slant-arm silk screen printing machine//Parameters
Technical parameters |
S-JY6090PV |
S-JY70100PV |
1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 560 KG; 4.Max printing area:600×900 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 900×1200 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 700×1000 mm |
1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 65 0KG; 4.Max printing area:700×1000 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 1000×1300 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 800×1100 mm |
|
Factory |
|
|
Package parameters |
|
|
H.S.CODE |
8443198000 |
Flat UV Drying Machine//Usage and characters |
||
Application fields |
|
|
Flat UV Drying Machine//Parameter |
||
Technical parameters |
M-50250UVC |
M-80250UVC |
|
|
|
Works supply |
|
|
Package list |
Outer Dimension: 2.500×0.560×1.370m; Net weight: 296KG |
|
Package Dimension: 2.58×0.85×1.35m; Gross weight: 379KG; CBM:3.364945 |
Package Dimension: 2.670×1.10×1.420m; Gross weight: 395KG; CBM:4.17054 |
|
H.S.Code |
8443198000 |
|
Certificate |
CE |
|
Flat UV Curing Machine//Advantage |
||
Function |
|

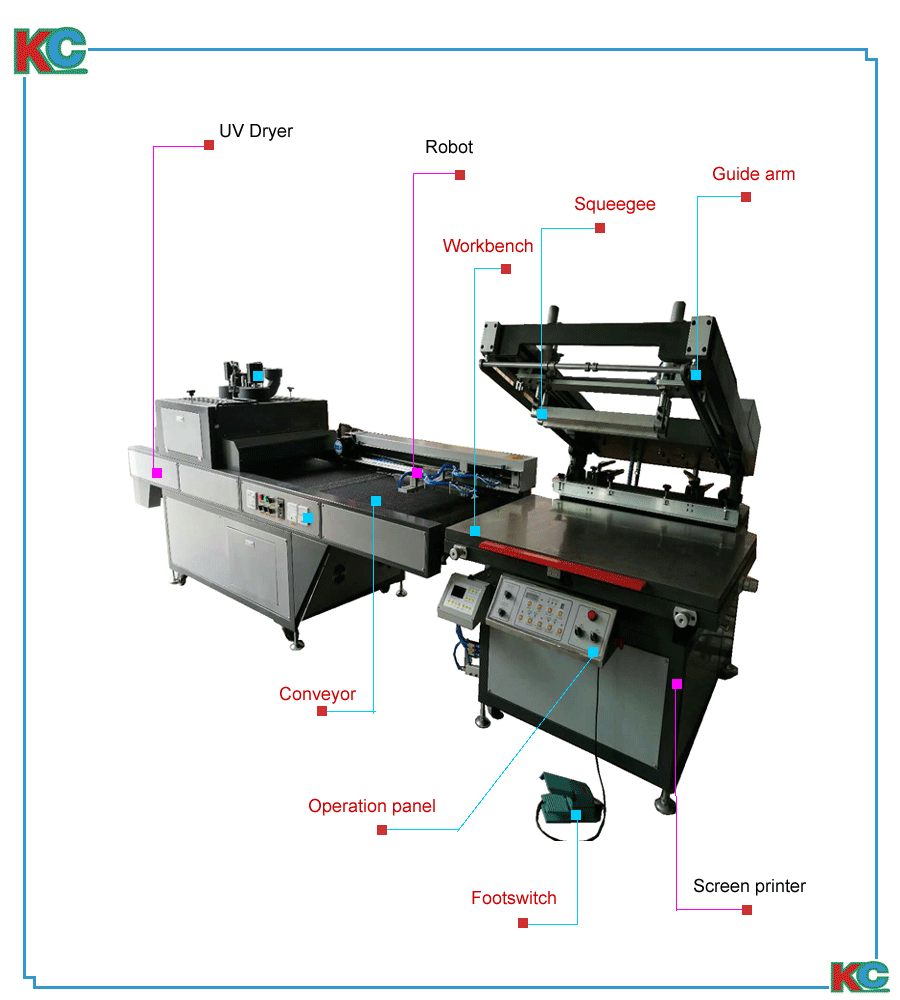

Machine structure
Paper packaging partial UV screen printing production line
• The structure adopts a swing arm structure;
• The workbench has up and down, left and right, front and back fine-tuning devices;
• The printing drive uses a motor drive, and the lifting of the inclined arm is driven by a motor, which can be frequency-controlled.
Unloading robot
• Automatically complete the grabbing and placement of materials;
• Accurately adjust the unloading position and angle to ensure the accurate placement of materials and improve the accuracy and consistency of production.
• It has the characteristics of stable structure and high reliability. It ensures stable operation through various components and can be used for unloading of various dangerous objects.
UV curing machine
• The paper removed from the screen printer by the robot is UV-cured.
• It has the characteristics of instant drying, which can greatly shorten the coating process time and improve production efficiency.
• It can make the printed surface achieve high gloss, friction resistance and solvent resistance.
Integrated paper packaging partial UV screen printing production line
• It integrates oblique arm flat screen printer, feeding manipulator, UV light curing machine and other equipment to realize the automated production of partial UV screen printing of paper packaging.
• High production efficiency, various equipment work together to quickly complete the printing, feeding and curing of paper packaging, improve production efficiency and product quality.
• Good printing quality, through precise positioning and control, to ensure that the pattern of partial UV screen printing is clear, accurate and colorful.
• Save labor costs, reduce manual operation links, and reduce labor intensity and labor costs.
