- High Power IR LED -

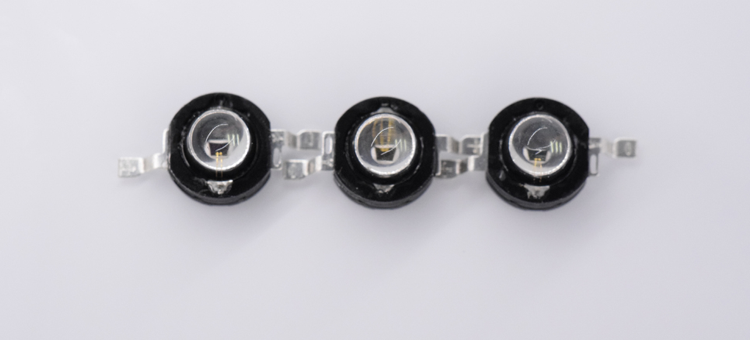

8080IRC-85L28I800-ES-60D
If those through-hole LED cannot work for your application. Please check this 850nm LED 3W SMD LED. This 850nm LED got a high power and strong radiation. It can handle 1A working current in this high power IR LED. High power IR LED can be packaged with different SMD LED case. As we know, the LED will produce extra heating when it's working. High temperature working situation will reduce the lifespan of LED chip and lead to high lighting decay, in order to keep the long life solid state reliability and the radiation, it will be better that we package the high power LED with some SMD LED case that have high performance in heat dispatching.
|
- Size: 8*H5.4mm - LED Chip Size:28mil
- Color: IR LED - Lens type: Clear - Chip brand: Epistar |
- Different color are available - Warranty: 5 Years - Different wavelength are available
- RoHS, REACH, EN62471
- Uniform light output |
- Low Power consumption - Long life-solid state reliability - Anti UV epoxy resin package - High temperature resistance |

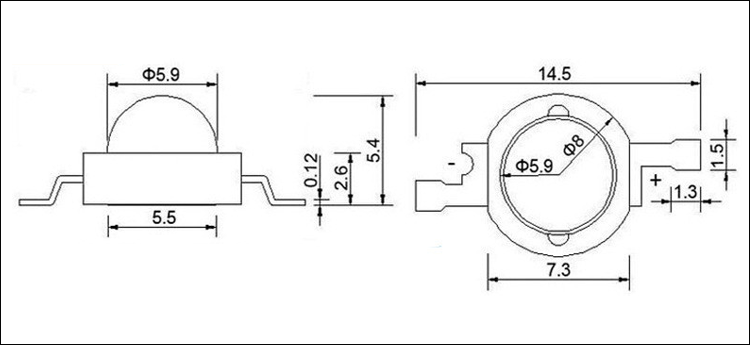

- Dimension Parameters -
*This hihg power SMD LED case are also available in Green SMD LED, UV LED, Blue SMD LED, Yellow LED, Amber *
- Emitting Color -
- Electrical Parameters -
|
Parameter |
Symbol |
Rating |
|
Power Dissipation |
Pd |
1000mw |
|
Pulse Forward Current |
IFP |
1500mA |
|
Forward Current |
IF |
800mA |
|
Reverse Voltage |
VR |
5V |
|
Junction Temperature |
Tj |
115°C |
|
Operating Tempertature |
Topr |
-40 - +80°C |
|
Storage Tempertature |
Tstg |
-40 - +100°C |
|
Soldering Temperature |
Tsol |
260°C |
|
Electro-Static-Discharge(HBM) |
ESD |
3000v |
|
Warranty |
Time |
5Years |
|
Antistatic bag |
Piece |
1000Bag |
|
*Pulse Forward Current Condition:Duty 1% and Pulse Width=10us. |
||
|
*Soldering Condition:Soldering condition must be completed with 3 seconds at 260°C |
||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Test Condition |
|
|
Forward Voltage |
VF |
1.5 |
|
1.9 |
V |
IF=300mA |
|
| 1.6 |
2 |
2.5 |
V |
IF=800mA |
|||
|
|
4.5 |
V |
IFP=1500mA |
||||
|
Radiant Intensitye |
Ee |
|
200 |
230 |
mw/sr |
IF=300mA |
|
|
|
450 |
650 |
IF=800mA |
||||
|
|
1100 |
|
IFP=1500mA |
||||
|
Peak Wavelength |
λP |
840 |
850 |
860 |
nm |
IF=20mA |
|
|
Half Width |
Dl |
|
25 |
|
nm |
IF=20mA |
|
|
Viewing Half Angle |
2q1/2 |
|
±22 |
|
deg |
IF=20mA |
|
|
Reverse Current |
IR |
|
|
5 |
uA |
VR=5V |
|
|
*Luminous Intensity is measured by ZWL600. |
|||||||
|
*2q1/2 is the off-axis angle at which the luminous intensity is half the axial luminous intensity. |
|||||||
|
*lD is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device. |
|||||||

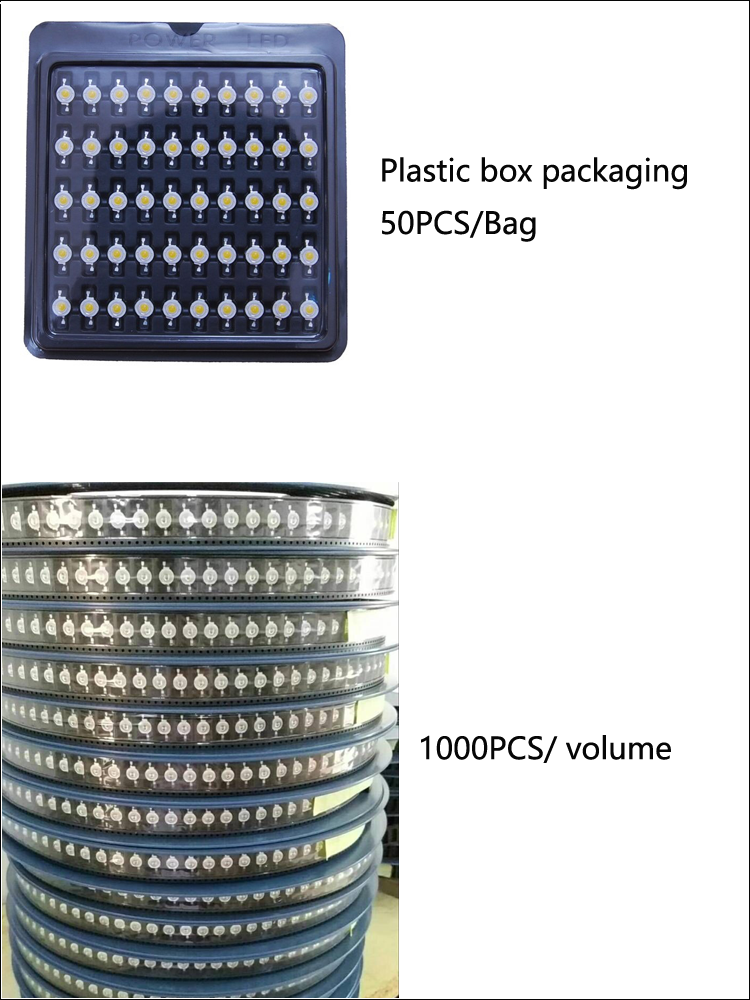

- Packing -
- Application -
- Related LED -
- Production -
- Attention -
