GPO-3 glass reinforced thermoset polyester sheets

HONY®white fibre reinforced plastics gpo-3 polyester resin composite sheet GPO3 Manufacture White/Red GPO-3 UPGM203 Polyester Glass Mat Laminate Sheet for Sales Electrical Insulation: GPO3 has good electrical property under high humidity and high mechanical property under medium temperature, fire retardant property, good arc resistance and tracking resistance. Mechanical Strength: It can be machined, punched, drilled, milled, sawn, sanded, sheared or routed. Assembly by bonding, metal screws or rivets are also possible.

Feature

(1)Good electronic performance under high temperature,good performance for anti leakage of electronic

(2)Arc resistence could reach more than 180°C

(3)flame-retardant grade could reach 94-V0, thermal endurance class could reach F grade(More than 160°C)

(4)It is the advance retardant ,anti-impact and anti corrosion material in these recent years

Electrical Insulation: GPO3 has good electrical property under high humidity and high mechanical property under medium temperature, fire retardant property, good arc resistance and tracking resistance.

Mechanical Strength: It can be machined, punched, drilled, milled, sawn, sanded, sheared or routed. Assembly by bonding, metal screws or rivets are also possible.

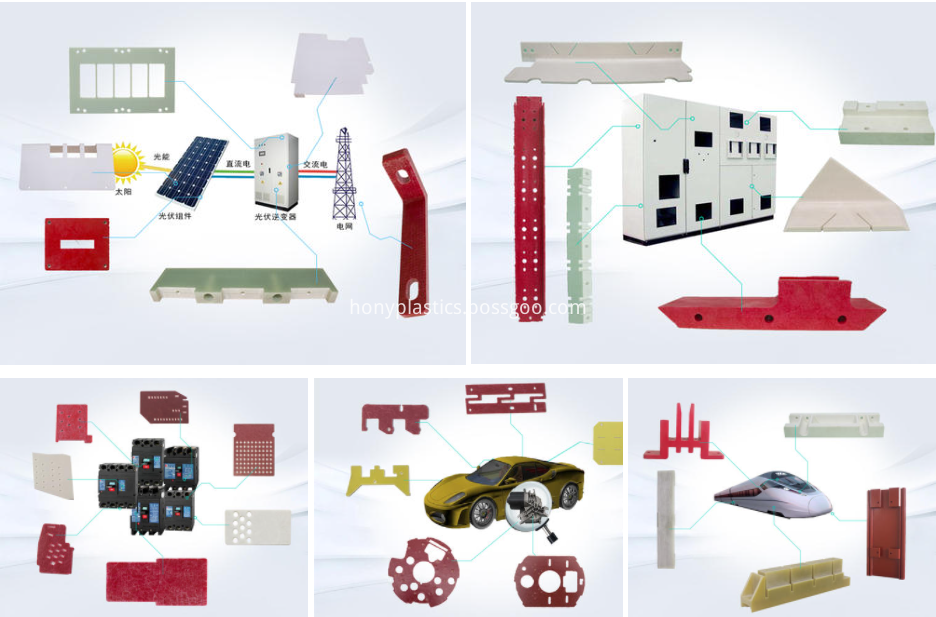

GPO3 Application

1.Phaes and end barriers to gpo-3 red fibre reinforced plastics

2.Insulating supports ,bus bar supports

3.Mounting panels in switch gears ,transformers

4.Antenna buses ,spacers  andSeparator system parts

5.Power supply: Medium voltage inverter, High Voltage Switchgear and other high-quality primary insulation material for Columns, beams, trunking, etc.

6.Breaker: Safety shutter, security shutters, space liner, clapboard, arc interrupter compartment panels

7.Electric motor: Motor armature parts , wedge stator fixed gaskets, shims, carbon brush holder, etc

8.Arcresistant structures: Interrupter cover, arc tube, arc across the board and various central parts

9.Where high heat ,mechanical stability and electrically isolative conditions are needed

HONY®GPO-3 fiberglass reinforced insulation sheet Properties Data Sheet

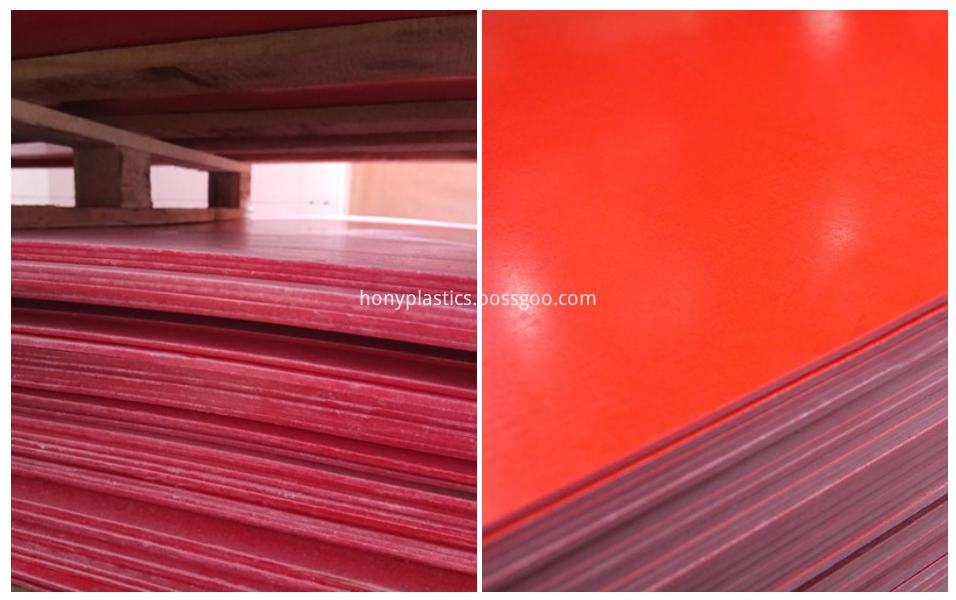

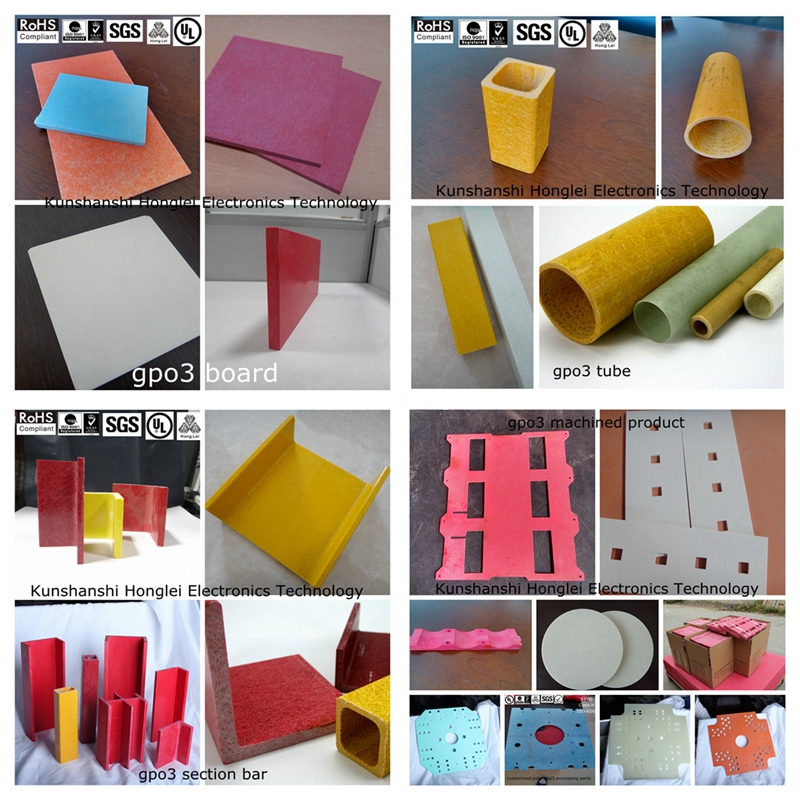

Main production

Partner

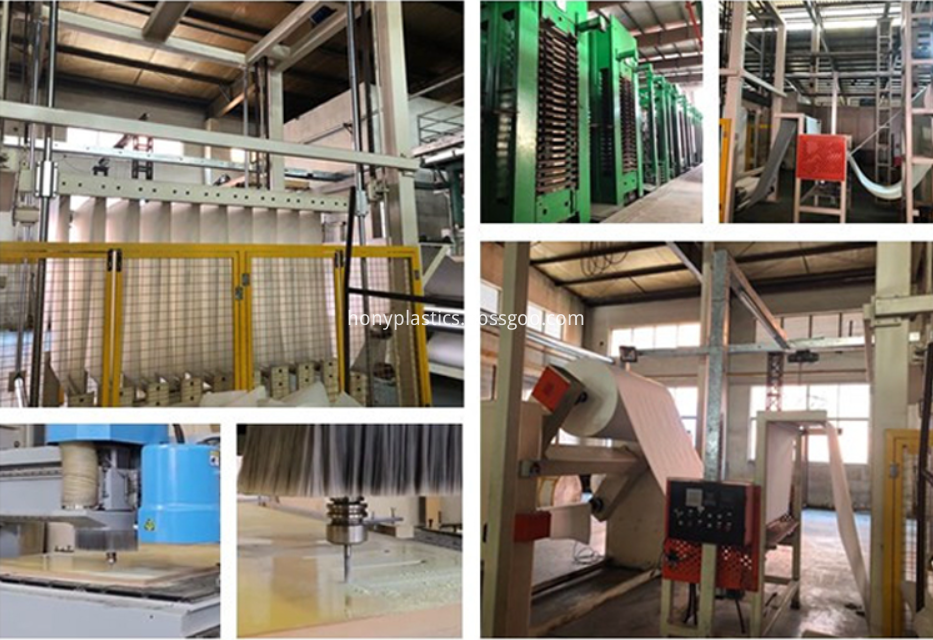

Workshop

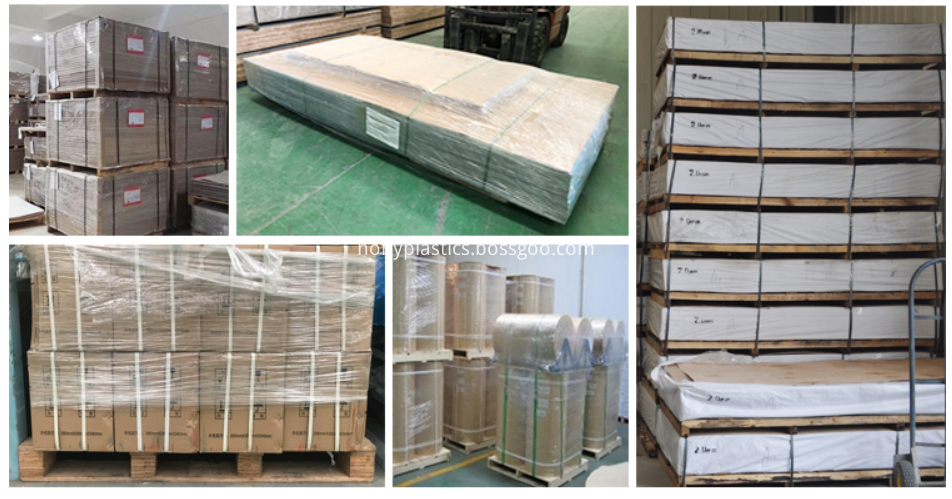

Package

Service

1.GP03 specical size can be cut  and customized.

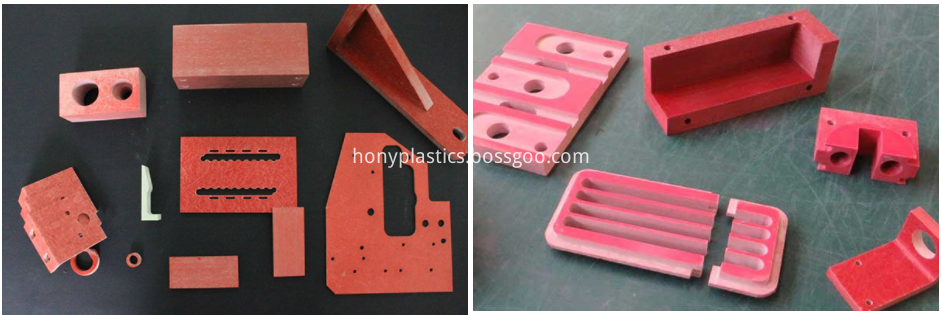

2.drilling, grinding and processing is available to GPO3       CAD or 3D Drawings

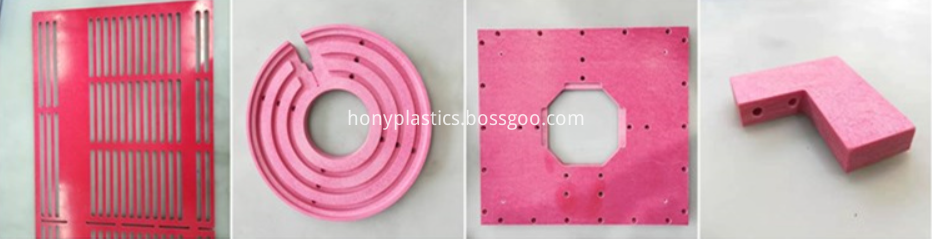

3.customized GPO3 product can be provided
