UNPP020UC6 12 ports cat6 patch panel

2 year ago
54 0
Product details

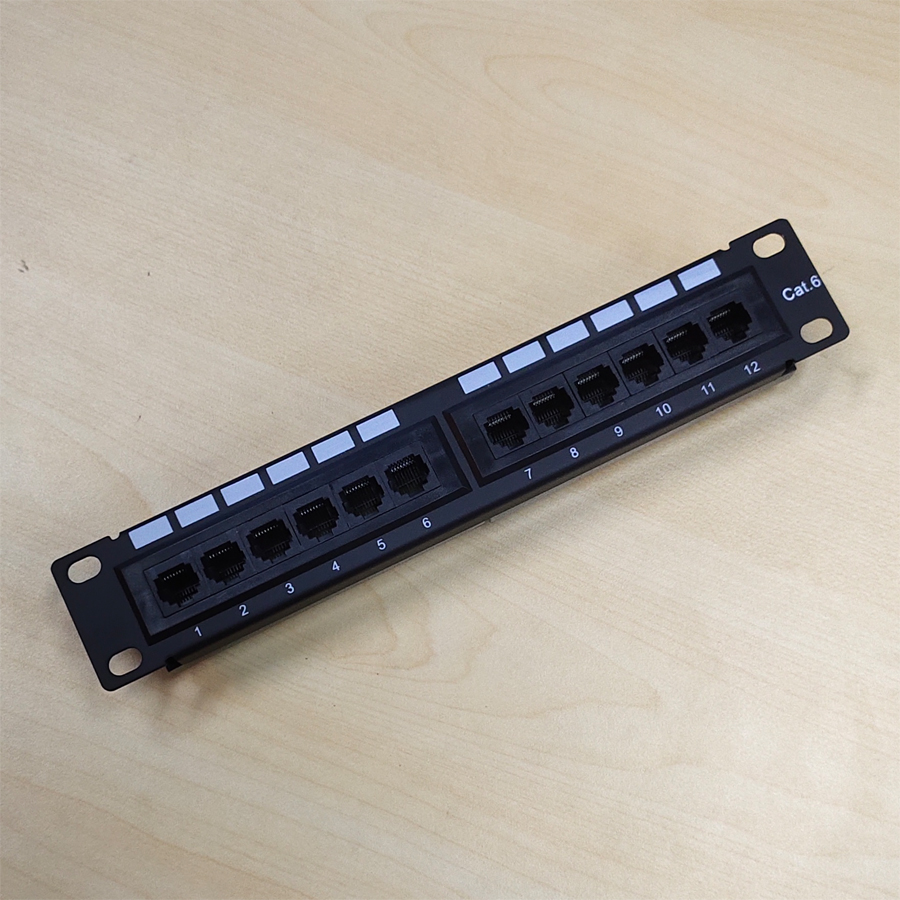

10" 1U CAT6 UTP 12 Ports patch panel

Wall mount cabinet for CAT6 12 Ports patch panel with foldability function in cable manager

The 10” 1U 12 ports Rack Mount Cat6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

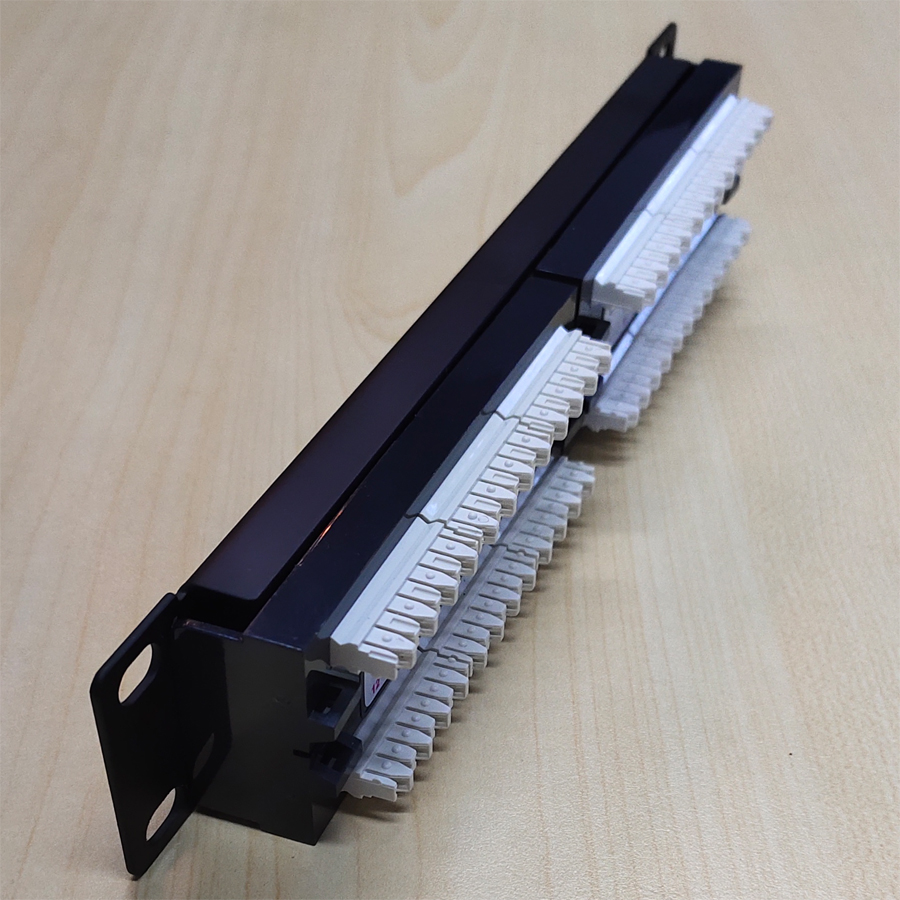

For hassle-free connections, the patch panel offers straight ports with 110 IDC, making it easy to insert and remove your cables. The 12 ports patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.

Our CAT6 patch panel meets and exceeds industry standards, ensuring safety and maximizing the performance of your cabling solutions (TIA/EIA 568A & 568B, ETL, & UL). The patch panel itself is made of solid 16 gauge steel with rounded edges. The jack adapter contacts are made of gold plated brass while the IDC contacts are steel plated nickel for optimal performance, these are not only ideal for speed and efficiency, but also for organization performance.

    12 ports wall mount patch panel  CAT6 cabinet wall mout patch panel

Features:

• 10” 1U 12 Ports UTP patch panel with cable management.

• Made with 16 Gauge Steel

• 10” Rack Mountable

• Cable Routing Clamps (Included)

• Installation Instructions (Included)

Materials:

• Panel: SPCC, 1.5mm Thick

• RJ45 Housing: PC UL94V-0

• RJ45 Contact Material & Finish:

▫ Phosphor Bronze: Nickel Plated

▫ Contact Area: Gold Plated

• IDC Housing: PC+5%GF UL 94V-0

• IDC Terminal Material & Finish:

▫ Phosphor Bronze: Tin Plated.

▫ 110 & Krone Tool Compatible

▫ Use for 22-26 AWG Stranded & Solid Wire

• Jacket Bracket Set: ABS UL 94V-0

• Cable Holder: PA6, UL94V-0

• PCB: FR-4, 1.6mm Thickness


Electrical & Specifications

• Mating Cycles: > 750 insertions.

• Current Rating: 1.5Amps

  Insulation Resistance: ≥500MΩ

  Contact Resistance: ≤10mΩ

  DC Resistance: ≤0.1Ω

DC/AC Volt Endurance: DC 1000V/AC750V 1min

• Plug & Jack Contact Force:≥100 Grams with FCC Compliant RJ-45 Plug

 Plug Retention Force: ≥11 lbf

 Durability: 200 TERMINATION CYCLES

 Operating Temperature: -10~60℃

 Operating Humidity: 10%~90%RH

 Storage Temperature: -40~68℃

•Packing: 1pc/box, 20pcs/ctn.
