48 port UTP Patch Panel
2 year ago
19" 1U CAT6 UTP 48 Ports patch panel
The 19” 1U 48 ports Rack Mount Cat6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.

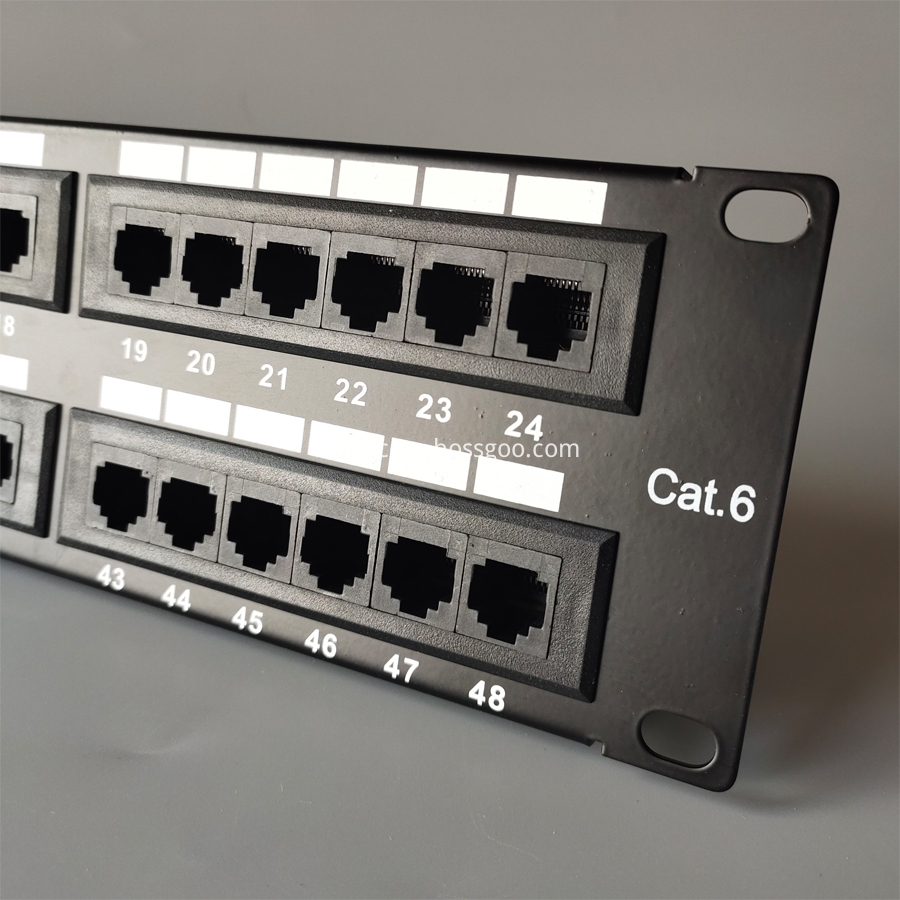

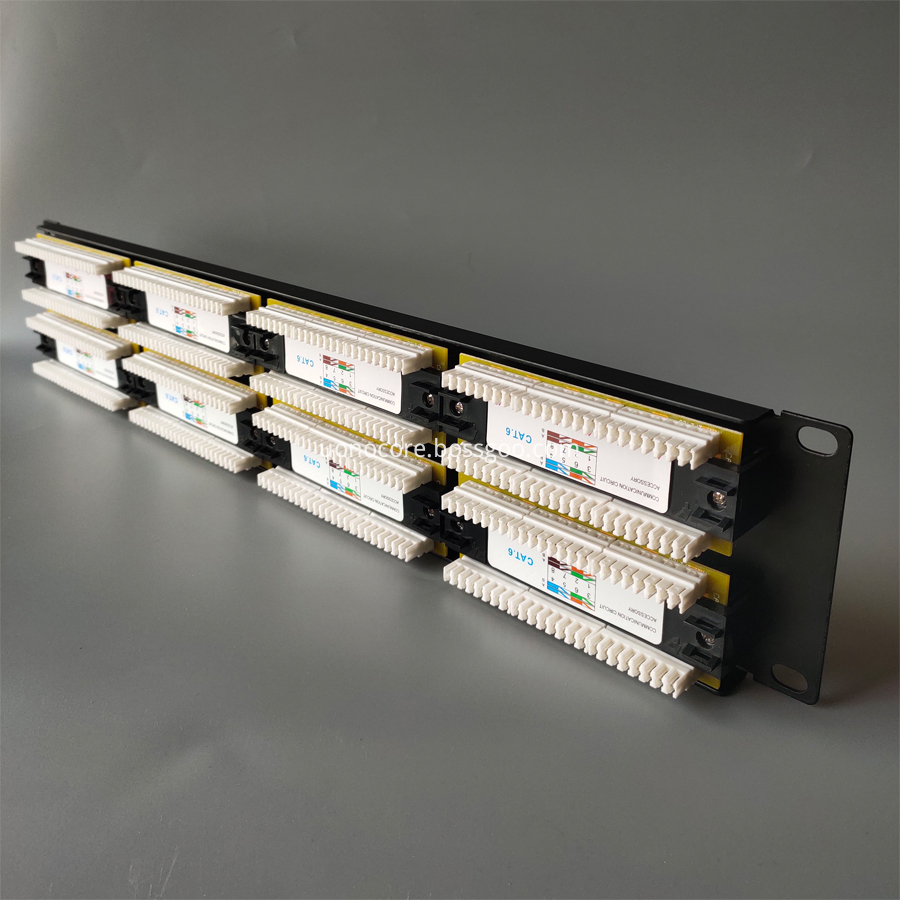

For hassle-free connections, the patch panel offers straight ports with 110 IDC, making it easy to insert and remove your cables. The 48 ports patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Our CAT6 patch panel meets and exceeds industry standards, ensuring safety and maximizing the performance of your cabling solutions (TIA/EIA 568A & 568B, ETL, & UL). The patch panel itself is made of solid 16 gauge steel with rounded edges. The jack adapter contacts are made of gold plated brass while the IDC contacts are steel plated nickel for optimal performance, these are not only ideal for speed and efficiency, but also for organization performance.
|
Features: |
19” 1U CAT6 UTP 48 Port patch panel |
|
|
Made with 16 Gauge SPCC Steel |
||
|
19” Rack Mount |
||
|
Cable Routing Clamps (Included) |
||
|
Installation Instructions (Included) |
||
|
110 & Krone Tool Compatible |
||
|
Use for 22-26 AWG Stranded & Solid Wire |
||
|
Panel Material |
SPCC, 1.5mm Thick |
|
|
RJ45 Housing Material |
ABS, PC UL94V-0 |
|
|
RJ45 IDC Material |
Phosphor Bronze gold plated |
|
|
IDC Housing |
PBT+20%GF UL 94V-0 |
|
|
IDC Terminal Material |
Phosphor Bronze Tin plated |
|
|
Jacket Bracket Set |
ABS UL 94V-0 |
|
|
Cable Holder |
PA6, UL94V-0 |
|
|
PCB |
FR-4, 2 Layer |
|
|
Specifications |
Mating Cycles: |
> 750 insertions. |
|
Current Rating: |
1.5Amps |
|
|
Insulation Resistance: |
≥500MΩ |
|
|
Contact Resistance: |
≤10mΩ |
|
|
DC Resistance: |
≤0.1Ω |
|
|
DC/AC Volt Endurance: |
DC 1000V/AC750V 1min |
|
|
Plug & Jack Contact Force: |
≥100 Grams with FCC Compliant RJ-45 Plug |
|
|
Plug Retention Force: |
≥11 lbf |
|
|
Durability: |
200 Termination Cycles |
|
|
Operating Temperature: |
-10~60℃ |
|
|
Operating Humidity: |
10%~90%RH |
|
|
Storage Temperature: |
-40~68℃ |
|
