Product details

Polished ZrO2 Plate Sheet Wafer Zirconia Ceramic Substrate

Introduction of Zirconia Ceramic Substrates

Zirconia ceramics have high toughness, high flexural strength, high wear resistance, excellent thermal insulation properties and the thermal expansion coefficient close to that of steel. Zirconia ceramic substrates have obvious advantages, such as strong mechanical properties, high temperature resistance, corrosion resistance, low thermal conductivity, and high insulation. There are irreplaceable applications.

Why Polished?

Before the ceramic substrate is metallized, most of the surface of the ceramic substrate needs to be lapped and polished, and there are two ways: single-sided and double-sided. The main purpose is to remove the attachments on the surface, improve the flatness, and obtain a thinner metallization layer. Therefore, lapping and polishing are very important for ceramic substrates, which will directly affect the effect of ceramic metallization.

Material Properties of Zirconia Ceramic Substrates

Zirconia Ceramic Substrate
Item	Unit	ZrO2
Mechanical Properties
Color	/	White
Density	g/cm³	≥6
Water Absorption	%	0
Vickers Hardness (Load 4.9N)	Gpa	11
Young’s Modulus	GPa	200
Flexural Strength	Mpa	>800
Fracture Toughness	MPa·m^1/2	5.0
Thermal Properties
Max. Service Temperature (Non-loading)	ºC	1000
CTE (Coefficient of Thermal Expansion) (20-800℃)	1×10^-6/℃	7.8
Thermal Shock Resistance	≥10 Times	No Crack
Thermal Conductivity (25ºC)	W/m·K	>3
Specific Heat (25ºC)	J/kg·K	460
Electrical Properties
Volume Resistivity (25ºC)	Ω·cm	≥10¹³
Dielectric Strength	KV/mm	≥10
Dielectric Constant (25℃, 1MHz )	(E)	33
Dielectric Loss Angle (25℃, 1MHz )	×10^-4	≤16

Production Process of Zirconia Ceramic Substrates

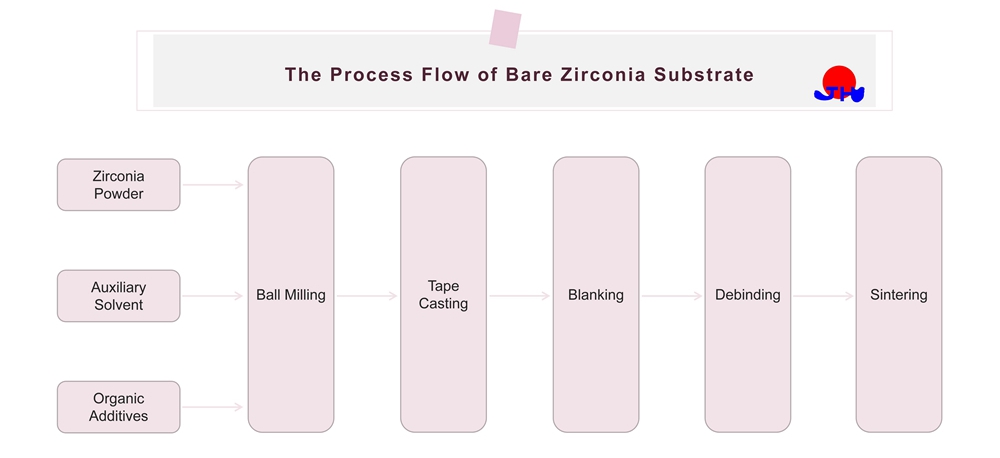

The Process Flow of Bare Zirconia Substrate

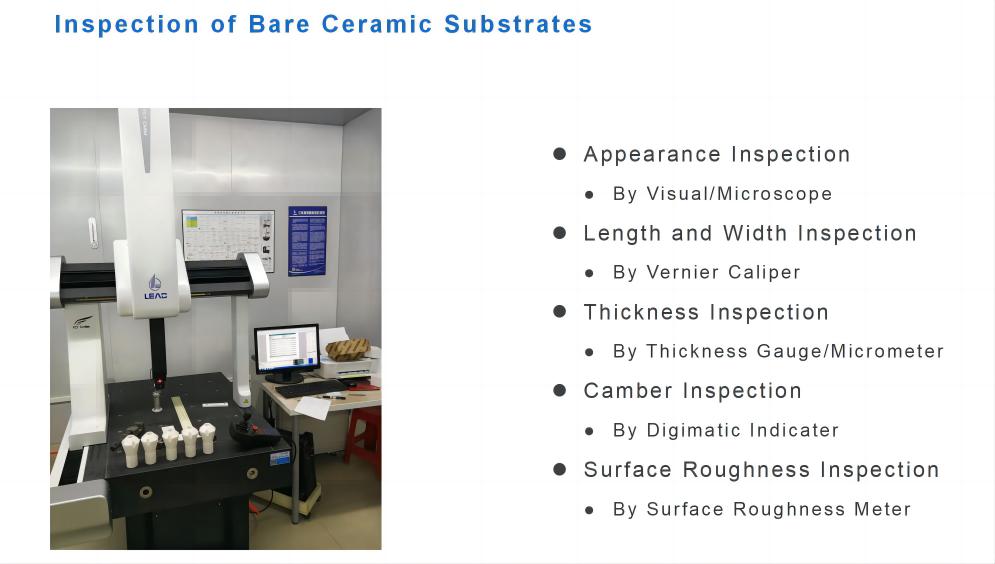

Product Inspection

Inspection of Bare Ceramic Substrates_07
