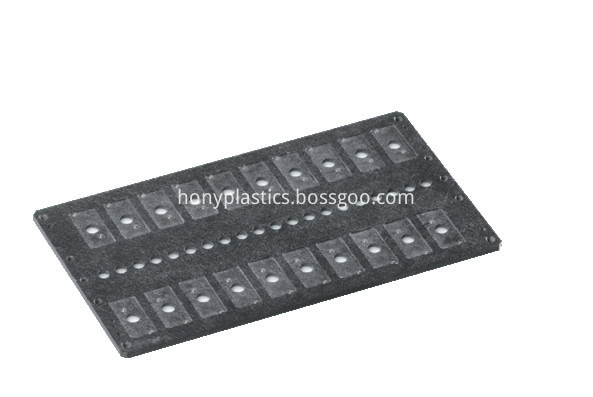

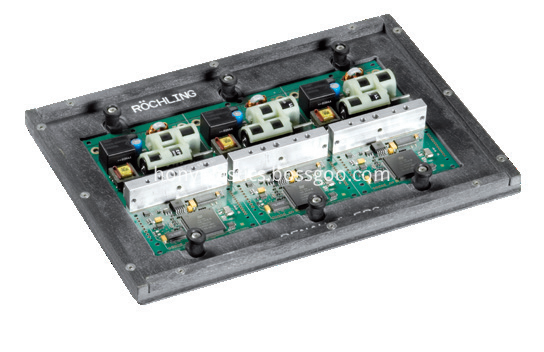

Durostone®CAG762 Optical & Antistatic Solder Pallet Composite high performace composite materials specifically designed for the PCB assembly process
Durostone®materials have been developed for all procedures within the PCB assembly prcosess,there are three main grades which are suitable for use in the SMT reflow and wave soldering processes. Durostone®CHP760,CAS761,CAG762, these materials offer the following features:
Excellent mechanical properties at elevated temperatures in both the wave soldering and SMT reflow processes
Low thermal conductivity
Excellent machining properties enabling the manufacture of complex design solder pallets
Good resistance to chemicals used in modern fluxes.
1. High temperature resistance can reach 330°C-350°C
2. The thermal conductivity is low.
3. Excellent mechanical properties, suitable for lead-free process.
4. It has excellent processing performance and can manufacture welding pallets with complex designs.
5. It has good photosensitivity, that is, it is aimed at the chemicals involved in mainstream fluxes.
Features of imported synthetic stone products:
1. High temperature resistance can reach 330°C-350°C
2. The thermal conductivity is low.
3. Excellent mechanical properties, suitable for lead-free process.
4. It has excellent processing performance and can manufacture welding pallets with complex designs.
5. It has good photosensitivity, that is, it is aimed at the chemicals involved in mainstream fluxes. .
Antistatic durostone sheet Application areas:
1. Wave soldering, reflow soldering
2. Insulation test fixture
3. SMT surface mount
4. PCBs such as furnace trays, tin furnace fixtures, etc.
5. Electronics industry
Durostone Pcb Wave Pallet Stock specifications:
Thickness 3mm.4mm.5mm.6mm.8mm.10mm.12mm
Size 1220*2440mm
Durostone®CAG762 Proterties Wave Soldering Tray Synthetic Stone Data Sheet

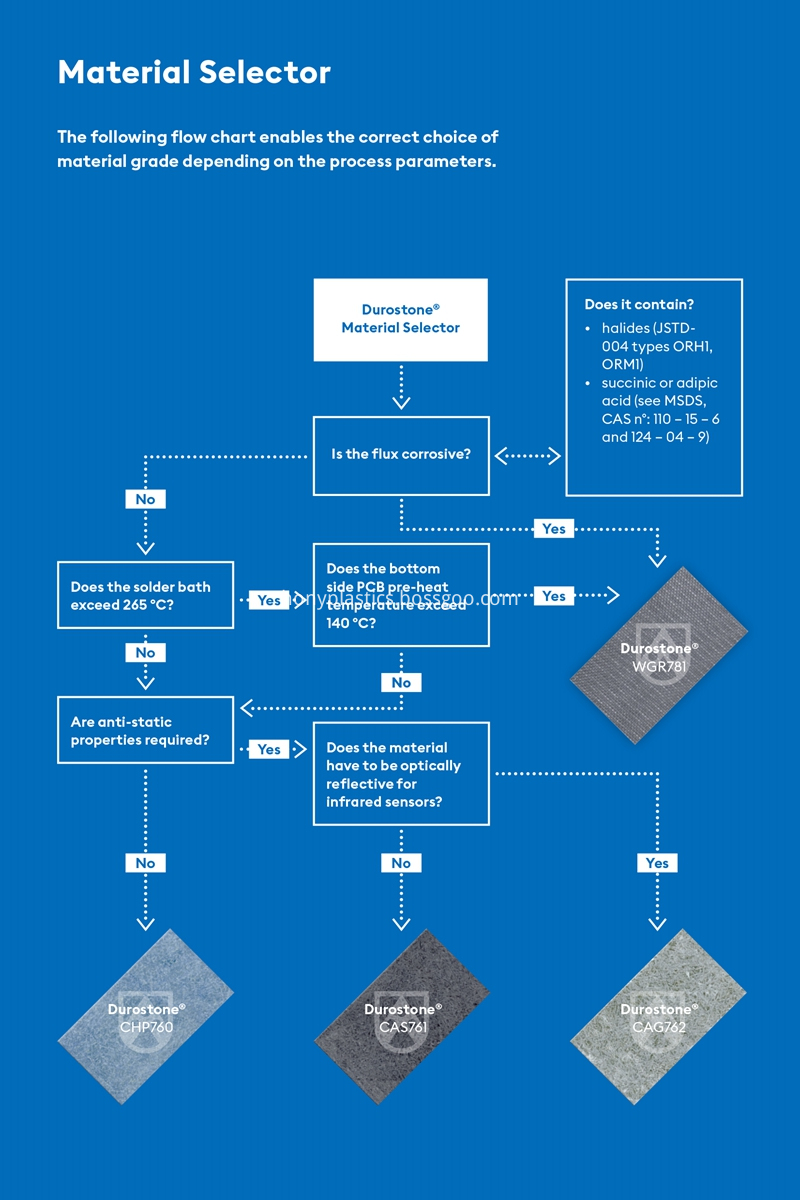

Material choose

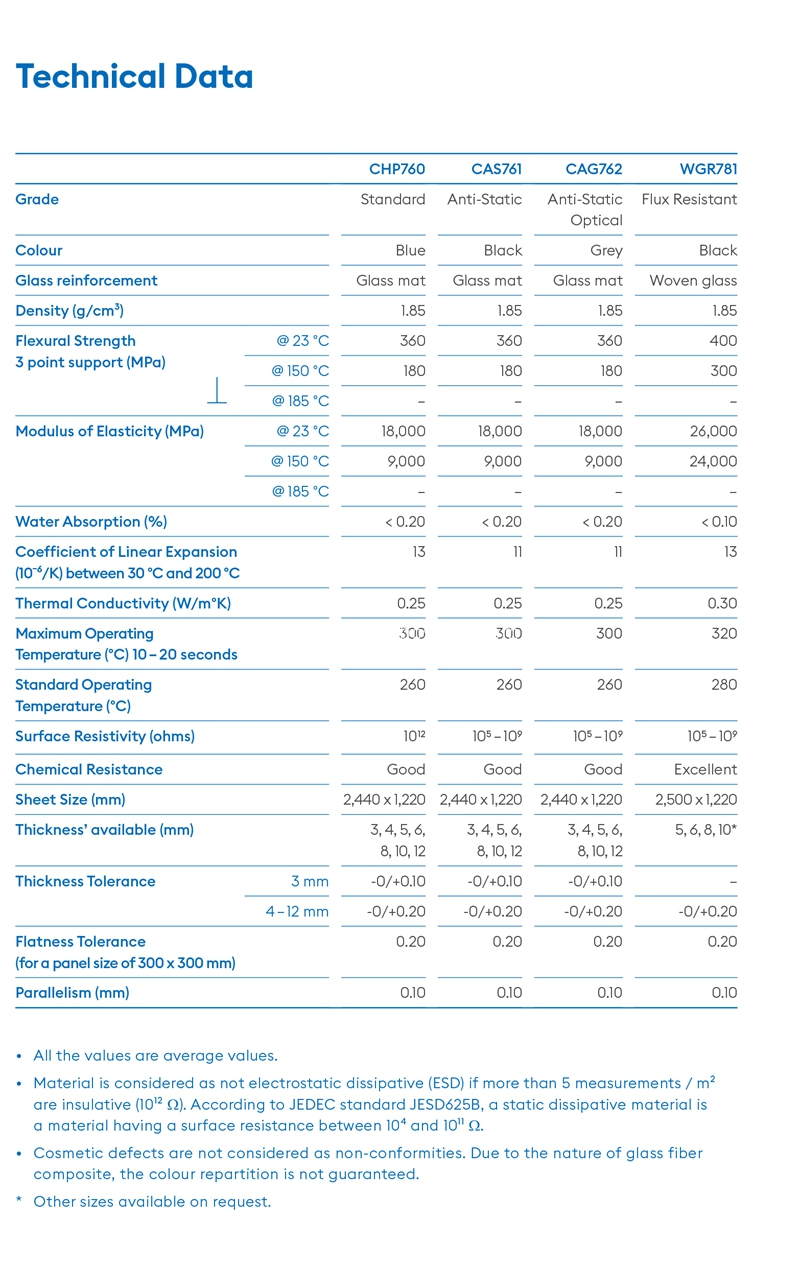

| Technical Data |
|
CHO760 | CAS761 | CAG762 | CFR767 |
| Grade |
|
Standard | Anti-Static | Anti-Static Optical | Flux Resistant |
| Color |
|
Blue | Black | Grey | Bordeaux(Red) |
| Density(g/m3) |
|
1.90 | 1.90 | 1.90 | 1.80 |
| Flexural Strength 3 point support (MPa) | @23℃ | 360 | 360 | 360 | 380 |
| @150℃ | 180 | 180 | 180 | 260 | |
| @185℃ | - | - | - | 150 | |
| Modulus of Elasticity (MPa) | @23℃ | 18000 | 18000 | 18000 | 18000 |
| @150℃ | 9000 | 9000 | 9000 | 14000 | |
| @185℃ | - | - | - | 10000 | |
| Water Absorption(%) |
|
＜0.20 | ＜0.20 | ＜0.20 | ＜0.20 |
|
Coefficient of linear Expansion(10-6/K) beteen 30℃ & 200℃ |
|
13 | 11 | 11 | 11 |
| Thermal Conductivity (W/MK) |
|
0.25 | 0.25 | 0.25 | 0.23 |
| Maximum Operating Temperature(℃) 10-20 seconds |
|
300 | 300 | 300 | 380 |
| Standard Operating Temperature(℃) |
|
260 | 260 | 260 | 300 |
| Surface Resistivity(ohms) |
|
- | 105-109 | 105-109 | 105-109 |
| Chemical Resistance |
|
Good | Good | Good | Excellent |
| Sheet Size (mm) |
|
2440 x 1220 | |||
| Thickness available (mm) |
|
3,4,5,6,8,10,12 | 5,6,8,10 | ||
| Thickness Tolerance 3mm |
|
-0/+0.10 | |||
| Thickness Tolerance 4-12mm |
|
-0/+0.20 | |||
| Flatness Tolerance (for a panel size of 300 x 300) |
|
0.20 | |||
| Parallelism |
|
0.10 | |||
All the values are average values
Material is considered as not electrostatic dissipative(ESD) if more than 5 measurements/m2
are insulative (1012 Ω. According to JEDEC standard JESD625B,a static dissipative material
is a material having a surface resistance between 104 and 1011 Ω
