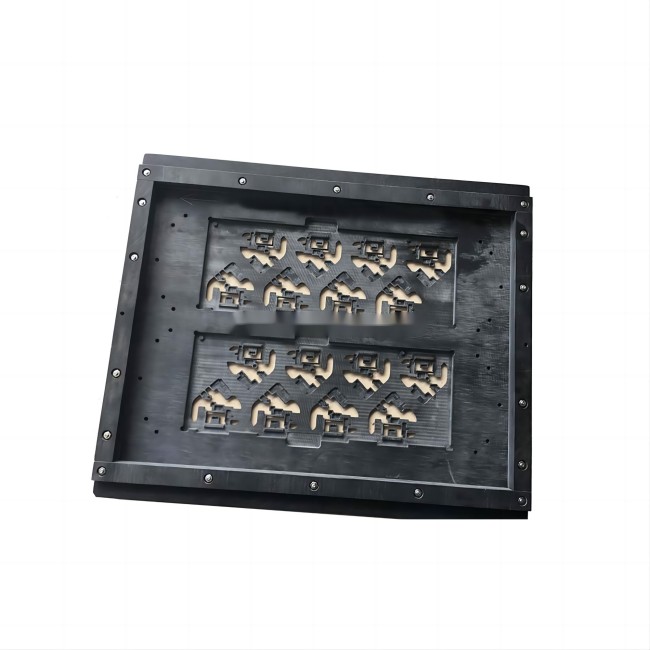

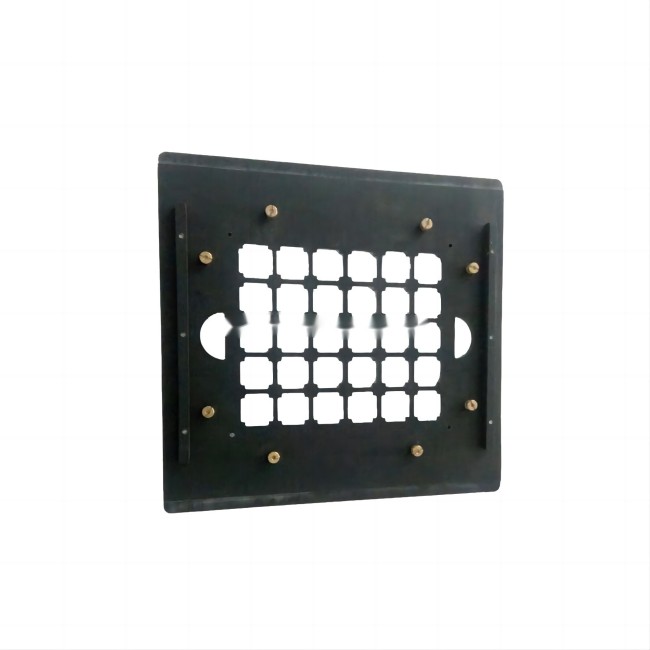

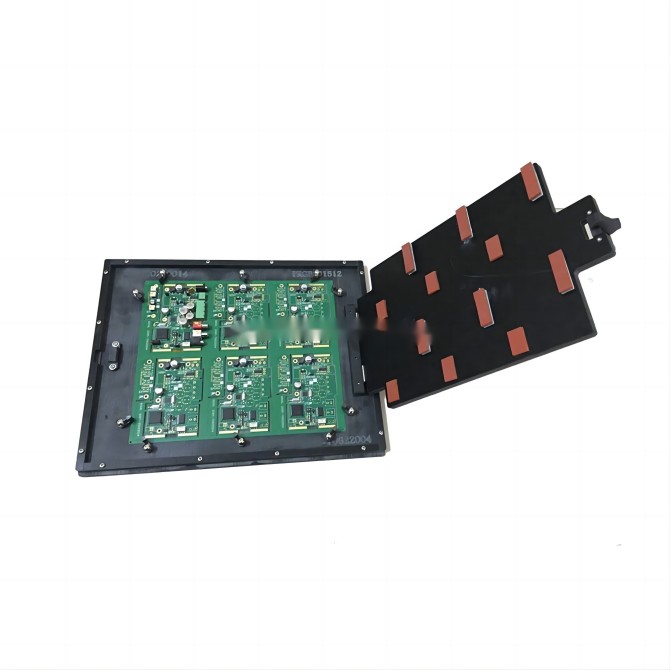

Wave Solder Pallet For PCB Pallet
2 year ago
Good Precision Selective Wave Solder Pallet For PCB Pallet . Ricocal is made by fiber glass cloth and high temperature resin. It is an ideal material for solder pallets, wave solder pallets,SMT solder pallets, SMT solder fixtures, selective solder fixtures and other specialty soldering fixtures.
|
Product Name
|
Wave solder pallet
|
|
Material
|
Fiber glass cloth + high temperature resin
|
|
Color
|
Black
|
|
Size
|
As per drawings
|
|
Thickness
|
3mm-30mm
|
|
Certification
|
ISO9001, SGS, CTI, ROHS
|
|
Application
|
Wave solder pallet, reflow solder pallet, SMT pallet, solder paste printing
|
Tips for machining ricocal material
1. The material of the cutter: carbide such as Tungsten Carbide +Cobalt
2. How many flutes for the cutter ? 4 flutes
3. Feed speed(cutting speed): for 3.175mm cutter, feed speed is 2000mm/min
4. Wall thickness:1mm
- Excellent durability against repetitive soldering of more than 20,000 times.
- Excellent mechanical strength for precision machining.
- Excellent chemical resistance against soluble flux or pallet cleaner.
- PTFE-coating is not necessary to make up for durability or cleanability.
- Excellent machinability which is durable against high speed machining.
- Lead free material/ RoHS COMPLIANT
- Strong Thin Wall up to 0.5mm
|
Technical Data Sheet
|
||||
|
Name
|
Ricocel material for wave solder pallet
|
|||
|
Grade
|
Anti-static
|
|||
|
Density(g/cm3)
|
2.1
|
|||
|
Flexural Strength 3 point support⊥(Mpa)
|
470
|
|||
|
Water Absorption(%)
|
<0.1
|
|||
|
Coefficient of linear Expansion(10－6/k)
|
11
|
|||
|
Thermal Conductivity (w/m0k)
|
0.4
|
|||
|
Maximum Operating Temperature(℃) 10-20seconds
|
380
|
|||
|
Standard Operating Temperature(℃)
|
300
|
|||
|
Life Cycles(Times)
|
>20000
|
|||
|
Surface Resistivity(Ω)
|
10^6－10^9
|
|||
|
Thermal Capacity(J/kgk)
|
960
|
|||
|
Modulus of Elasticity (Mpa)
|
20000
|
|||
|
Chemical Resistance
|
Excellent
|
|||
|
Thickness Available(mm)
|
3,4,5,6,8,10,12,15,20,25,30
|
|||
|
Thickness Tolerance(mm)
|
±0.1
|
|||
|
Parallelism(mm)
|
±0.1
|
|||
|
Sheet Size (mm)
|
1020*1220mm, 1220*2440mm
|
|||
Dedicated Press Fit Support Fixtures For PCB Assembly Tooling
HONY Plastic is one of the most professional manufacturer of wave solder pallets and reflow solder pallets in China. Each one of our pallet is custom designed to meet our client's requirements. Just tell us your ideas,HONY Plastic experienced engineers will offer the best solution for you.
Our advantages
-Price: With our own pallet materials and CNC machines, we can provide the most competitive price to our clients.
-Quality: With rich production experience, our pallets have been widely approved by our clients both home and abroad. The precision can be controled within -/+0.02mm
-Lead time: 3-5 days for samples, 7-10 days for bulk order.
-Professional sales team: Our sales engineer know well about material&machining. You can discuss any engineering issue with us freely.
We can also design pallets as per client's requirement. Below information are necessary for the pallet design.
1.2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets
2.Gerber file of PCB bare board+ Loaded PCB sample(PCB board with electronic components)
5 ways to maximize the life of solder pallet fixture
What are the most important things to pay attention to while using solder pallet fixture?
1. Gentle care and proper handling. Fracture damage most often occurs while transferring the unit. To avoid damage to the protective wall, as well as other parts of the solder pallet fixture, it is important to have a dedicated management position.
2. Store the solder pallet fixtures in an upright position. Deformations can be happened if the unit is improperly stored. To avoid deformations caused by stacking it is recommended that units be stored on shelves.
3. Avoid strong acid and alkali contact. Exposure to strong acids or bases will easily corrode the solder pallet fixture. To avoid this a neutral flush is recommended.
4. Avoid using alcohol and alcohol-based cleaning agents. Saponifiers are the recommended cleaning agent.
5. Shockproof transportation. Units can receive shock damage while being transported through the A shockproof cart is recommended.
