PA46 Ertalon 4.6

HONY®MC Nylon is recognized as the most widely used and known engineering plastic in the current market. PA6 has the best performance, very tough, even at low temperatures, and high surface hardness, mechanical lower shock, and abrasion resistance. Combined with these characteristics and good insulation, and chemical properties, it has become common-level materials. It’s widely used in a variety of mechanical structures and spare parts. Compared to PA6, PA66 own the higher hardness, rigidity, better resistance to wear and heat deflection temperature. Temperature resistance from -40℃ to 110 ℃.

FEATURES:

excellent mechanical properties. Nylon high mechanical strength, good toughness.

self-lubrication, abrasion resistance. nylon with good self-lubrication, the friction coefficient is small, and thus, as part of its long life transmission.

excellent heat resistance. As with glass fiber reinforced PA66 after the heat distortion temperature of above 250 ℃.

excellent electrical system edge performance. Nylon high volume resistance, resistance to high breakdown voltage, is an excellent electrical, electrical insulating materials.

excellent weather resistance.

absorbency. Nylon water absorption saturation water to 3% or more. To a certain extent affected parts of the dimensional stability

Disadvantages:

Materials water absorption, and to a certain extent affected parts of the dimensional stability.

Application:

nylon engineering plastics as a large amount, widely used in machinery, automobile, appliances, textile equipment, chemical equipment, aviation, metallurgy and other fields. All walks of life to become an indispensable structural materials, such as making all kinds of bearings, pulleys, oil pipelines, oil reservoir, oil pads, protective cover, cage, wheel covers, spoiler, fan, air filter housing, radiator water chamber, the brake pipe, hood, door handles, connectors, fuses, fuse boxes, switches, throttle pedal, oiler cap, high code protection and so on

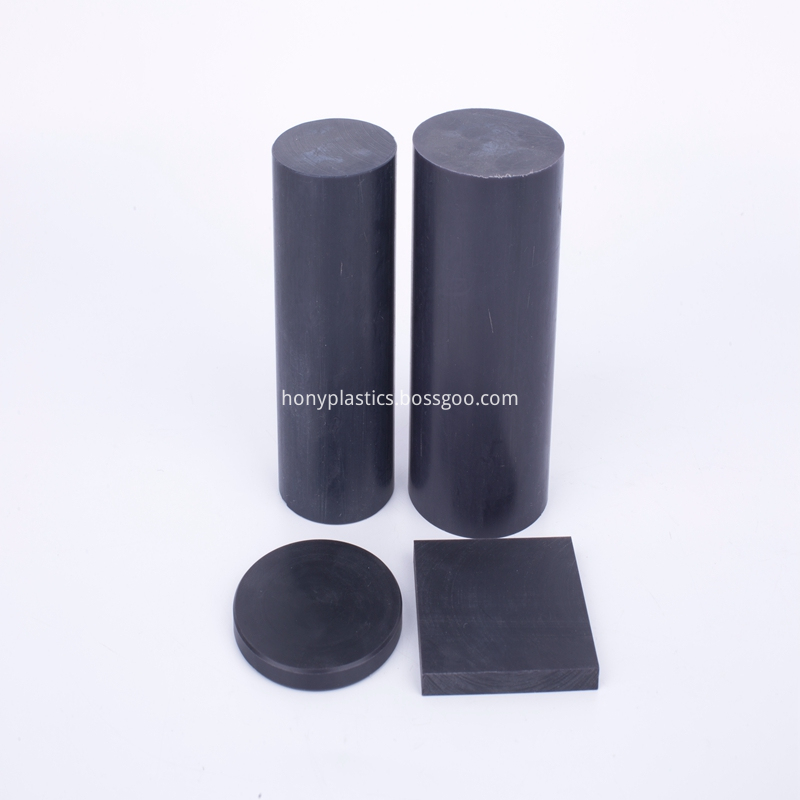

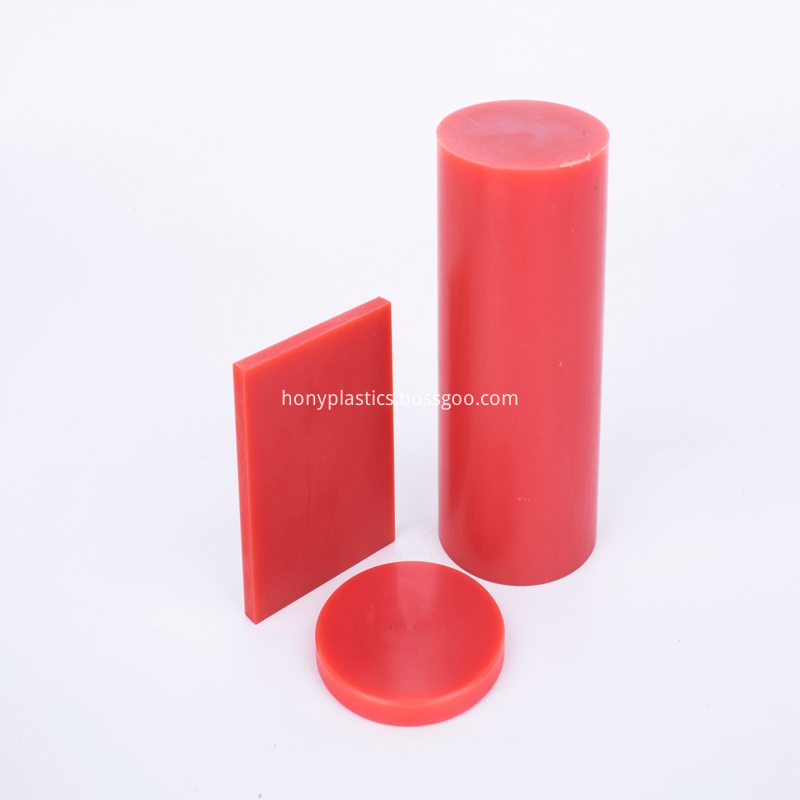

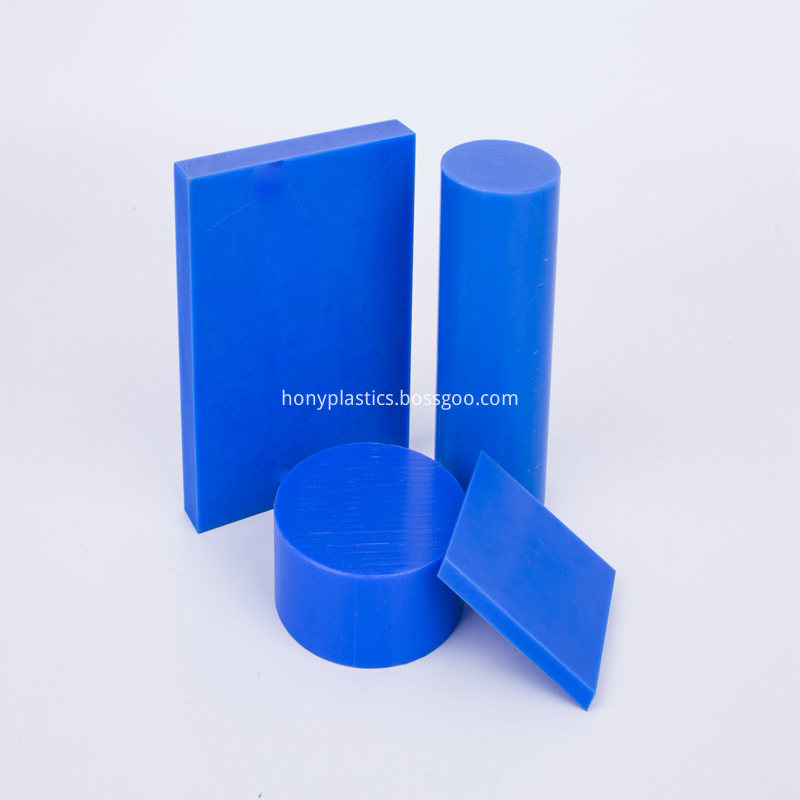

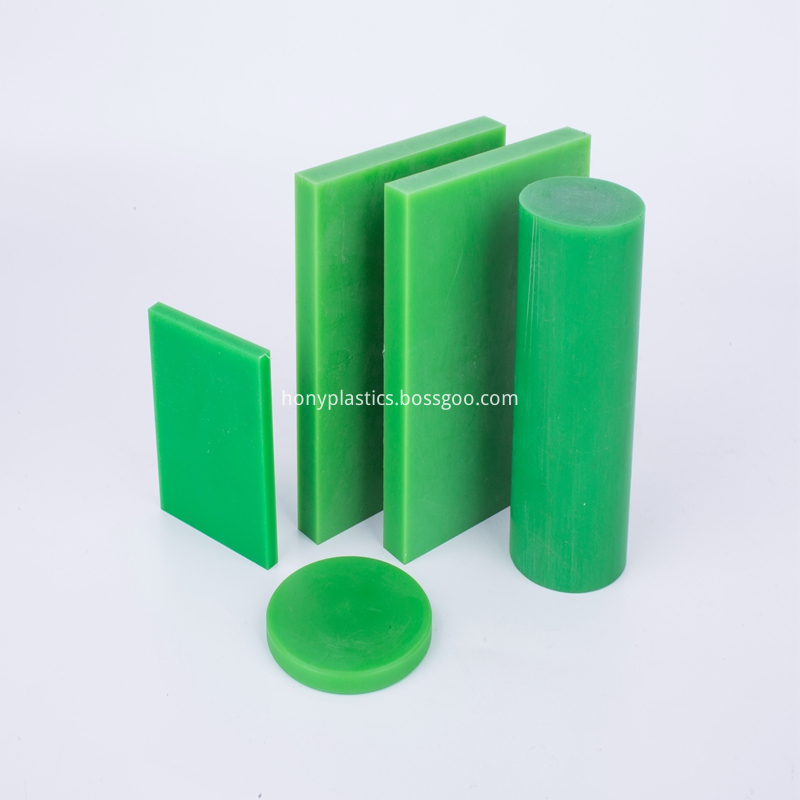

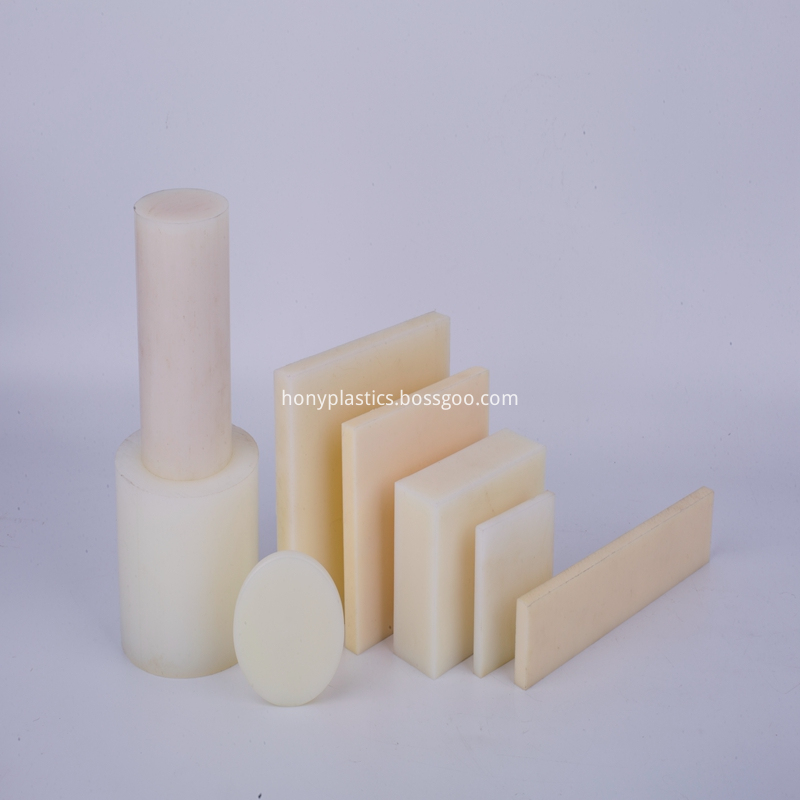

High Quality Colorful Nylon (PA6) / MC Cast Nylon Sheet, Parts

Nylon's toughness, low coefficient of friction and good abrasion resistance make nylon rod, nylon sheet and nylon tube an ideal replacement for a wide variety of materials from metal to rubber - it weighs only 1/7th as much as bronze.

Using nylon rod, nylon sheet and nylon tube reduces lubrication requirements, eliminates galling, corrosion and pilferage problems, and improves wear resistance and sound dampening characteristics.

Nylon rod, nylon sheet and nylon tube has a proven record of outstanding service in a multitude of parts for such diverse fields as paper, textiles, electronics, metalworking,mining, aircraft, food and material handling

Nylon sheet is also an ideal material choice when manufacturing thermal breaks for use in construction projects as a thermal insulator (break) between steels. For more information about our thermal break cutting service please contact us to discuss your requirements

Main properties of our range of nylon sheet, nylon rod are that :

nylon has high mechanical strength, stiffness, hardness and toughness

nylon has good fatigue resistance

nylon has high mechanical damping ability

nylon has good sliding properties

nylon has excellent wear resistance

nylon has good electrical insulating properties

nylon has high resistance against high energy radiation (gamma and X-rays)

nylon has good machinability

It is important to remember that nylons can absorb up to 7% (by weight) water under high humidity conditions or when submerged in water. This can result in dimensional changes up to 2% and a corresponding reduction of physical properties. Proper design techniques can substantially compensate for this factor. Alternatively, acetal or Ertalyte PET-P can be considered for such applications.

The differences in physical properties which exist between the different types of Nylon grades below are mainly determined by the composition and the structure of their molecular chains.

What is the difference between cast and extruded Nylon ?

The main difference lies in the manufacturing process. Cast polyamide products are manufactured by means of a chemical reaction process. This allows products with extremely large dimensions and custom cast parts to be manufactured. Water absorption and dimensional changes are lower in CAST. The crystallinity is greater so that wear resistance and machinability are better. Extruded absorbs more moisture and is thus tougher and has greater impact and vibration damping properties.

Nylon Application  :

Good mechanical properties and resistance to heat and fuels, make these materials suitable for mechanical and electrical, hardware and under-the-hood components. Examples are: Timing sprockets, Speedometer gears, Cooling fans, Wire connectors, Windshield wiper parts, Door-latch hardware, Molded fender extensions, Steering-column lock housings, Brake fluid reservoirs, Bearings

HONY®MC nylon Properties Data Sheet

Main production
