ground pile automatic producing

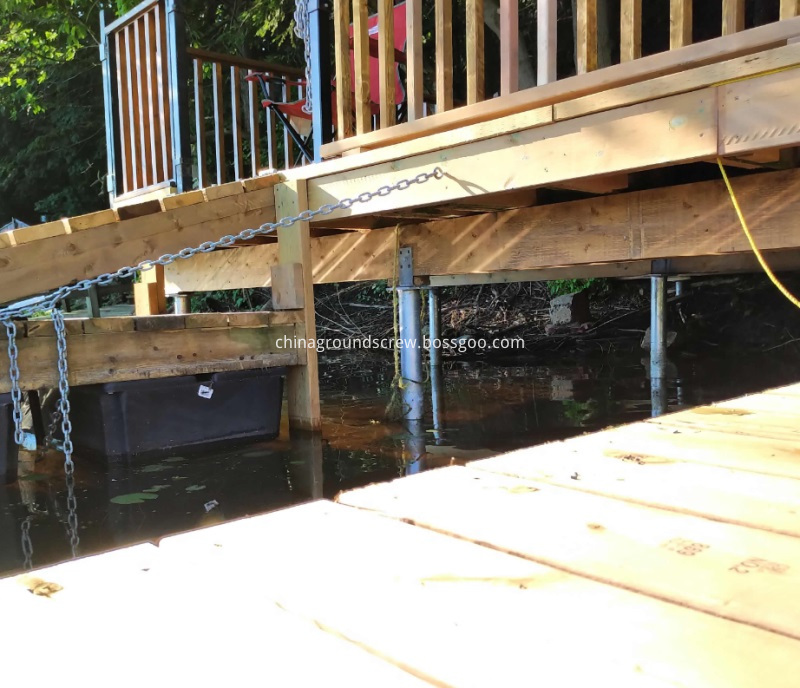

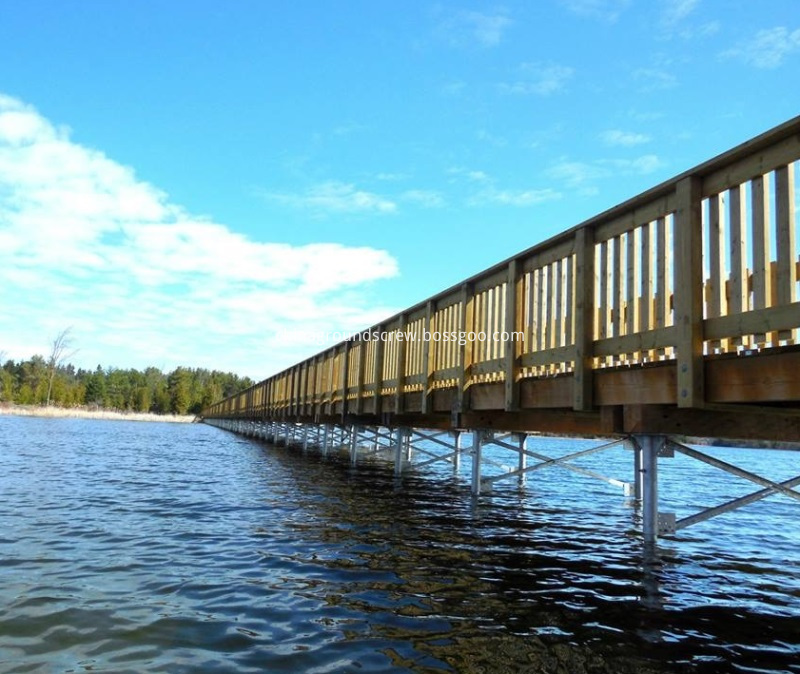

Helix Ground Screw are commonly used for new construction and support existing structures.Ground Screw Pile are designed for application in expansive soil,high water tables,fill areas and other areas where unstable soils require a deep foundation.In compression Screw Pile Foundation are used as footers and in tension Ground Pile maybe used to support the retaining or foundation walls.

Hot dip Galvanized Ground Screw mainly used in solar energy mounting system and photovoltaic bracket support .

This kind of Steel Ground Screw usually with 3 pieces ,6 pieces M12/14/16 nut ,with reinforced plate ,easy install .no-digging,no-concrete ,with high dip galvanization ,zinc coating more than 80 micron .With our Ground Screws you can quickly and easily construct a stable foundation and begin construction immediately.

The production of Helical Ground Screw specification :

76*3*1200 MM

76*3*1400 MM

76*3*1500 MM

76*3*1800 MM

76*3*2000 MM

76*3*2100 MM

76*3*2500 MM

76*4*1500 MM

76*4*2000 MM

89*3.75*1500 MM

89*3.75*1800 MM

89*3.75*2000 MM

102*4.5*1800 MM

102*4.5*2000 MM

114*4*2000 MM
