Chuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer Core1

2 year ago
50 0
Home EI-lamination Chuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer Core
JIANGYIN CHUANGJIA ELECTRICAL CO.,LTD
3 year
Product details



Company overview:Chuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer CoreChuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer CoreChuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer CoreChuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer Core

Chuangjia Black Sheet Silicon Steel Ei Lamination Plate for Transformer Core



                              Date sheet       (HID Ballast series    Unite:mm)
 Fei type

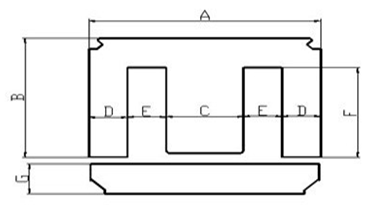

Type A B C D E F G Note(Air gap)
60F 60 41.6 20 10 10 31.6 10       0.7 0.8 0.9 1.0
75F 75 51.6 25 12.5 12.5 39.6 12.5   1.2 1.4 1.6 1.8 2.0 2.4
96F 96 65.6 32 16 16 50 16       1.6 2.2 2.6 4.0
78F 78 53.35 25 12.5 14 41 12.5         1.6 2.0 2.4
120F 120 80 40 20 20 60 20 6.1

                 Made by high speed mould





Ya type
Type A B C D E F G Note(Air gap)
60H 60 40 20 10 10 30 10   0.8 1.0
66H 66 44 22 11 11 33 11      0.9 1.0 1.2 1.8
84H 84 56 28 14 14 42 14   1.8 2.0
75H 75 51.6 25 12.5 12.5 39 12.5 Striped hook1.2
75H 75 50 25 12.5 12.5 37.5 12.5   1.2 1.4 1.6 1.8 2.2
96H 96 64 32 16 16 48 16  1.6 2.2
150H 150 100 50 25 25 75 25 7.2
112H 112 74 36 19 19 56 19 2.8

                      Made by high speed mould



 Note:Burr tolerance below 0.02MM,Dimensional tolerance±0.01mm

                               Date sheet   (Three phase series Unite:mm)
TYPE A B C(Long)  C(short) D E Hole NOTE
NO. (Φ)
EI-16 80 16 48 40 16 16 4 8
EI-20 100 20 60 50 20 20 4 8
EI-22 110 22 66 55 22 22 4 8
EI-25 125 25 75 62.5 25 25 6 5.5
EI-28 140 28 84 70 28 28 4 8 HIGH SPEED
EI-30 150 30 90 105 30 30 4 8 HIGH SPEED
EI-32 160 32 80 80 32 32 4 7
EI-35 175 35 105 87.5 35 35 4 8 HIGH SPEED
EI-36 180 36 90 90 35 35 6 8
EI-38 190 38 114 95 38 38 6 8 HIGH SPEED
EI-40 200 40 120 100 40 40 6 10
EI-44 220 44 132 110 44 44 6 8
EI-45 225 45 135 112.5 45 45 4 11
EI-50 250 50 150 125 50 50 6 11
EI-56 280 56 168 140 56 56 4 8
EI-60 300 60 180 150 60 60 6 14
EI-70 350 70 210 175 70 70 4 13
EI-80 400 80 240 200 80 80 4 14
EI-90 450 90 270 225 90 90 4 14
EI-100 500 100 300 250 100 100 4 14

  Note:Burr tolerance : 0.02mm,Dimensional tolerance : ± 0.1mm
