- Rectangular RED Through-Hole LED -

234FRD

234FRD is solid state lamps within a radial lead rectangular epoxy package. A tinted, diffused epoxy provides high on-off contrast and a flat high intensity emitting surface. This range of LEDs offer an uniterrupted light output due to a borderless package design. we uses a double heterojunction (DH) absorbing substrate (AS) aluminum gallium arsenide (AlGaAs) red LED chip in a light red epoxy package. Together they produce a strong light output over a wide range of drive currents.Rectangulal red through-hole led uses a high efficiency red GaAsP on GaP LED chip in a light red epoxy package.The 234FYD provides a yellow GaAsP on GaP LED chip in a yellow epoxy package.The 234LGD provides a green GaP LED chip in a green epoxy package. Features of the 234FRD, 234FYD and 234LGD series:1. Rectangular light emitting surface;2.Flat high sterance emitting surface;3.Ideal for flush mounted panel indicators;4.Ideal for backlighting legends;5. Long life: solid state reliability;6. IC compatible / low current requirements;7.Visible Light LEDs.There have kinds of blue LED shape for your choose, for instance: 3mm round top blue LED, 5mm round top through-hole LED, 2835 blue SMD LED, 5730 Blue LED, rectangular blue LED with size like 2*3*4mm and 2*5*7mm ect. You can choose any one of them for your design. Blue rectangular LED are widely used for different kinds of electronic products or the LED indicator, LED backlight and it also work perfect for your DIY project. Do you need some RED LED? Contact us now!

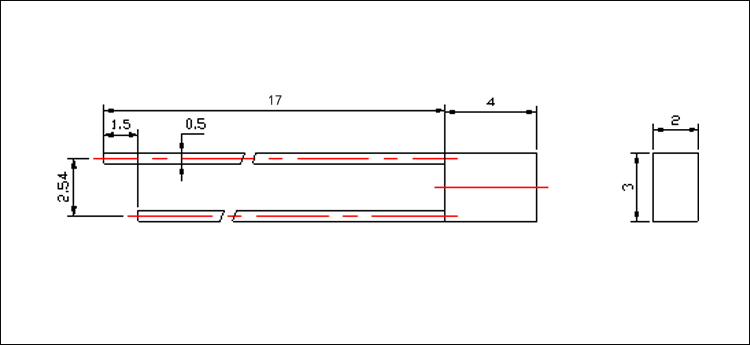

- Dimension Parameters -

. All dimensions are in millimeters ;  2. Tolerance is ± 0.10 mm unless otherwise noted.

*This case are also available for UV LED, Yellow LED, White LED, blue through-hole LED, red through-hole LED, IR LED ect.*

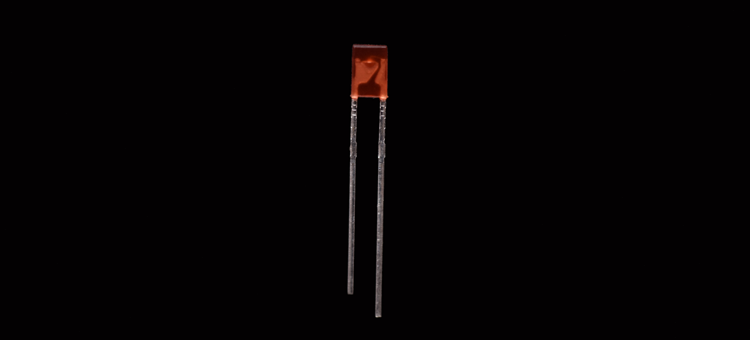

- Emitting Color -

* Colors in the photo was took by camera, please take actual emitting color as standard.

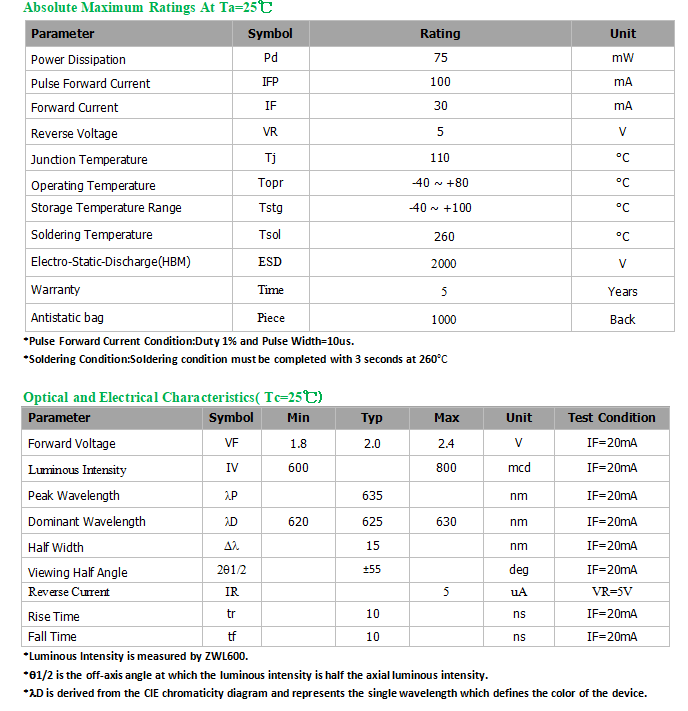

- Electrical Parameters -

- Golden Wire Connection -

- Packing -

- Application -

- Related UV LED -

- Production -

- Attention -
