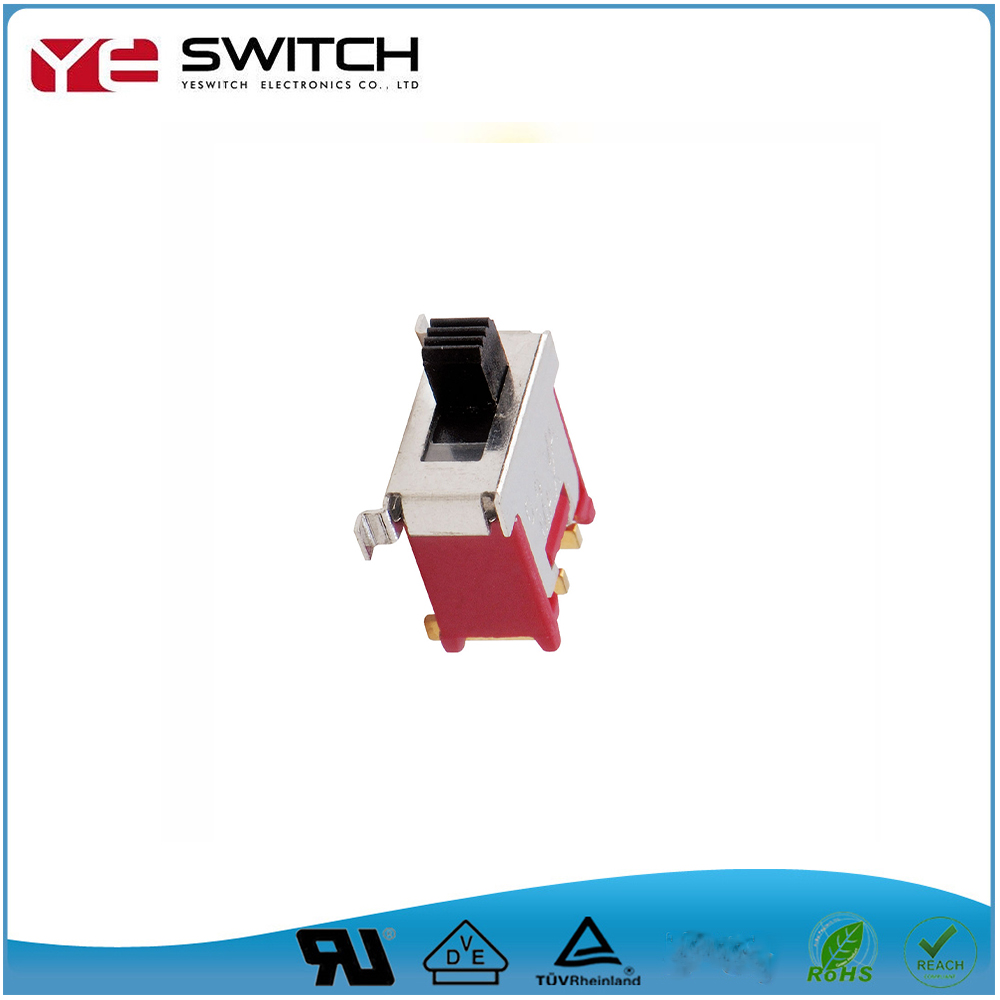

Surface Mount ON-ON Slide Switch

Yeswitch is a Taiwan Manufacture specializing in Switch (Including Slide Switch, Toggle Switch, Push Button Switch, Keylock Switch,Micro Switch etc.). Slide Switches are one kind of advantage item of Yeswitch which was recognized by UL and got RoHs compliance.

This kind of 2 Position Slide Switch, 3 Position Slide Switch, 4 Position Slide Switch have a 30,000 make-and-break cycles mechanical life. The Micro Slide Switch can be operated under -30° to 85° temperature. Varity of terminations of the Mini Slide Switches can be provided for options such as quick connect, solder lug, PC thru-hole, vertical right angle and etc. The terminal plating could be silver, gold over silver or gold, which will have better electrical conductivity.

The Micro Slide Switch comes in single or double poles and have two or three positions for options. The miniature Slide Switch have two or three function such as on-on, on-off-on etc. And there is a varity size of actuator provided for chosen to meet different requirements. The Rating will depend upon contact material for example Silver Plated Contact will reach to 3A 120VAC and Gold Plated is up to 0.4A20VAC/DC.

SPECIFICATIONS:

CONTACT RATING: Dependent upon contact material

MECHANICAL LIFE: 30,000 make-and-break cycles.

INSULATION RESISTANCE: 1000mΩ min

DIELECTRIC STRENGTH:1,000Vrms min.@ sea level

OPERATING TEMPERATURE RANGE: -30° to 85°

MATERIALS:

CASE: Dially phthalate (DAP) (UL94V-0)

HOUSING: Stainless steel or phosphor broze, tin plated.

ACTUATOR: Nylon, black std.

CONTACT: Brass or copper alloy, with silver or gold plated

TERMINALS: Copper alloy, with silver and gold plated

1.>>>>Technical Data for the Micro Slide Switch

2.>>> Function Options

3.>>> Contact Material Options& Soldering Processes

4.>>> Yeswitches Advantages

From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.

5.>>> Order Procedure
