Pushbutton switch

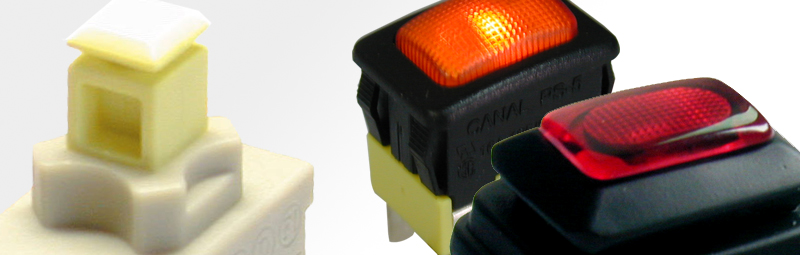

UL VDE 16A Waterproof Push Button Switches

PS5 Square Push Button Switches are high current switch, which is 16A 125/250VAC (UL,CUL). IP65 protection level of the Waterproof Push Button Switch available for rubber-boot mounted actuator. Terminal  of this Push Button On Off Switch is Silver plated copper . The function of the  Waterproof Push Button Momentary Switch is available in lock and momentary

Inrush current, input surge current or switch-on surge is the maximum, instantaneous input current drawn by an electrical device when first turned on. For example, incandescent light bulbs have high inrush currents until their filaments warm up and their resistance increases. Alternating current electric motors and transformers may draw several times...... ~

Choosing a switch that can have a good capacity for your device is thus very important for your device's safety. Our PS5 series can offer an option up to TV6 or equivalent to 92A inrush, or 8A'L' up to 128A inrush that can be the appropriate switch to ensure your device's life and stability.

SPECIFICATIONS:

• 16A 125/250VAC (UL,CUL)
• 16(4)A 250VAC~ T125/55 (VDE, ENEC)
• 16(8)A 250V~T125/55 (VDE, ENEC) optional
• TV-6 / 125V~T55, 25E3 (cURus) optional
• 8[128]A 250V~T55 1E4 (cURus, ENEC15) optional
• Initial contact resistance : 20m max.
• Insulation resistance : 100M min, at 500VDC
• Dielectric strength : 1,000 VAC for 1 minute
• Base : Nylon 66/PBT, UL rated 94V-2 min
• Actuator : Nylon 66/PC, UL rated 94V-2 min
• Spring : Piano wire
• Contacts : Silver alloy
• Terminal : Silver plated copper
• IP65 protection level available for rubber-boot mounted actuator ( passing MIRDC's TAF laboratory test )

Our Advantages

From the purchase of raw materials to the finished product, all production process (product development/plating/mold and equipment processing/ metalpressing/ plasticinjection/semi-automatic and fully automated equipment assembly, etc.) are completed in the factory. Our metal pressing and plastic injection own the advantages of 100% self-made mold, from a single form to the various forms of application. And we continuously keep innovation and enhance the technology in order to collaborate with our customers to design the most sophisticated products. Yeswitch Electronics Co., Ltd., whether in production base or in quality assurance department in the head office, have professional equipment and technical personnel. In addition to the annual new product development, product improvement and testing are performed as annual plan to ensure that listed products maintain in best quality. Therefore, our long-term customers/partners, get the best quality of the switches.
