Product details

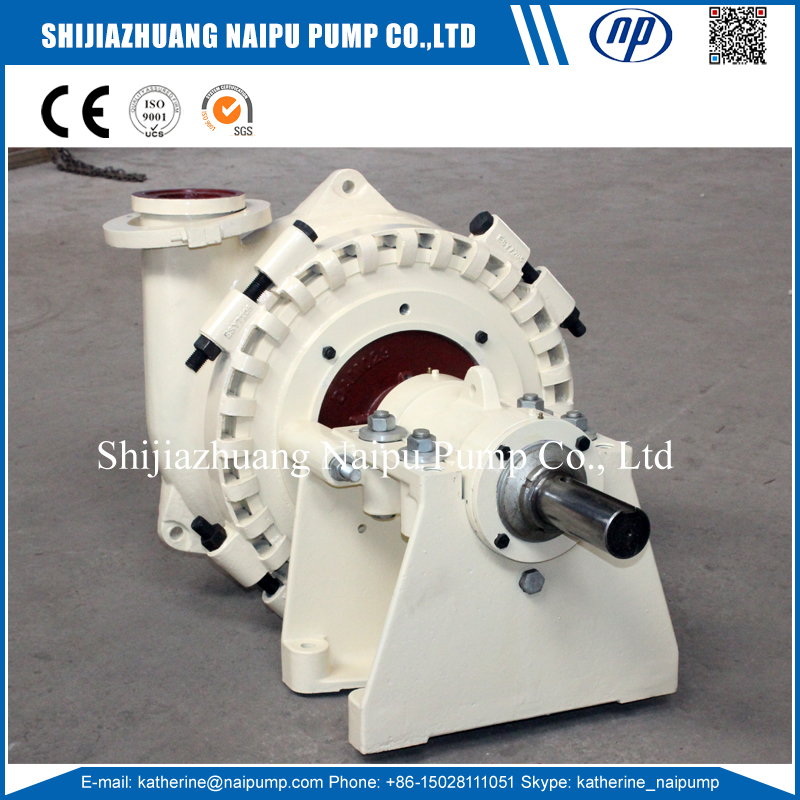

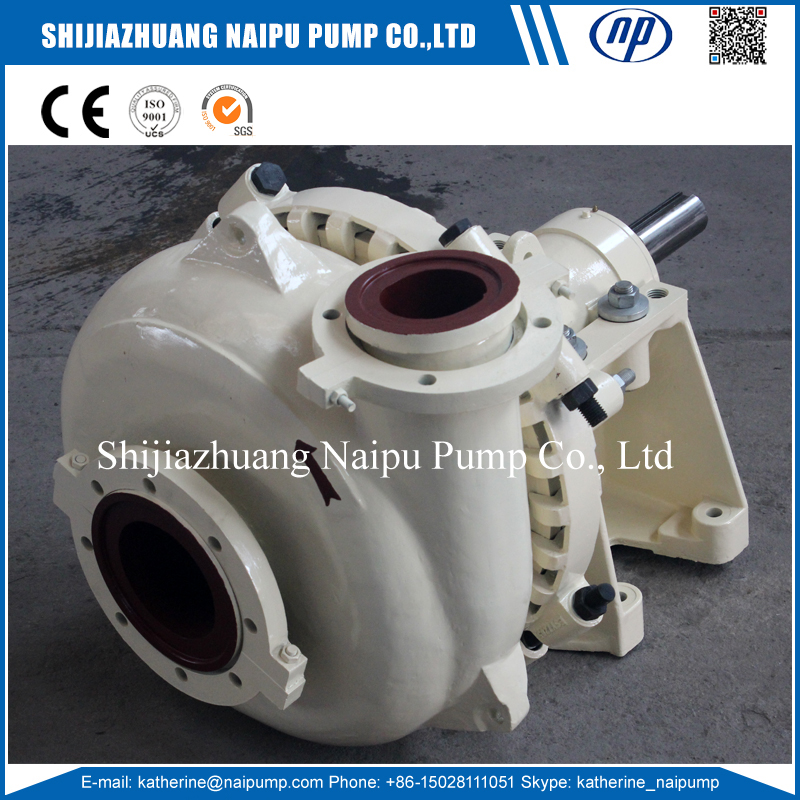

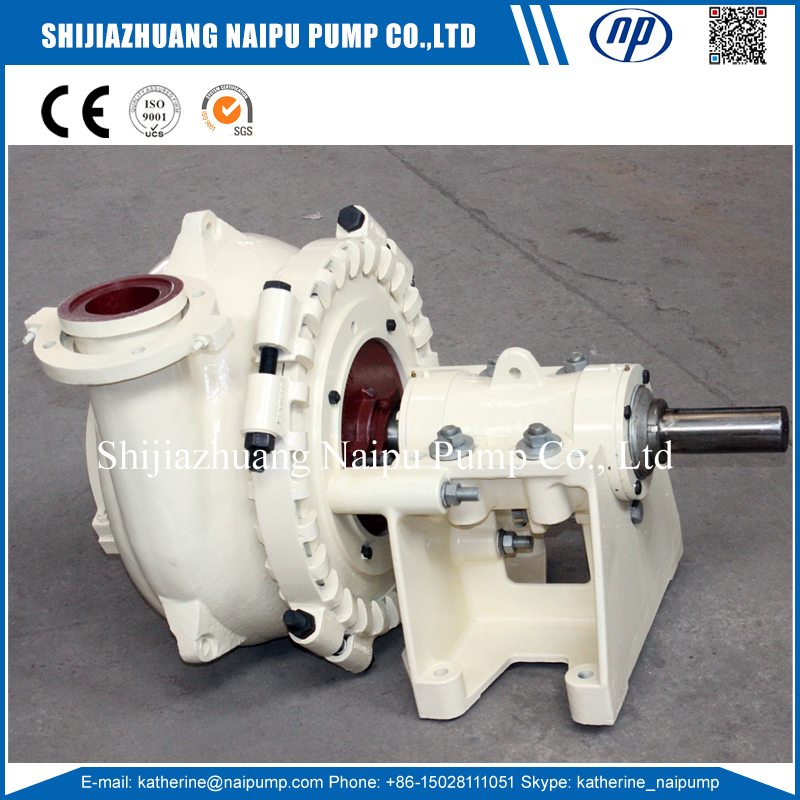

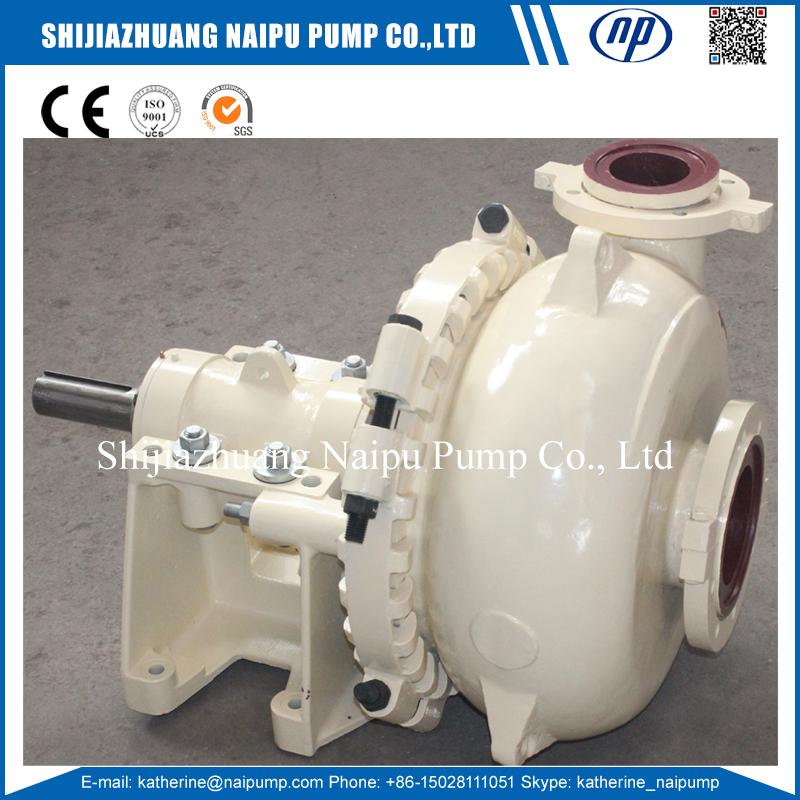

6/4 D-G Small Sand Dredge Slurry Pump

6/4 D-G sand slurry pump spares part code no.: DAM117C21, DAM078G01, DAM028G01, DAM029G01, DG4131A05, DG4137A05, DG4041A05, DG4032MA05, EG6124S10, DAM073ME05, DAM005M

4 Inch Sand Pump Casing, shaft, throat bush, wear plate, case, cover, stuffing box, lantern restrictor, cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner

6x4 G Pump

G Sand Pump Advantages:

Horizontal Slurry Pump

NP-G Gravel Sand Horizontal Slurry Pump Performance Parameters

Model	Flow (m3/h)	Head (m)	Speed (r/min)	Efficiency (%)	Motor (kw)	Drive type
6/4 D-G	187-36	7-51	1400-600	30-58	52-3	CV.CR.DC
8/6 E-G	576-133	10-48	1400-800	60-54	88-11	CV.CR.DC
10/8 F-G	930-216	11-44	940-500	65-34	147-22	CR.DC
12/10 G-G	1512-360	11-58	850-400	70-50	305-24	CR.DC
14/12 G-G	3168-522	9.5-66	700-300	68-60	643-29	CR.DC
16/14 TU-G	3024-900	14-45	500-300	70-50	459-78	CR.DC
8/6 F-GH	648-126	15-77	1050-500	71-50	177-12	CR.DC
10/8 F-GH	1091-324	19.2-56.5	800-500	72-60	205-32.4	CR.DC
12/10 G-GH	2232-612	28-77	700-450	73-60	558-89	CR.DC
16/14 TU-GH	3450-1000	72-25	500-300	78-65	2-8	CR.DC
18/16 TU-G	3600-1050	42-12	250-450	60-72	2-8	CR.DC
18/16 TU-GH	4300-1350	70-18	250-500	60-70	2.5-8	CR.DC

6/4 D-G Small Sand Dredge Slurry Pump

River Suction Pump

River Sand Water Pump Main Part Number at the Drawing

003: Base 005: Bearing Assembly 132: Intake Joint Discharge Joint 130: Discharge Flange Intake Flange 013: Cover Plate	131: Bowl 137: Impeller 041: Back Liner 135: Door Clamp Ring 134: Adapter Plate Clamp Ring 124: Volute Cover Seal

003: Base
005: Bearing Assembly
132: Intake Joint
Discharge Joint
130: Discharge Flange
Intake Flange
013: Cover Plate

131: Bowl
137: Impeller
041: Back Liner
135: Door Clamp Ring
134: Adapter Plate Clamp Ring
124: Volute Cover Seal

Any question please contact Katherine Hou freely.

6x4 G Sand Pump
