football screen
3 year ago
Product Introdution

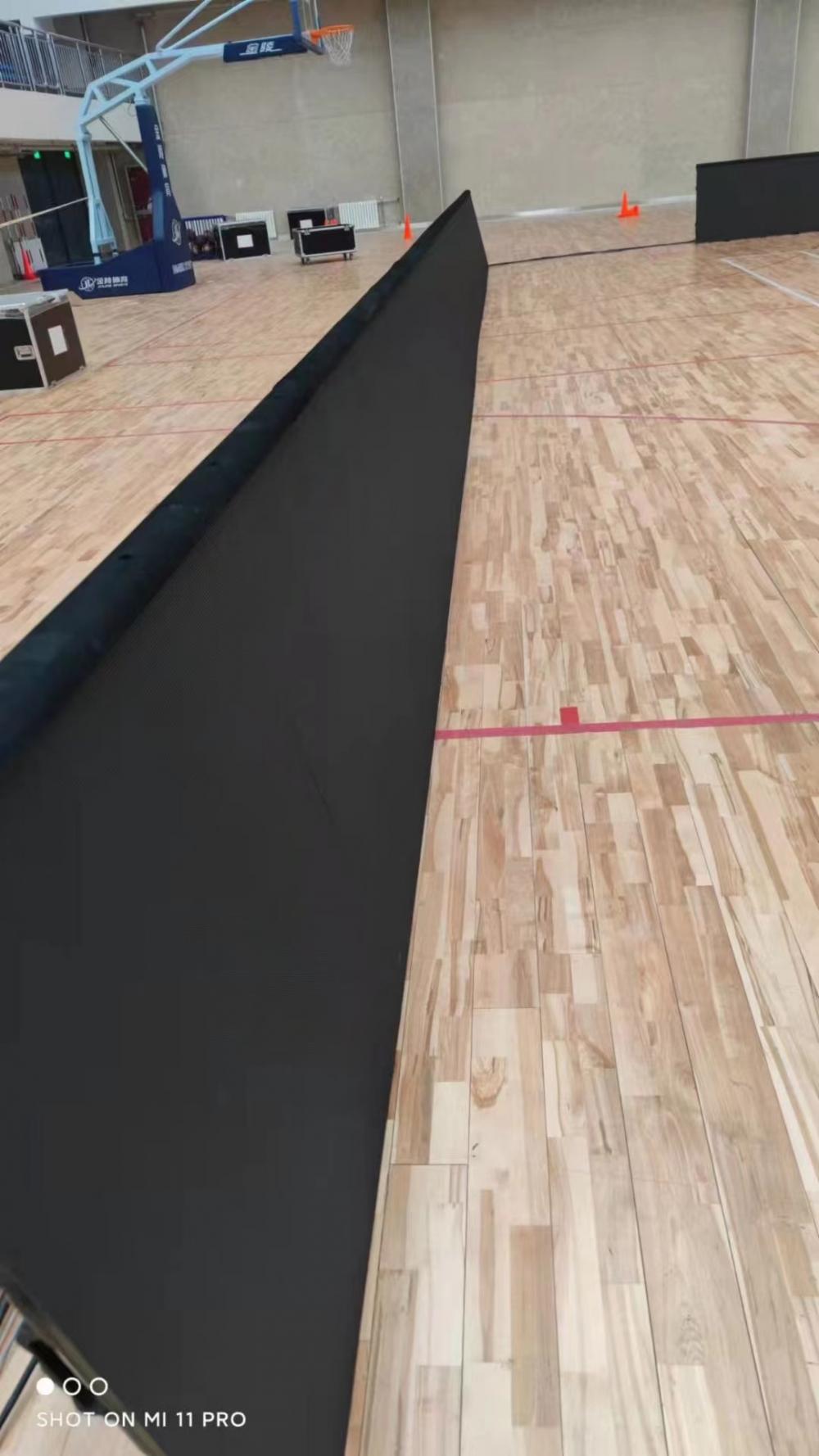

Good Price Product for Professional Football Stadium Display:The P10 Outdoor Football Stadium Perimeter LED Screen Panel is a high-quality LED display panel designed for use in outdoor sports stadiums. It is specifically designed to be used as a perimeter display around the edge of a football field, providing clear and bright visuals to spectators.
The panel is designed to be durable and weather-resistant, with a rugged aluminum frame and a waterproof rating of IP65. This means that it can withstand rain, wind, and other harsh weather conditions without being damaged. The panel is also designed to be easy to install and maintain, with a modular design that allows for easy replacement of individual modules if they are damaged or need to be upgraded.
Overall, the Football Stadium Advertising LED Screen P10 Outdoor Football Stadium Perimeter LED Screen Panel is an excellent choice for any sports stadium looking to upgrade their perimeter display. Its high-quality LED modules, durable construction, and easy installation make it a reliable and cost-effective option for any stadium.
Application
The panel is made up of individual LED modules that are connected together to form a seamless display. Each module is made up of high-quality LEDs that provide bright and vibrant colors, even in direct sunlight. The P10 Outdoor Football Stadium Perimeter LED Screen Panel has a pixel pitch of 10mm, which means that it has a high resolution and can display detailed images and text.
Packing Solution
Packing way: Wooden box
Data Sheet
|
MAIN TECHNICAL PARAMETERS FOR OutDOOR LED DISPLAY(PITCH10) |
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
10 |
|
|
（Panel size） |
MM |
L320*H160*T13 |
|
|
（Physical density） |
/M2 |
10000 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/4 Constant current 1/4scan |
|
|
（LED Encapsulation） |
SMD |
3535 |
|
|
（Display resolution） |
DOTS |
32*16=512 |
|
|
（Module weight） |
KG |
0.2 |
|
|
（Module port） |
|
HUB-HD75 (2) |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
23 |
|
|
Panel Parameters |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
8-30 |
|
|
（Driving device） |
|
IC:1065s |
|
|
（Every square metre module） |
PCS |
19.5 |
|
|
（Maximum power） |
W/ M2 |
450 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
7680HZ |
|
|
（Equilibrium brightness） |
CD/ M2 |
≥5500-6500mcd |
|
|
（Working environment temperature） |
0C |
-10~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC47~63HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
7000K-10000K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NovaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP65 |
|
|
（Steel box size） |
mm |
L640*h640/960x960 |
|
