5mm LED 520nm 10 degree Green LED
3 year ago

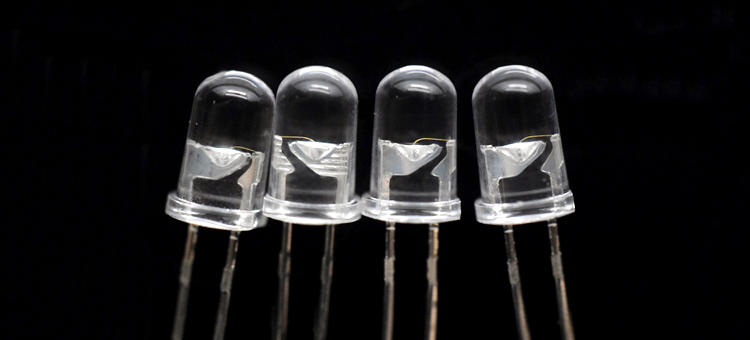

- 5mm Green Through-hole LED -
504LGC52D7L12
Now LED lighting has spread throughout our life, LED energy consumption and incandescent lamp reduce about 80%, compared with energy-saving lamp reduce about 40%. 503LGC52D7L12 are the brightness green LED lamp in LED industry. Which can reach 20000-30000mcd when you pass the current to it. Many people think that the light emitted by LED is white, in fact, it is red, but the brightness is very weak. When gallium arsenide is added, the LED emits red. With the development of science and technology, there are some other colors: doping gallium phosphide makes led emit green light, doping silicon carbide makes led emit yellow light and so on.
- Size: 5mm Diameter 8.7mm High
- Pin length: 27mm
- Color: Green LED
- Type: water clear
- Chip brand: EPISTAR
- Different color are available
- Different wavelength are available
- Warranty: 5 Years
- RoHS, REACH, EN62471
- Uniform light output
- Long life-solid state reliability
- Low Power consumption
-Anti UV epoxy resin package
-High temperature resistance
-Dimension Parameters -
These case are also available for Blue Through-hole LED, Red Through-hole LED, UV LED, IR LED, Amber LED, Yellow LED etc.

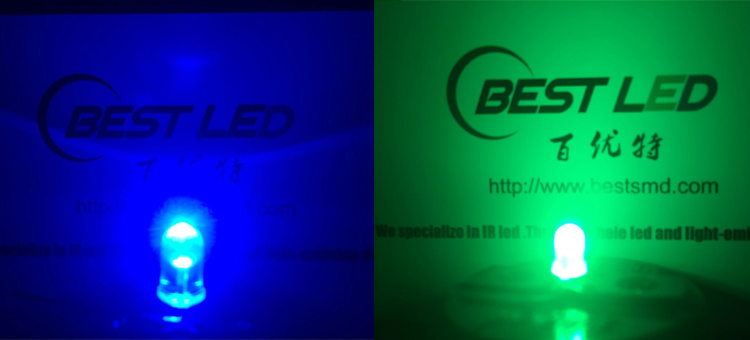

- Emitting Color -
*Colors in the photo was took by camera, please take actual emitting color as standard.
- Electrical Parameters -
|
Parameter |
Symbol |
Rating |
Unit |
|
Power Dissipation |
Pd |
102 |
mW |
|
Pulse Forward Current |
IFP |
100 |
mA |
|
Forward Current |
IF |
≤30 |
mA |
|
Reverse Voltage |
VR |
5 |
V |
|
Junction Temperature |
Tj |
100 |
°C |
|
Operating Temperature |
Topr |
-40 ~ +80 |
°C |
|
Storage Temperature Range |
Tstg |
-40 ~ +100 |
°C |
|
Soldering Temperature |
Tsol |
260 |
°C |
|
Electro-Static-Discharge(HBM) |
ESD |
1000 |
V |
|
Warranty |
Time |
5 |
Years |
|
Antistatic bag |
Piece |
1000 |
Bag |
Parameter
Symbol
Min
Typ
Max
Unit
Test Condition
Forward Voltage
VF
2.8
3.0
32.4
V
IF=20mA
Luminous Intensity
IV
30000
50000
mcd
IF=20mA
Peak Wavelength
λP
520
nm
IF=20mA
Dominant Wavelength
λD
518
520
524
nm
IF=20mA
Half Width
Dl
15
nm
IF=20mA
Viewing Half Angle
2q1/2
±10
deg
IF=20mA
Reverse Current
IR
5
uA
VR=5V
- Golden Wire Connection -
- Packing -
*We package this LED with 1000pcs in a bag Normally. We also can package it as your requirement.
- Application -
- Related Green Through-Hole LED -
- Production -
- Use -
