Hollow Anchor Rod

Product Introduction

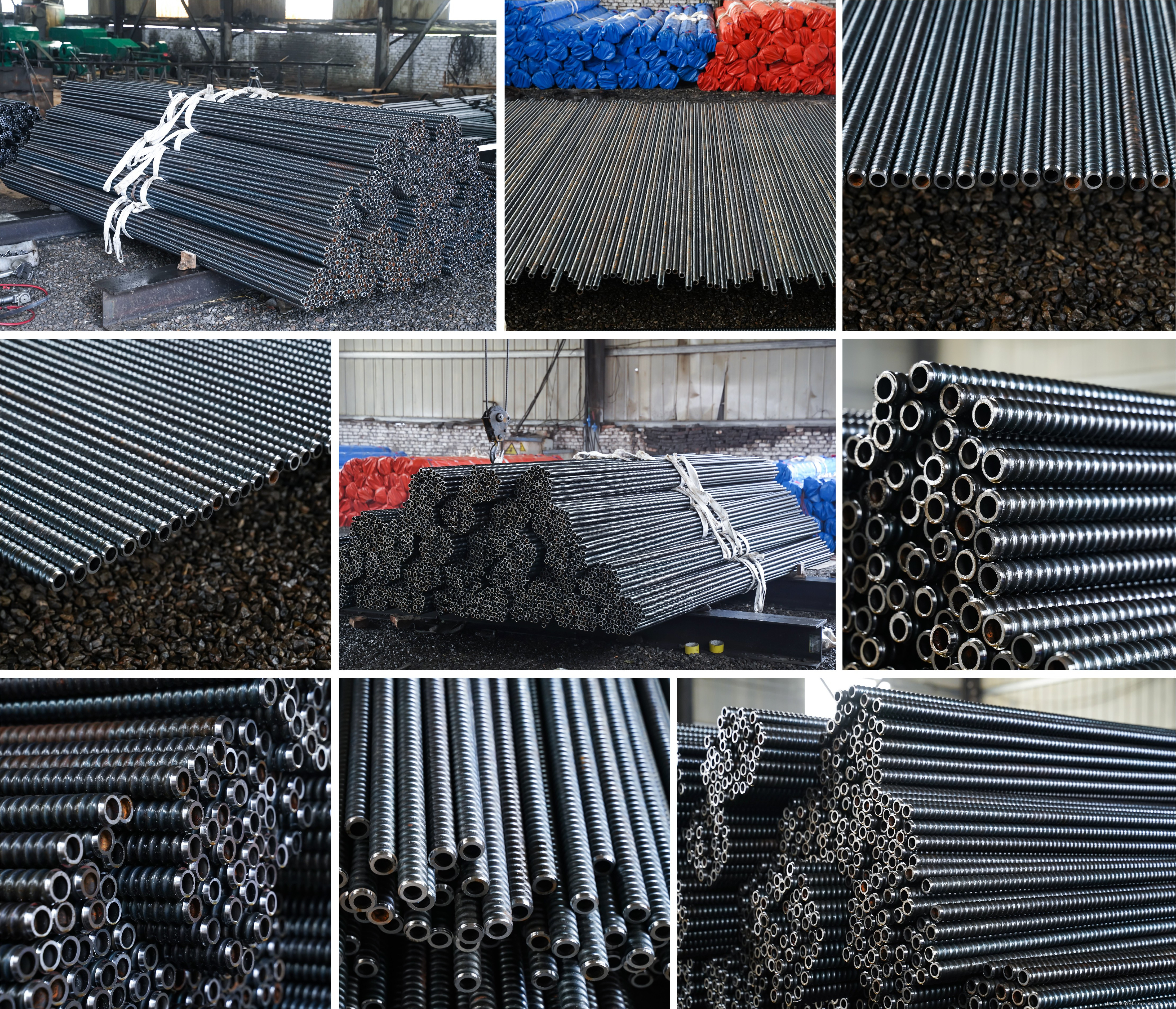

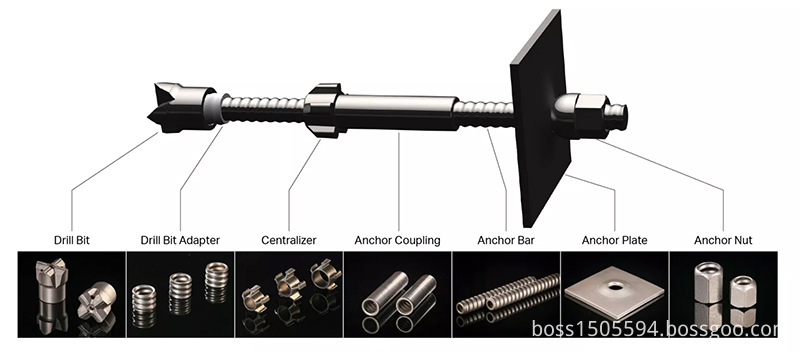

Hollow anchor rod means a bar that transfers the structures or geotechnical load to a stable rock formations, anchor bolt consists of bar, drill bit, coupling, plate, grouting stopper and nut. Widely used as an efficient anchoring means, in tunnel pre-support, slope, coast, mine, water conservancy projects, building foundation, roadbed reinforcement and geological diseases treatment such as landslip, crack, sink age. It’s irreplaceable in narrow construction environment. Hollow anchor bar is made of seamless steel pipe with high strength.

Features of Hollow Grouting Anchor Bar :
Hollow design, implement the grouting tube function, avoid the mortar loss when the traditional grouting tube pulled out.Grouting full, and can achieve the pressure grouting to improve project quality.
Center is good, mortar can wrap the bolt body together, so that it can avoid corrosion to achibe along term supporting purposes.
Easy installation, without onsite processing of threads. It can be easily installed an plate, nut.
Selt-Drilling Anchor Bar Description :
It may bodies drilling, grouting and anchoring as a whole.
It has a wide specifications. Diameter: 25-130mm.
Quality and easy construction, high efficiency.
Used invious surrounding rocks.

Product Specification

R-Thread Anchor Rod Technial Data

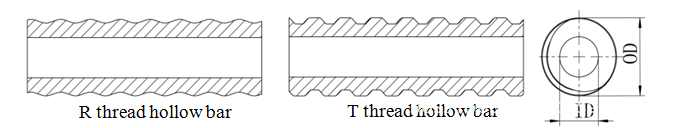

R thread anchor bar or called rock rod, soil nail, which is a kind of threaded hollow bar, bar surface with an rope thread according to ISO 10208 & 1720. It was firstly invented by MAI on 1960S to solve the low construction speed on complicated underground works, nowadays; it is very popular all around the world.
Thread size: R25, R32, R38, R51, T76.
Thread standard: ISO10208, ISO1720 etc.

T-Thread Anchor Rod Technial Data

T thread anchor bar surface with a trapezoidal thread, this design of connection is much stronger and reliable when compared with rope thread, we supply full sizes from T30 to T103.
Thread size: T30, T40, T52, T73, T103, T127, T130.
Thread standard: ISO10208, ISO1720 etc.

Product Test

Technology Process
The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling,anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles etc projects.
1. Connect the alloy drill and anchor rod one end, on the other end, connect the drill sleeve and shank adapter, then connect the drilling rig or hand-held drill. Then start drilling, fill the cooling water while drilling.( If you want to lengthen the anchor rod, can connect the coupling, and then drilling)
2. Take down the drill, put the stop-grouting plug into the rod, and insert it to the hole, then ready to grout. Special circumstances like surrounding rock grouting tension is over or surrounding rock is too broken, can use anchor agent to seal the hole.
3. Connect quick grouting coupling and anchor rod end, connect other end of grouting machine.
4. Start grouting, when grouting full and reach design value then power off. Grouting pressure according to the design parameters and grouting machine performance determine, Cement/sand reference values is 1:0 ~ 1:1, water/cement reference value is 0.45:1 ~ 0.5:1.
5. Install anchor plate and nuts, and tighten nuts.

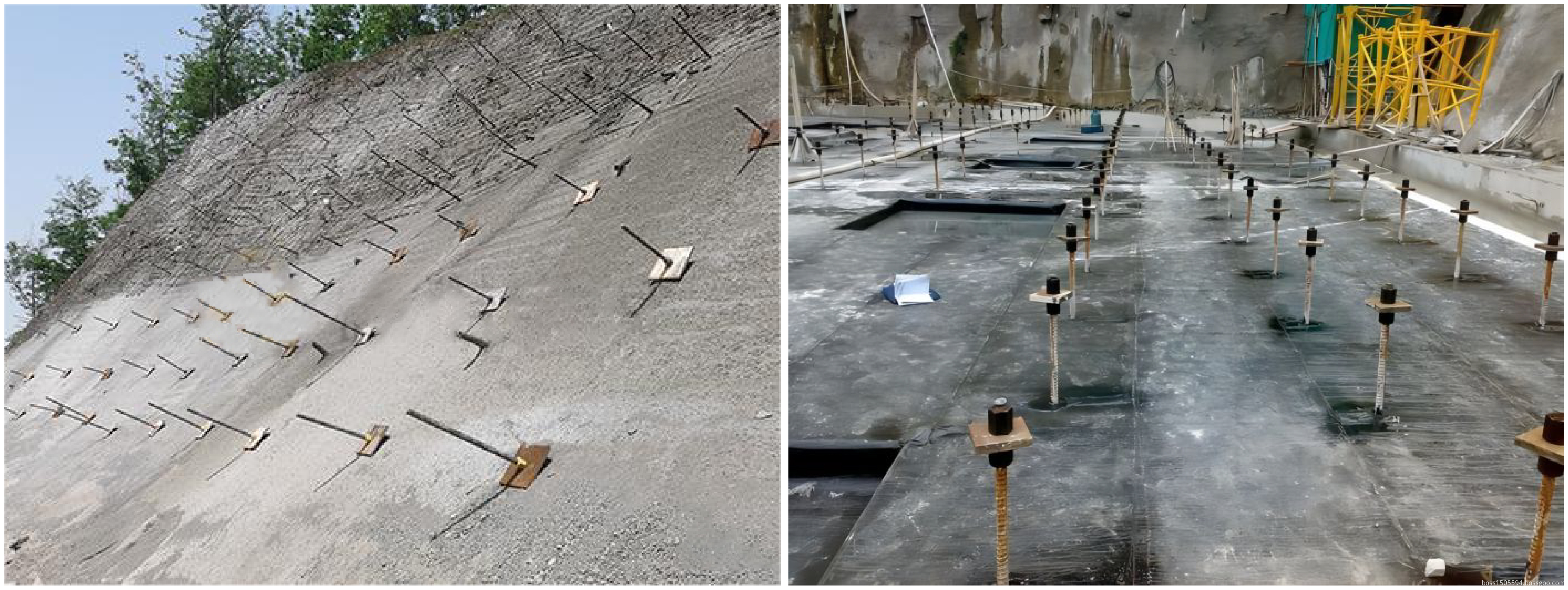

Application:
During the constructions of underground works, it is very common to encounter soft rock, fractured zone and large deformation due to high ground stress. In the case of serious collapsing, grouted rock anchors extra-long anchor is needed instead of ordinary one.

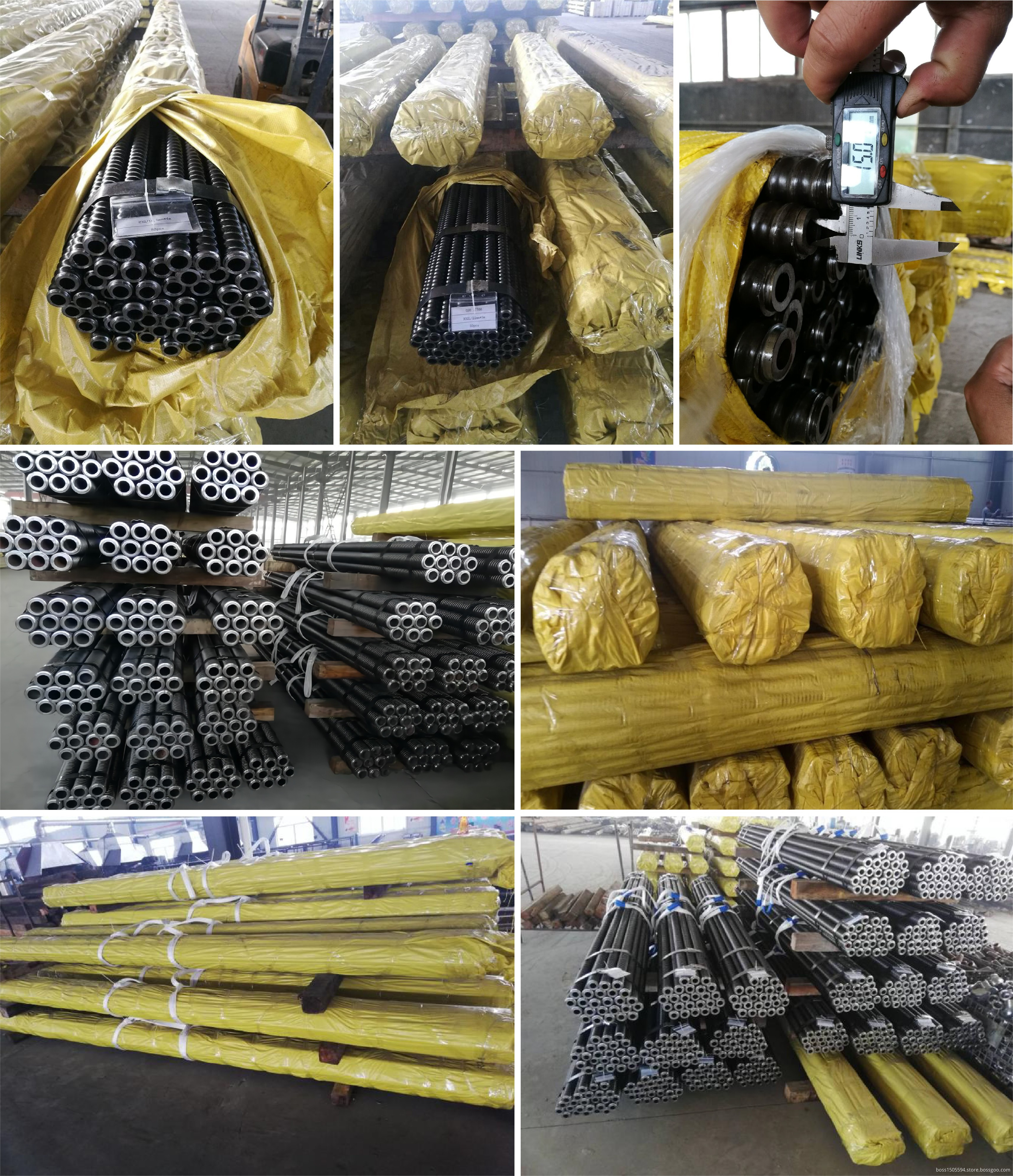

Packaging And Transportation

The packaging is packaged in tarpaulins and wooden boxes to ensure that it will not rust and corrode in the process of encountering water.
