aluminium pipe
2 year ago
The common applications that the 6061 aluminum alloy is used for include jigs, machine parts, marine components, fasteners, truck components, appliance fittings, camera lens mounts and electrical fittings. For heavy duty structures that need high corrosion resistance and a good strength-to-weight ratio, 6061 aluminums can be used for this purpose.
Forging can be used for this product, which is recommended to be done at temperatures sitting between 750 and 900 degrees F. Hot working should be done using a temperature between 500 and 700 degrees F. When solution heat treating is needed, it can be done continuously at 990 degrees F, thoroughly heating the metal. Water quenching should be done afterward. In order to harden this metal, 320 degrees F should be used continuously for 18 hours, then air cooling should follow. Then another eight hours of 350 degrees F, followed by air cooling.
Annealing is sometimes needed, which is recommended to be done continuously at 775 degrees F for two to three hours. A controlled dropping of the temperature should be applied, dropping 50 degrees F each hour until 500 degrees F is reached, then followed by air cooling.

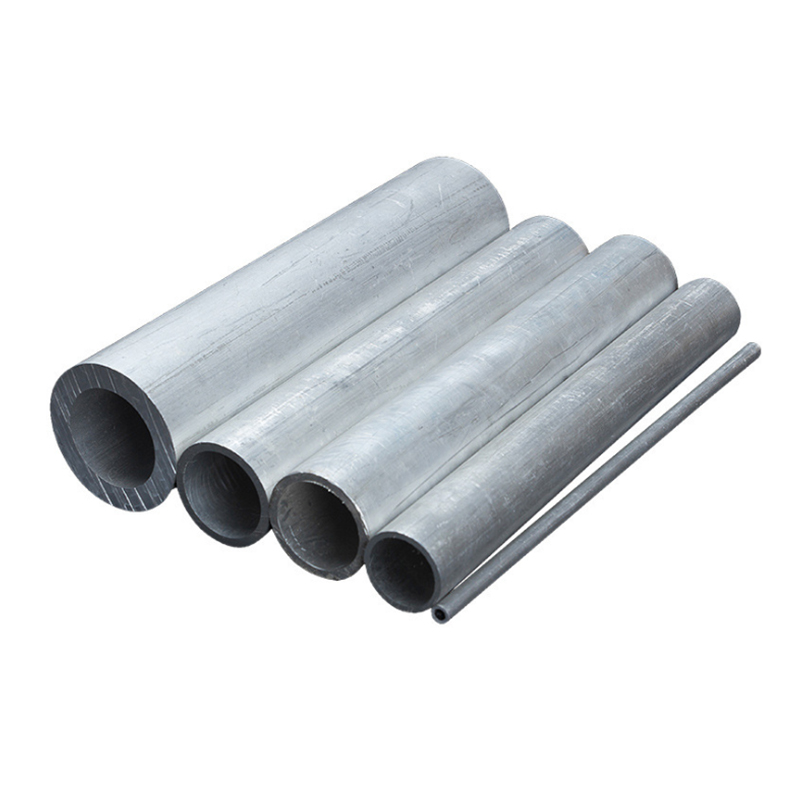

The 6061 aluminum pipe is available in outside diameters between .5 and 4 inches round with various inside diameters. Length is up to 240 inches.
7075 aluminum alloy is a cold treatment forging alloy, high strength, much better than soft steel. 7075 is one of the most powerful alloys. 7075 aluminum alloy structure is close, corrosion resistance is strong, for aviation, marine sheet the best. Common corrosion resistance, good mechanical properties and anodic reaction. Small grain size makes the depth of drilling better performance, tool wear resistance, thread rolling is more different.
Material
Alloy Aluminum 6063,6061,6005,6082 or customer nominated
Temper
T3, T4, T5, T6 and other
Surface
Anodize, electrophoresis, powder coating, PVDF coating, wood grain painting, etc.
Colour
Any colour based on Standard Germany RAL Mark
Length
Not more than 16 meters
Good Package
Inner plastic film /outside carton/wooden pallets
Payment Method
T/T, L/C, etc
Delivery Time
Normally 2-4 weeks, Delivery time can be consulted.
Press Machine
500-12500 tons all together 93 press lines.
Fabrication
1. Furniture 2. Drilling; 3. Bending; 4. Cutting; 5. etc.
Certificate
ISO/TS 16949,DNV,IRIS,CCS,AFA,etc.
Dies
1. Using our dies, no fee;
2. Using customer drawing, opening dies, usually about 5~50 tons then the dies cost can be refunded.
3. Die cost is negotiable base on the order quantity
Capability
Annual output 800,000 tons
