sheet shearing and coil
3 year ago
Steel sheet cutting machine is a specific equipment matching with end joint of pile for cutting steel sheet. Its structure is simple with reasonable design, high degree of automation and simple maintenance. Therefore,it is convenient when using Spun Pile Joint Plate.
Technical Parameters
|
No. |
Name |
Technical Specification |
|
1 |
Input voltage |
AC440v± 5%, 60Hz, three-phase four wire system |
|
2 |
Cutting width range |
300mm |
|
3 |
Cutting length range |
1000 |
|
4 |
Cutting thickness range |
1.6-2.3mm |
|
5 |
Conveying speed |
6000mm/min |
|
6 |
Air source |
Max7.2kg∕cm² |
|
7 |
Motor power |
4Kw |
|
8 |
Machine weight |
1600Kw |
|
No. |
Name |
Description |
Remark |
|
1 |
Punching machine |
Provides cutting force |
Notes about rotation direction of motor running |
|
2 |
Material conveyor |
Conveys steel sheet after cutting |
|
|
3 |
Rolling machine |
Rolls the steel sheet after cutting |
|
|
4 |
Material Tray |
Holds bundles of steel sheet |
It is about 3m far away from punching machine |

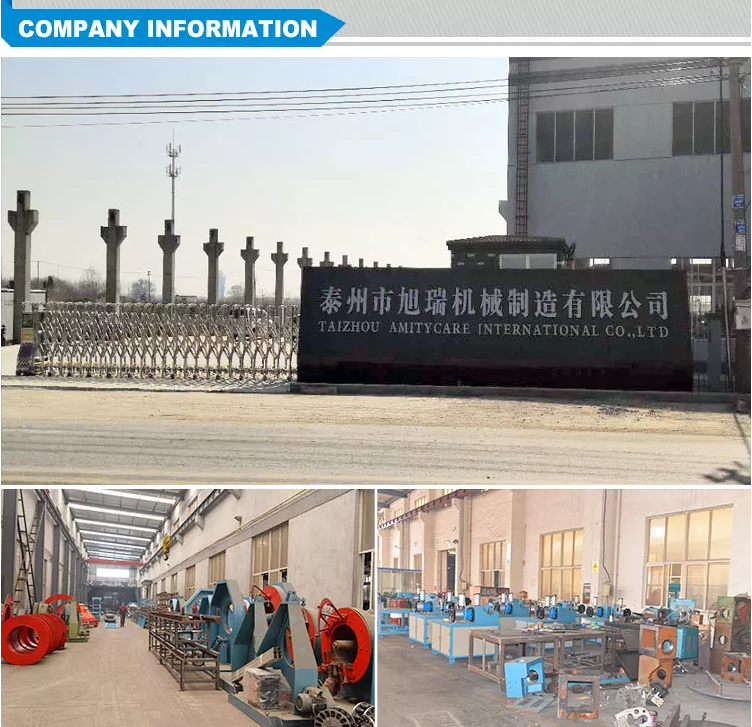

Company Information
Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui
machinery manufacturing co;, all abroad (overseas) tasks and international businesswill be
undertaken by "amity care ".
We are manufacturers of centrifugal spinning machine ,mould ,heading machine ,cutting
machine,cage welding machine , tension jack for pre-stress .feeding machine for different
capacity ,weave welding machine ,sheet cutting machine etc. we also can supply setting up
a new factory full line service . We have already exported various kinds of concrete pile ,
pole and pipe concern making machines to overseas countries and regions such as indonesia
,parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
