AH0801 IDC wire to board
2 year ago
Wire-to-board insulation displacement connector
are replacement of JST SUR Series connectors. 0.8mm pitch wire to board connector,low-profile compact tyle, IDC style without crimp terminal.
0.80mm pitch Housing Connector Specifications:
| Product Name |
0.8mm (.031") pitch
wire-to-board insulation displacement connector 0.80mm Pitch JST SUR wire to board IDC connector SUR CONNECTOR 0.8mm Pitch Disconnectable IDC |
| P/N: | AH0801-xP |
| Type | PCB Connectors /Wire to Board Connectors (IDC Type) |
| Compatible | JST SUR Series Connector |
| Pitch | 0.8mm |
| Pitch - Mating Interface | 0.5mm |
| Circuits | 2-22 |
| Applicable wire: | AWG#32,36 (Max.OD:1.0mm) |
| Poles | 2-22 poles |
| Material: | Nylon66 or LCP UL 94V-0 |
| Contact : | Phosphor Bronze |
| Plating : | Plated Tin or Gold Flash Lead over Nickel |
| Current rating | 0.5A |
| Voltage rating: | 30V AC,DC |
| Temperature range: | -35℃~+85℃ |
| Insulationresistance: | 100MΩ Min. |
| Withstanding voltage: | 200V AC minute |
| Contact resistance: | 20mΩ Max. |
| ATKCONN Main Product Range: | Connectors丨Wire Harness丨Board to Board Connector丨Wire to Board Connector丨Battery Holders丨Industrial Connector |
0.8mm (.031") pitch wire-to-board insulation displacement connector Features:
Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum pick and place equipment.3-point grip construction
The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage.
Super fine wires are applicable
Applicable wire is of AWG #32 with only 0.38mm (0.15") O.D. With this super fine wire, routing of wires is easy.

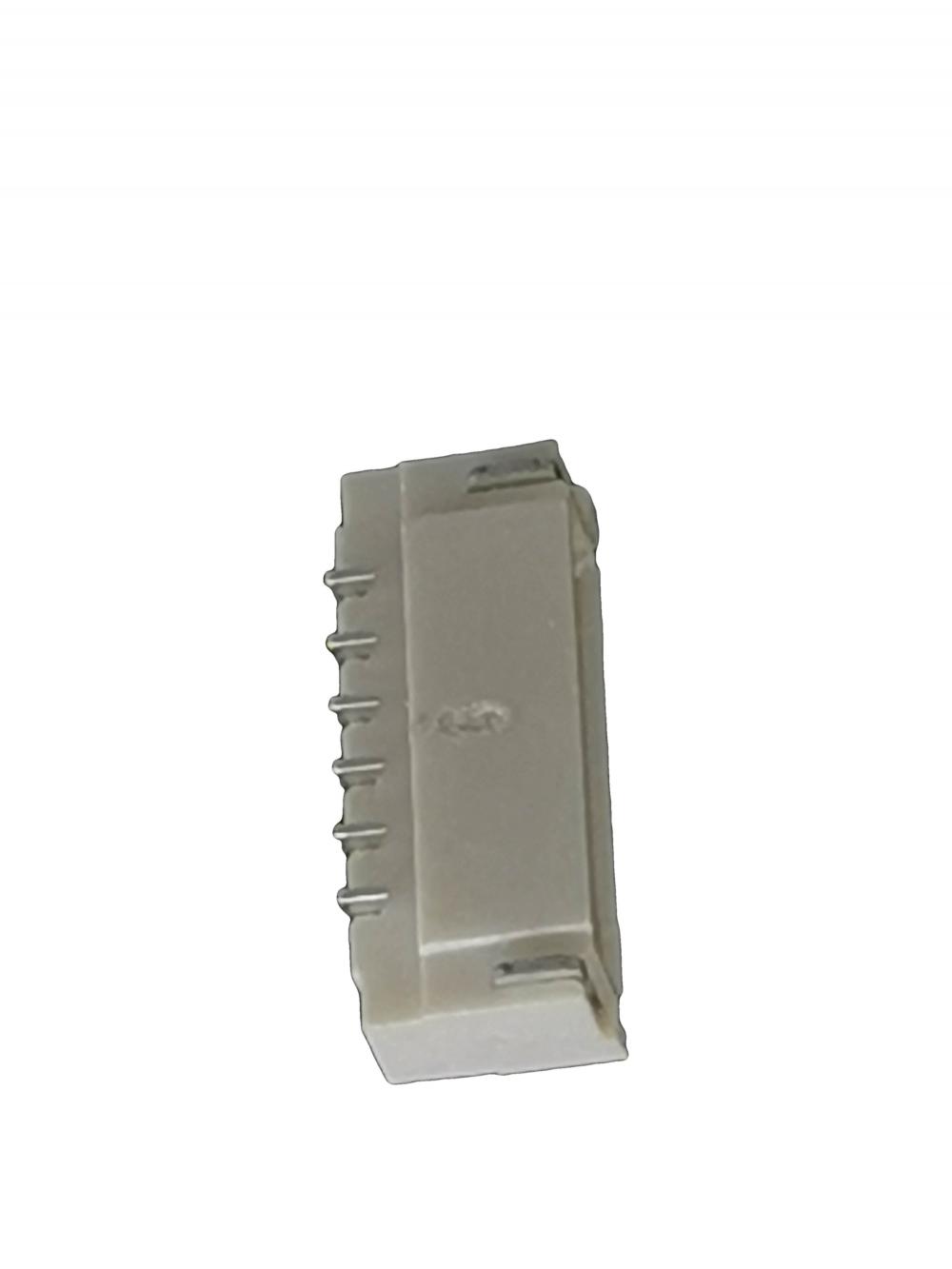

Shrouded header
The header is fully shrouded, but remains thin.
Twin U-slot insulation displacement section
The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
