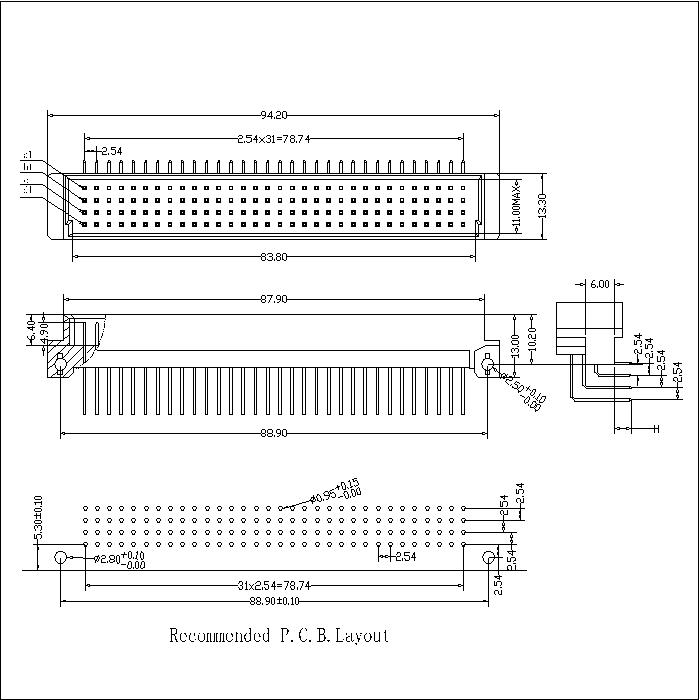

DMR-XX-XXX-402 DIN 41612 Right Angle Plug Type C C

DIN 41612 / IEC 60603-2 Connector Product introduction

The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications.

Eurocard Connectors per DIN 41612 and IEC 60603-2 Features
Various termination technologies possible
Leading and lagging contacts
Pre-centering
Variety of termination lengths
A range of accessories, such as shrouds, board locks, coding keys
Quick lock switch fastener for daisy chaining
Board locks and codes provide developers and users with additional safety and a wide range of possible applications.

DIN 41612 (EN 60603-2) PCB & Backplane Connectors Applications
Backplane daughter card, 19-inch technology (VME)
Board-to-board, parallel, or stacked
High-power

Connector Category: Din 41612 Eurocard Connector丨Solder Din 41612 Connector丨IDC Din Connectors丨High Power Din Connector丨

128 Pin Right Angle Type C Plug/Male  DIN 41612 / IEC 60603-2 Connectors/Eurocard Backplane Connector Specifications:

Current Rating: 2.0Amp
Insulation Resistance: 1000MΩ min.at DC 100V
Contact Resistance: 20mΩ max
Withstand Voltage: AC 1000V For 1 Minute
Operating Temperature: -55°C to +105°C
Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT+30%GF UL 94V-0
Insertion Force: 128 pin max.120N
Withdrawal Force: 0.15N min.per individual contact
