Herolaser Automatic Laser Welding Robot

Herolaser Automatic Welding Robot Robotic Equipment Automated Laser Welding

Herolaser automatic laser welding robot has the following features:

1. High precision: Herolaser automatic laser welding robot adopts advanced laser welding technology with precise welding positioning and control ability, which can achieve high precision welding operation.

2. high efficiency: Herolaser automatic laser welding robot has fast welding speed and response time, which can quickly complete the welding task and improve productivity.

3. Flexibility: Herolaser automatic laser welding robot has multi-axis degrees of freedom and flexible welding path planning ability, can adapt to different shapes and sizes of workpieces, to achieve flexible welding operations.

4. High degree of automation: Herolaser automatic laser welding robot adopts automated control system, which can realise automated welding process and reduce the need of manual operation.

5. Stability and consistency: Herolaser automatic laser welding robot has stable welding control and repeatability, which can ensure the stability and consistency of welding quality.

Product Description

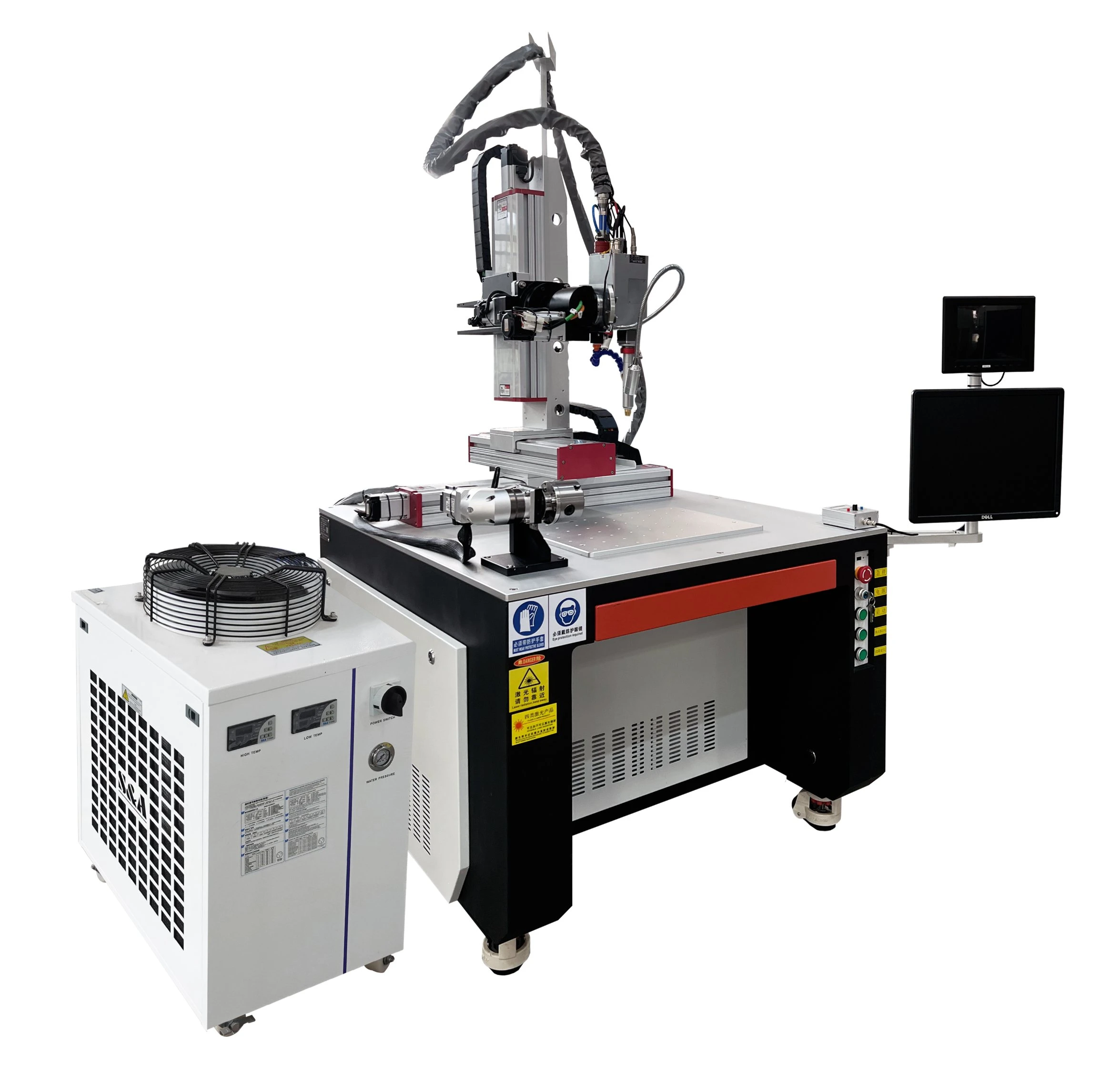

Six-dimensional automatic welding machine

Hero laser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.

It can also be equipped with a four-dimensional ball screw table, using an imported servo control system, including a rotating table, which can weld cylindrical objects and other objects of various shapes, with a wide range of applications, high precision and fast speed.

The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.

Seven advantages of automatic laser welding machine



1. Optical fiber laser automatic welding machine is used for non-contact distance welding;

2. Optical fiber laser automatic welding machine is used to weld refractory materials such as titanium and quartz, and can weld different materials with good effect;

3. Automatic laser welding machine features small transformation, high speed and large depth;

4. The automatic optical fiber welding function is adopted, which can be carried out under normal temperature or specific environment, and the equipment is easy to install. For example, if the laser passes through an electromagnetic field, the beam will not shift. The laser can weld in vacuum, air and some gas environments, or through glass or transparent materials of the beam;

5. The optical fiber automatic laser welding machine is adopted, which can easily realize the beam splitting in time and space, and can simultaneously complete the processing of multiple beams and multiple stations, creating conditions for improving the welding accuracy.

6. After the laser is focused, its energy density is high. In the welding of high-power equipment, its depth width ratio can reach 5:1, and the maximum can reach 10:1.

7. The automatic laser welding machine focuses the laser, and the light spot obtained is very small and accurate, which is suitable for the combination welding of micro parts in large-scale automatic production.



Applications






Product Parameters



Main technical parameters of the equipment
Product Specifications
S/N	Main component name	Parameter
1	X axis effective stroke	500mm
2	Y axis effective stroke	300mm
3	Z axis effective stroke	300mm
4	Dimensions	1500×1400×1900mm
5	Machine weight	280kg
6	Module operating speed	Y axis:10m/min
		X axis:10m/min
		Z axis:5m/min
7	repeated positioning accuracy	±0.02mm
8	Rotating table	Circle runout accuracy ≤0.05mm
9	electricity demand	220V/380V
10	Average load power	6.5KW



Equipment configuration list
Configuration Parameter
S/N	Name	Specifications & Models	QTY	Brand	Remark
1	Fixture mounting plate	350mm×450mm	1	Herolaser
2	Laser	According to sample welding requirements	1	MAX or IPG
3	Motor	servo motor	3	Huichuan
4	Computer	PC/Industrial Computer	1	Advantech
5	Chiller	According to laser power	1	S & A
6	Welding head	According to sample welding requirements	1	Herolaser
7	CCD Visual observation system	camera	1	Microsan
		light source		Basler/LeTV Light Source
8	Z axis module	300mm stroke	1	Herolaser	X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7
9	X axis module	500mm stroke	1	Herolaser
10	Y axis module	300mm stroke	1	Herolaser
11	Rotating table	Three-jaw rotary chuck	1	Herolaser
12	Lower cabinet	Sheet metal welding, paint baking	1	Herolaser
