Product details

Product Introduction

API 5L line pipe (Seamless and welded pipe) of all grades have PSL1 and PSL2 two product specifications, they are different on chemical composition, manufacturing processes, mechanical strength, heat treatment, test records, traceability etc.

PSL is the short name of product standard level. The product standard level of line pipe have PSL1 and PSL2, also we could say the quality standard divided in PSL1 and PSL2. PSL2 is higher than PSL1, not only the inspection standard is different, also the chemical property, mechanical strength standards are different. So when place the order for the API 5L line pipe, there should be stated clearly for the size, grades these general specification, also have to clarify the production standard leve, PSL1 or PSL2.

ERW Welded Steel Pipe

Product Specification

Description	Spiral welded steel pipe, Straight seam welded steel pipe, Carbon steel tube, ERW steel tube, EFW steel pipe
Standards	API 5L ERW PSL1/PSL2, EN39, BS1139, BS1387, EN10255, ASTM A53, A500, A36, A795, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793
Certificate	API 5L ERW PSL1/PSL2, API 5CT, CE, ISO
Material	Q195, Q215, Q235, Q275, Q295, Q345, S275, S355, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8
	ASTM A53: Gr.A, Gr.B, Gr.C, Gr.D
	API 5L: Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70
	GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
	ASTM A252: Gr.1 Gr.2 Gr.3
Type	Spiral, ERW (Electrical Resistance Weld), EFW (Electric Fusion Welding)
Outside Diameter	6mm-2500mm (1/8 inch, 1/4 inch, 1/2 inch, 3/4 inch, 1inch, 1 1/4 inch, 1 1/2 inch, 2inch, 2 1/2 inch, 3inch, 3 1/2 inch, 4inch, 5 inch, 6inch, 8 inch, 10 inch, 12inch, 14inch, 16 inch, 18 inch, 20 inch, 22 inch, 24 inch, 26inch, 28 inch, 30 inch, 32 inch, 34 inch, 36 inch, 38 inch, 40 inch, 42 inch, 44 inch, 46 inch, 48 inch)
Thickness	1mm~220mm (SCH5 ,SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS)
Length	6m-12m,or as required
Outside Coating	Anti-rust oil, black painting.
	Epoxy Coating according to AWWA C-210
	Bitumen Coating according to DIN30672, BS534
	Coal- Tar Enamel Coating according to AWWA C-203
	3 Layer polyethylene Coating according to DIN30670
	3 Layer Polypropylene Coating according to DIN30678
Inside Coating	Epoxy lining according to AWWA C-210
	Bitumen Lining according to DIN30673, BS534
	Coal-Tar Enamel Lining according to AWWA C-203
	Cement Mortar Lining according to AWWA C-205, BS534
Testing and Inspection Reports	EN 10204 3.1, Mill TC EN 10204 3.1, Third Party Inspection Reports, Visual Inspection Reports, Destructive Test Report, Non Destructive Test Reports, PMI Test Reports, Chemical and Mechanical Reports, NABL Approved Lab
Price Term	EX-Work, FOB, CFR, CIF
Package	Wooden box, bundled for export standard or as required
Payment Term	T/T, L/C,
Delivery Time	25-45 days (based on quantity) after receiving advanced payment
Application	a) General service industries (petroleum, food, chemical, paper, fertilizer, fabric, aviation and nuclear) b) Fluid, gas and oil transport c) Pressure and heat transmission d) Construction and ornament e) Boiler heat exchangers

PSL2 is more strictly than PSL1 on the chemical properties, tensile strength, non-destructive test, and impact test.
API 5L PSL1 steel line pipe not required to do the impact test.
For API 5L PSL2 steel line pipe, except Grade X80, all the other grades of API 5L line pipe required the impact test at temperature of 0℃. The average value of Akv: longitudinal direction≥41J, tranverse direction≥27J.
For API 5L Grade X80 PSL2 line pipe, at 0℃ for all the size, impact test the Akv average value: longitudinal direction≥101J, tranverse direction≥68J.
For API 5L PSL2 line pipe shall perform the hydraulic test for each single pipe, and in the API standard specification not permit to have Non-destructive test replace the hydraulic test, this also is a big difference between Chinese standard and API 5L standard. For PSL1 not required Non-destructive test, for PSL2 shall do the Non-destructive test for each single pipe.
Chemical composition and mechanical strength is also different between API 5L PSL1 line pipe and API 5L PSL2 line pipe. For the detailed specification as below. API 5L PSL2 have restrictions with the carbon equivalent content, where for the carbon mass fraction greater than 0.12%, and equal or less than 0.12%. Different CEQ shall be applied. For line pipe in PSL2 tensile strength have maximum limits.

API 5L PSL 1 Chemical Composition and Mechanical Properties:

Standard	Steel grade		Chemical Compositions(%)				Mechanical Properties
			C(Max)	Mn(Max)	P(Max)	S(Max)	Tensile strength(Min)		Yield strength(Min)
			C(Max)	Mn(Max)	P(Max)	S(Max)	Psi X 1000	Mpa	Psi X 1000	Mpa
API 5L PIPE PSL 1	A25	CL I	0.21	0.60	0.030	0.030	45	310	25	172
	A25	CL II	0.21	0.60	0.030	0.030	45	310	25	172
	A		0.22	0.90	0.030	0.030	48	331	30	207
	B		0.26	1.20	0.030	0.030	60	414	35	241
	X42		0.26	1.30	0.030	0.030	60	414	42	290
	X46		0.26	1.40	0.030	0.030	63	434	46	317
	X52		0.26	1.40	0.030	0.030	66	455	52	359
	X56		0.26	1.40	0.030	0.030	71	490	56	386
	X60		0.26	1.40	0.030	0.030	75	517	60	414
	X65		0.26	1.45	0.030	0.030	77	531	65	448
	X70		0.26	1.65	0.030	0.030	82	565	70	483

API 5L PSL 2 Chemical Composition and Mechanical Properties:

Standard	Steel grade	Chemical Composition(%)				Mechanical Properties
		C	Mn	P	S	Tensile strength		Yield strength
		(Max)	(Max)	(Max)	(Max)	Psi X 1000	Mpa	Psi X 1000	Mpa
API 5L PIPE PSL 2	B	0.22	1.20	0.025	0.015	60-110	414-758	35-65	241-448
	X42	0.22	1.30	0.025	0.015	60-110	414-758	42-72	290-496
	X46	0.22	1.40	0.025	0.015	63-110	434-758	46-76	317-524
	X52	0.22	1.40	0.025	0.015	66-110	455-758	52-77	359-531
	X56	0.22	1.40	0.025	0.015	71-110	490-758	56-79	386-544
	X60	0.22	1.40	0.025	0.015	75-110	517-758	60-82	414-565
	X65	0.22	1.45	0.025	0.015	77-110	531-758	65-82	448-565
	X70	0.22	1.65	0.025	0.015	82-110	565-758	70-82	483-565
	X80	0.22	1.90	0.025	0.015	90-110	621-827	80-102	552-705

Carbon Steel API 5L B ERW Pipe Tolerance Chart

Tolerance on dimension
OD Tolerance		WT Tolerance
OD Tolerance		A, B		X42 ~ X70
D<60.3mm	+0.41/-0.40mm	D<73mm	+20%/-12.5%	D<73mm	+15%/-12.5%
D>=60.3mm	+0.75/-0.40mm	D>=73mm	+15%/-12.5%	D>=73mm	+15%/-12.5%

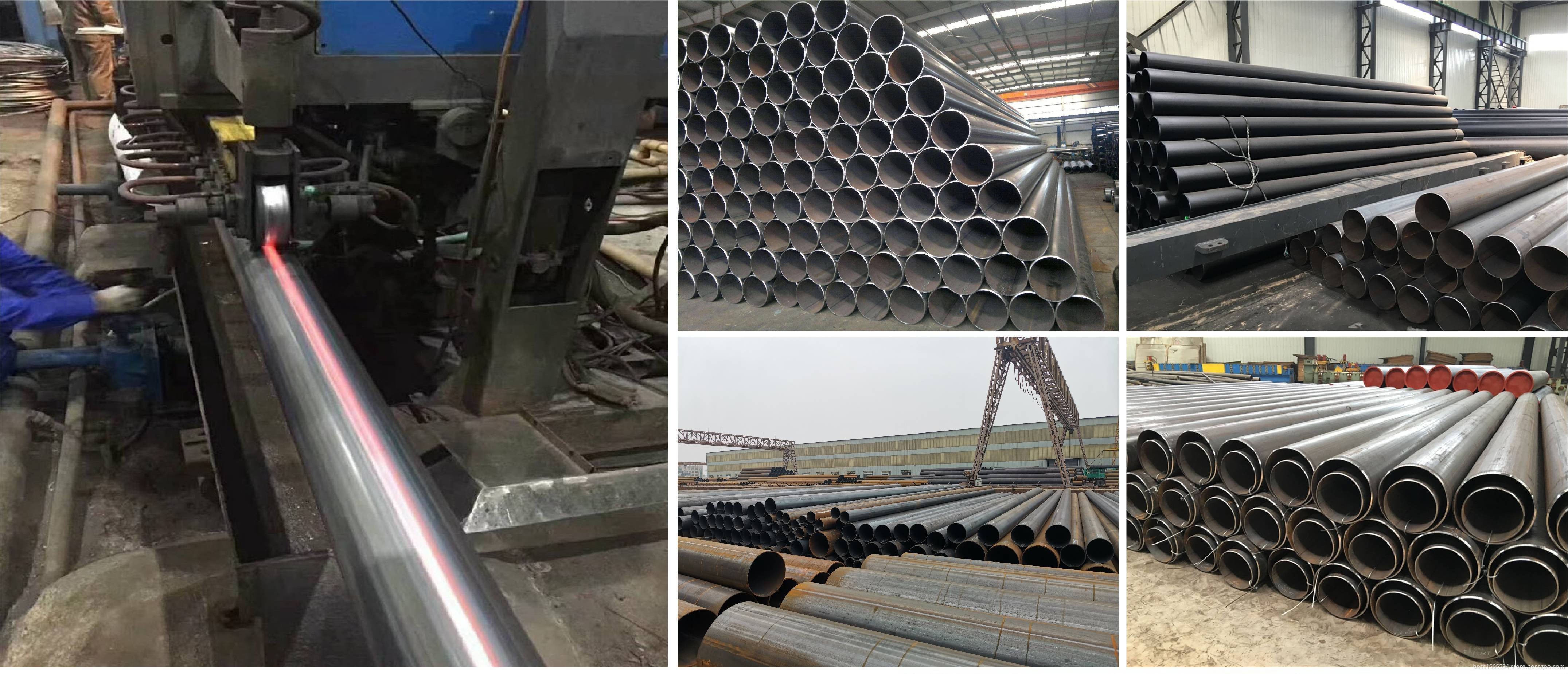

Product Display

Welded Steel Pipe

Packaging And Transportation

We offer different modes of transport depending on the customer's destination: rail transport and ship transport，etc.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards,Specifications, Package No., Contract No., Heat No., Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
