Laser Cutting Machine for 925 Silver 18k/24k Gold
100, 000 Hours Fiber Laser Source Cutting Machine for 925 Silver 18k 24k Gold
Laser cutting machines are versatile tools used in various industries for precise cutting of materials. They utilize a high-powered laser beam to cut through different types of materials, such as metals, plastics, wood, fabrics, and more. Here are some key points about laser cutting machines:
1. Types of lasers: There are different types of lasers used in laser cutting machines, including CO2 lasers, fiber lasers, and neodymium-doped lasers. The choice of laser depends on the material being cut and the desired cutting precision.
2. Cutting capabilities: Laser cutting machines can cut through a wide range of materials with great precision and accuracy. They can create intricate designs, sharp edges, and smooth finishes. The thickness of the material that a laser cutting machine can handle depends on the power and focal length of the laser.
3. Advantages: Laser cutting offers several advantages over traditional cutting methods. It is a non-contact process, which means there is no direct physical contact between the machine and the material being cut. This reduces the risk of material damage or warping. Laser cutting also provides high-quality cuts with minimal heat-affected zones and can be more time-efficient than other cutting techniques.
4. Applications: Laser cutting machines are used in various industries, including manufacturing, automotive, aerospace, jewelry, signage, electronics, and more. They can be used for cutting flat sheets, tubes, pipes, or 3D objects. The cutting precision and versatility make them suitable for a wide range of applications.
Product Description

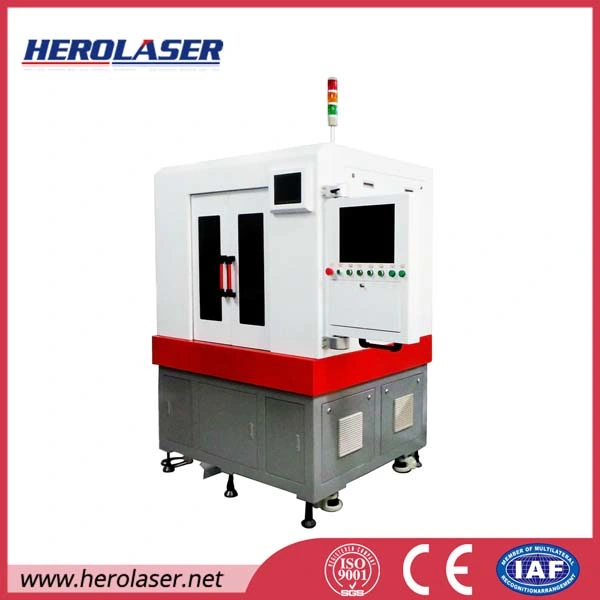

Machine description
This machine adopts highly accurate linear motor working platform, highest precision and fastest speed and is also equipped with highly precise CCD, automatic positioning and automatic correction. Automatically controlled by computer software, realtime feedback from software interface, noncontact processing program, no mechanical stress and deformation, easy operation and high precision cutting.
Characteristics:
Utility model patent, integrated style, which can carry the light source of different types and different manufacturers. Compact, reliable, safe, practical, reasonable in structure. Optical marble platform, antivibration frame design, which is suitable for high speed movement and with high stability.Linear motor with highest precision, fastest speed and unity feedback. And machine can be optionally equipped with large format highly precise visual positioning, automatically precise calibration.Multifunctional integrated control, selfdeveloped proprietary software. Automatically controlled by computer software, realtimefeedback from software interface, showing the manufacturing status of all functions and components. No contact processing program, no mechanical stress and deformation
Technical Specification:
Model | ML-WF500-3000W |
Laser Power | 500W-3000W |
Laser wavelength | 1080nm |
Beam quality M2 | <1.15 |
Cutting Range | 350mm X 600mm(Option) |
Max Cutting Speed | 14 m/min (up to the material) |
Repeat positioning accuracy | 0.02mm |
Pulse frequency | 1-50KHz |
Instability of output power | <2% |
Operation mode | Continuous |
Cooling Way | water cooling |
Power consumption | 5KW |
Minimum Line Width | 0.1-0.16mm (up to the material) |
Cutting Depth | ≤ 5 mm(up to the material) |
Driving Way | Imported Servo Motor |
Transmission Way | Imported Ball Screw |
Power Requirement | 220V/50Hz/50A |
Environment Temperature | 5ºC-35ºC |
Continuous Working Time | 24 hours |
Controlling system | IPC |
Applied area and materials
Widely used in metal crafts, metal products, precision machinery, auto parts, glasses, jewelry, nameplates,electronics, toys, advertising and other industries.
