8025 Series 12000W Fiber Laser Cutters Machine
Herolaser 8025 Series 12000W Fiber Laser Cutters Cutting Machine
The 8025 Series 12000W Fiber Laser Cutters Machine is a high-power and high-precision laser cutting machine designed for efficient and accurate cutting of various materials. It features a powerful fiber laser source, a large format worktable, and a high-precision motion system, making it capable of cutting thick and hard materials with high speed and accuracy.
The key features of the 8025 Series 12000W Fiber Laser Cutters Machine include:
High-power fiber laser source: The machine is equipped with a 12000W fiber laser source, which provides high-intensity and high-quality laser beams for efficient and precise cutting of various materials.
Large format worktable: The machine has a large format worktable that can accommodate large-size workpieces, enabling high productivity and efficiency.
High-precision motion system: The machine is equipped with a high-precision motion system that includes motorized axes and precision guides, ensuring accurate and controlled movement of the laser beam and the workpiece.
Advanced control system: The machine is equipped with an advanced control system that includes a user-friendly interface, programming software, and safety features, making it easy to operate and maintain.
High-speed cutting: With a powerful laser source and advanced cutting technology, the machine can cut thick and hard materials at high speed, significantly improving production efficiency.
Versatile material handling: The machine is designed to handle a wide range of materials, including metals, plastics, and composites, making it suitable for various applications.
Safety features: The machine is equipped with various safety features such as emergency stop buttons, safety guards, and interlocks to ensure operator safety.
Remote monitoring: The machine can be equipped with remote monitoring capabilities, allowing operators to monitor and control the cutting process remotely.
Overall, the 8025 Series 12000W Fiber Laser Cutters Machine is a highly capable and versatile laser cutting machine that can significantly improve production efficiency and quality in various industries.
Product Description
Herolaser 8025 Model Laser Cutting machine
ML-CZ-8025FB The sheet metal laser cutting machine adopts two-head mutual-moving laser cutting, and the processing area is large.
The negative pressure crawler working platform is equipped with left and right feeding and rewinding devices, which enables unwinding, cutting and rewinding in one go, which greatly reduces the time between procedures , Improve work efficiency and processing output.
Adopt two-side moving laser cutting,the processing area is large High precision and fast cutting.
Auto-sensing laser cutting head
High-speed idle, large robot, fast cutting response, corners are not easy to burn, the cutting head is in contact with the surface of the material ensuring that it will not be perfect.
Longmen dual-drive structure
Using rack and pinion dual drive transmission structure, high stability, high height, light weight, dynamic response.
Parameter:
| Model Parameters of High-Power Laser Cutting Machine | ||
| Optical Performance Parameters | ||
| S/N | Main component name | Parameters |
| 1 | Model | ML-CZ-8025FB |
| 2 | Processing size | 8000*2500mm |
| 3 | X/Y maximum speed | 100m/min |
| 4 | X/Y maximum acceleration | 1G |
| 5 | positioning accuracy | 0.03mm/m |
| 6 | Repeatability |
0.02mm/m
|
| 7 | Maximum load | 800kg |
| 8 | weight | 16000kg |
| 9 | Dimensions (length x width x height) | 190000x3650x2200mm |
Comparison of multiple types of cutting
| Process Name | Cutting Seam (mm) | Deformation | Accuracy | Graphic Changes | Speed | Cost |
| Laser Cutting | Very Small 0.1-0.3 | Very Small | Height 0.2mm | Be Prone To | Lower | Higher |
| Plasma Cutting | Less | More | 1Mm High | Be Prone To | Higher | Lower |
| Water Cutting | More | Small | High | Easy | Higher | Higher |
| Die Cutting | Less | More | Low | Hard | High | Lower |
| Sawing | More | Less | Low | Hard | Very Slow | Lower |
| Wire Cutting | Less | Very Small | High | Easy | Very Slow | Higher |
| Gas Fuel Cutting | Great | Serious | Low | Easier | Low | Lower |
| Electric Spark Cutting | Very Small | Very Small | High | Easy | Very Slow | Very High |

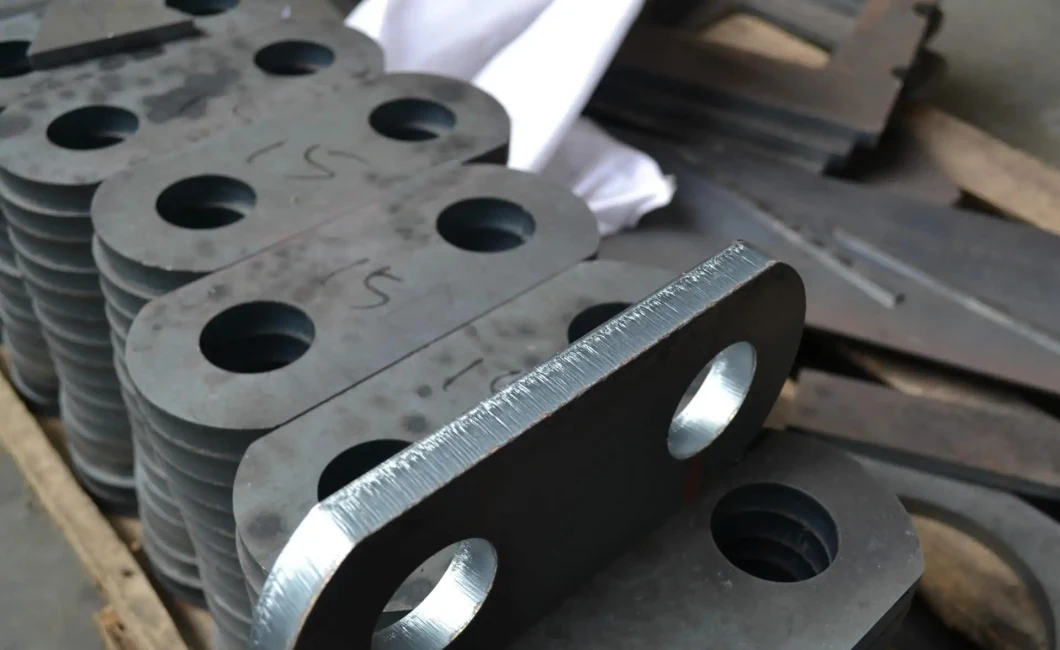

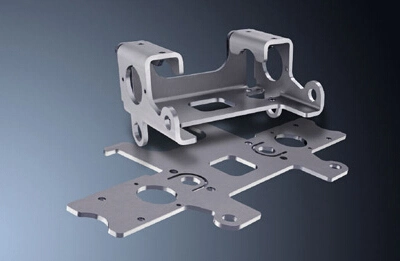

Cutting sample display
