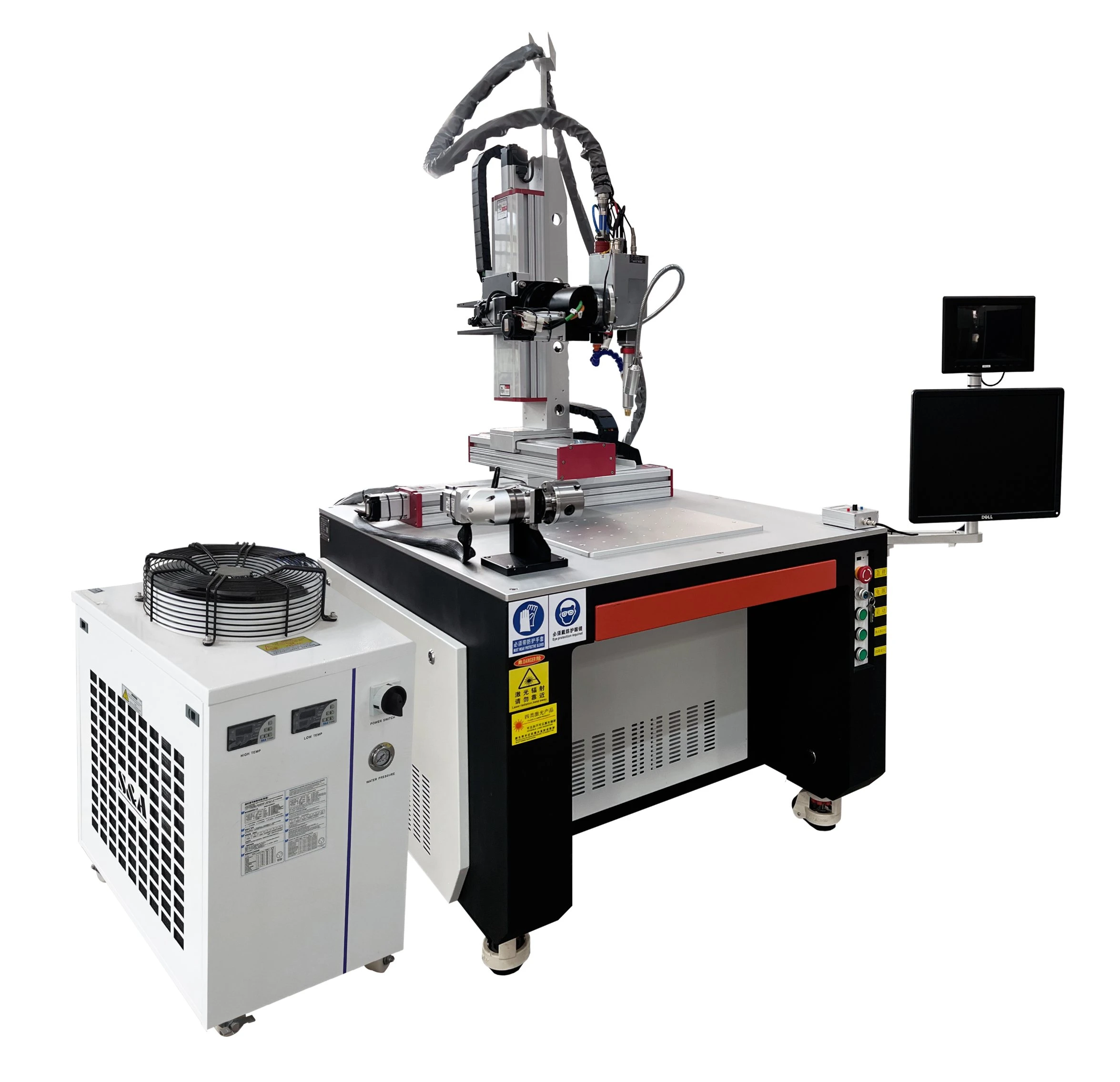

Automatic Laser Welding Machine For Metal Stainless Steel
Herolaser Automatic Laser Welding Machine Soldering Welder Metal Stainless Steel
Metal stainless steel automatic laser welding machine is a kind of automatic equipment dedicated to metal stainless steel welding, using laser welding technology to achieve high quality welding of metal stainless steel materials. It has the following characteristics:
1. high-precision welding: laser welding technology can provide high energy density laser beam to achieve precise melting welding of metal stainless steel materials, high quality weld seam and good welding strength.
2. automated operation: automatic laser welding machine for metal stainless steel can realise automated positioning, alignment and welding operation of the workpiece, improving production efficiency and consistency.
3. fast welding speed: laser welding technology has high energy density and fast response, fast welding speed, suitable for mass production.
4. Non-contact welding: laser welding is carried out through the laser beam without contacting the surface of the workpiece, avoiding the deformation and pollution problems that may be caused by traditional welding methods.
5. environmental protection and energy saving: laser welding technology is characterised by high energy efficiency and low energy consumption, which reduces energy consumption and pollution of the environment compared with traditional welding methods.
Metal stainless steel automatic laser welding machine is widely used in metal processing, manufacturing and other fields, can improve production efficiency, product quality and production safety.
Product Description
Six-dimensional automatic welding machine
Laser welding machines are also often called laser welding machines, negative energy feedback laser welding
machines, laser welding machines, laser welding machines, laser cold welding machines, laser argon welding
machines, laser welding equipment, etc. According to its working mode, it can be divided into laser mold welding
machine (manual laser welding equipment), automatic laser welding machine, laser spot welding machine, optical
fiber transmission laser welding machine, galvanometer welding machine, hand-held welding machine, etc. Special
laser welding equipment includes sensor welding machine, silicon steel sheet laser welding equipment.
Our other hot products:
Laser Cutting Machine
Laser Marking Machine
New Energy Automation Application Product
Automatic Fiber Laser Welding Robot
Applications
| Main technical parameters of the equipment | ||
| Product Specifications | ||
| S/N | Main component name | Parameter |
| 1 | X axis effective stroke | 500mm |
| 2 | Y axis effective stroke | 300mm |
| 3 | Z axis effective stroke | 300mm |
| 4 | Dimensions | 1500×1400×1900mm |
| 5 | Machine weight | 280kg |
| 6 | Module operating speed | Y axis:10m/min |
| X axis:10m/min | ||
| Z axis:5m/min | ||
| 7 | repeated positioning accuracy | ±0.02mm |
| 8 | Rotating table | Circle runout accuracy ≤0.05mm |
| 9 | electricity demand | 220V/380V |
| 10 | Average load power | 6.5KW |
| Equipment configuration list | |||||
| Configuration Parameter | |||||
| S/N | Name | Specifications & Models | QTY | Brand | Remark |
| 1 | Fixture mounting plate | 350mm×450mm | 1 | Herolaser | |
| 2 | Laser | According to sample welding requirements | 1 | MAX or IPG | |
| 3 | Motor | servo motor | 3 | Huichuan | |
| 4 | Computer | PC/Industrial Computer | 1 | Advantech | |
| 5 | Chiller | According to laser power | 1 | S & A | |
| 6 | Welding head | According to sample welding requirements | 1 | Herolaser | |
| 7 | CCD Visual observation system | camera | 1 | Microsan | |
| light source | Basler/LeTV Light Source | ||||
| 8 | Z axis module | 300mm stroke | 1 | Herolaser | X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7 |
| 9 | X axis module | 500mm stroke | 1 | Herolaser | |
| 10 | Y axis module | 300mm stroke | 1 | Herolaser | |
| 11 | Rotating table | Three-jaw rotary chuck | 1 | Herolaser | |
| 12 | Lower cabinet | Sheet metal welding, paint baking | 1 | Herolaser | |
