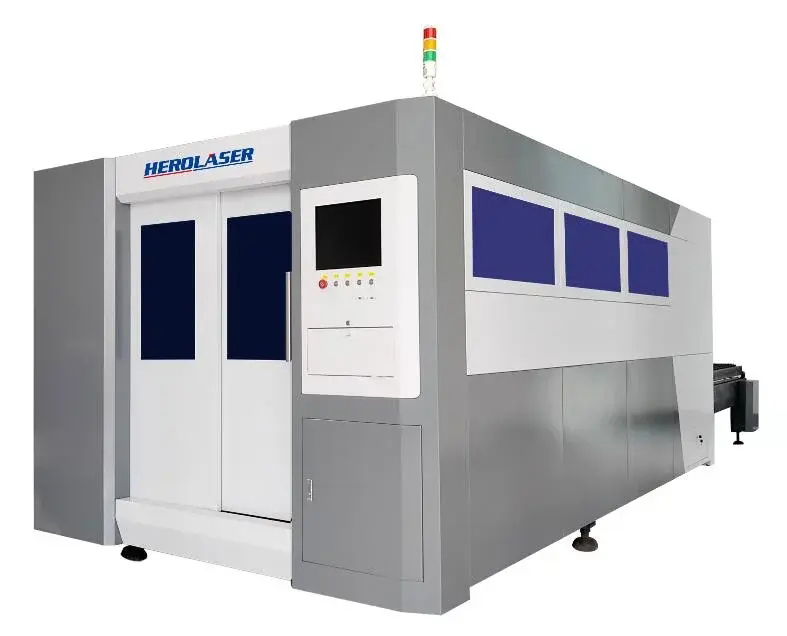

3015 Fiber Laser Cutting Machine With Surrounding Cabinet

3015 Cutting Area Laser Cutter 1000W 2000W 3000W Fiber Laser Cutting Machine with Surrounding Cabinet

3015 fibre laser cutting machine is a kind of cutting machine with surrounding cabinet. It has the following features:

1. Peripheral cabinet protection: 3015 fibre laser cutting machine with peripheral cabinet design can effectively protect the operator's safety. The cabinet can provide a full range of protection around the cutting area to prevent laser radiation and sparks from causing injury to the operator.

2. Provide environmental control: the surrounding cabinet can also provide environmental control functions. It can control factors such as room temperature, humidity and dust to ensure the stability of the cutting process and cut quality.

3. Reduces noise and radiation: The cabinet design can reduce noise and radiation levels during the cutting process. This not only improves the working environment and reduces noise disturbance to staff, but also protects the operator from laser radiation.

4. Easy to operate and maintain: The surrounding cabinet provides a centralised space to manage and control the cutting machine. Operators can easily approach the machine for programme setting, adjustment and maintenance work.

Product Description

Herolaser 3015 Model Laser Cutting machine

ML-CF-3015FB The sheet metal laser cutting machine adopts two-head mutual-moving laser cutting, and the processing area is large.
The negative pressure crawler working platform is equipped with left and right feeding and rewinding devices, which enables unwinding, cutting and rewinding in one go, which greatly reduces the time between procedures , Improve work efficiency and processing output.

Mutual movement laser cutting
Adopt two-side moving laser cutting,the processing area is large High precision and fast cutting.

Auto-sensing laser cutting head
High-speed idle, large robot, fast cutting response, corners are not easy to burn, the cutting head is in contact with the surface of the material ensuring that it will not be perfect.

Longmen dual-drive structure
Using rack and pinion dual drive transmission structure, high stability, high height, light weight, dynamic response.

Parameter:

Model parameters of high-power laser cutting machine
Optical performance parameters
S/N	Main component name	Parameter
1	Model	ML-CF-3015FB
2	Processing size	3000*1500mm
3	X/Y maximum speed	100m/min
4	X/Y maximum acceleration	0.5G
5	positioning accuracy	0.05mm
6	Repeatability	0.03mm
7	Maximum load	800kg
8	weight	2000kg
9	Dimensions (length x width x height)	5000x2200x1750mm
