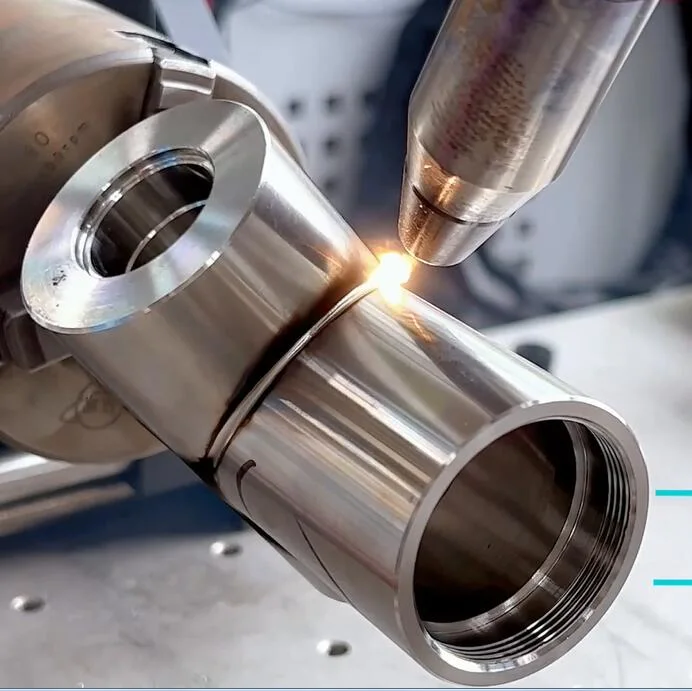

Laser Welding Machine for Stainless Steel Candle Stand1
2 year ago
1500W Laser Welder Soldering Auto System
Herolaser Automatic Metal Welding Machine 1500W Laser Welder Laser Soldering Auto System
The 1500W laser welding machine is a laser welding machine with a power of 1500 watts, equipped with a welding automatic system. It has the following features:
1. high power welding: 1500W laser power can provide high energy density laser beam to achieve efficient welding of workpieces.
2. automated operation: the welding automatic system can realise automated positioning, alignment and welding operations on workpieces, improving production efficiency and consistency.
3. High-precision welding: laser welding technology can realise precise melting welding of workpieces, with high seam quality and good welding strength.
4. fast welding speed: laser welding technology has the characteristics of high energy density and fast response, fast welding speed, suitable for mass production.
5. Stability and reliability: 1500W laser welding machine has stable and reliable performance, which can run stably for a long time to ensure welding quality and productivity.
1500W laser welding machine welding automatic system is widely used in the field of industrial processing, which can improve production efficiency, product quality and production safety.
Packaging & Delivery
Product Description

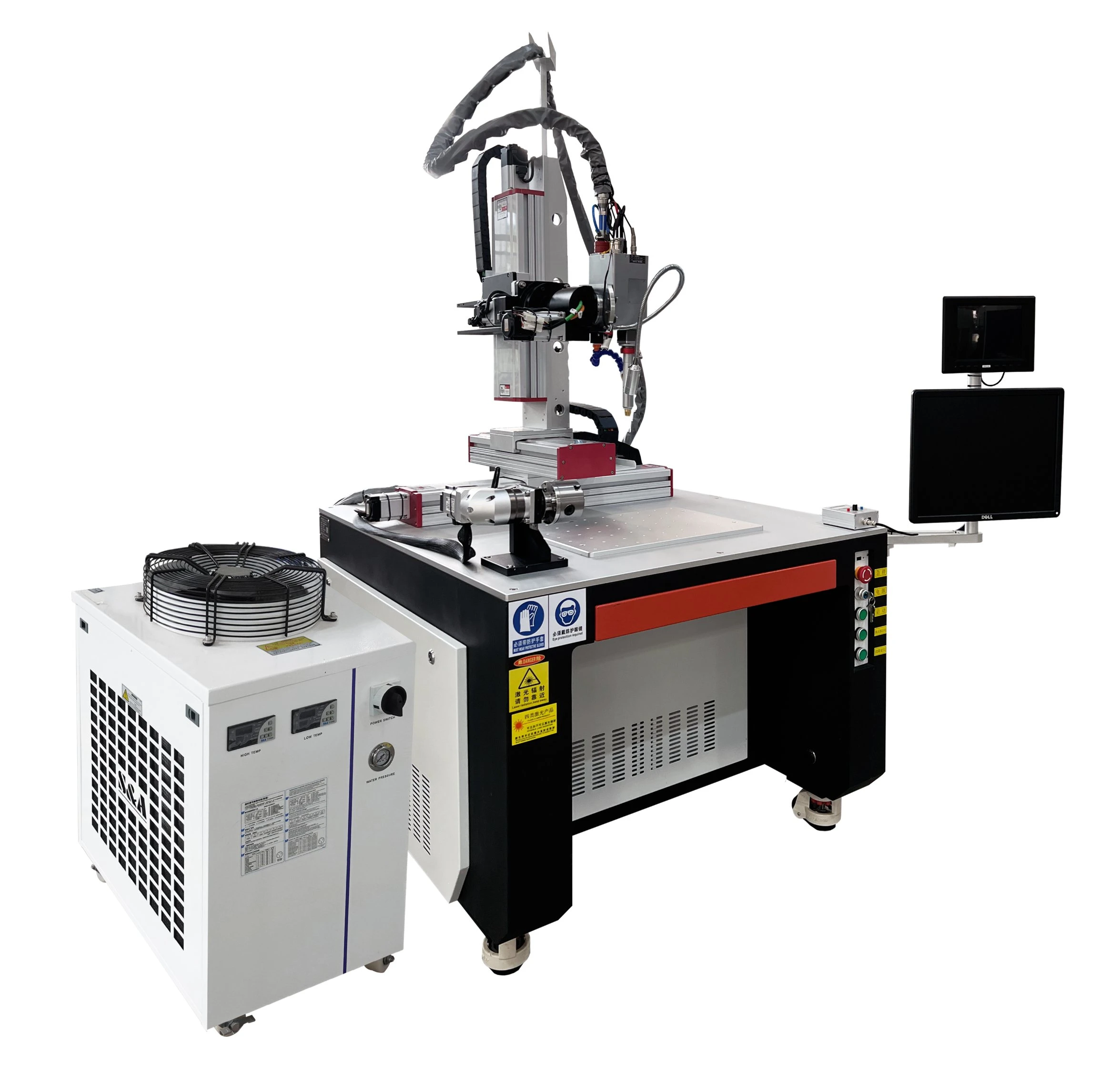

Six-dimensional automatic welding machine
Hero laser automatic laser welding machine adopts manual design, simple and convenient installation and operation, adopts self-equipped cooling system, does not need any external water tower for water cooling, the maximum frequency can reach 100HZ, the linear speed can reach 8mm/s, which greatly improves the welding efficiency and welding quality.
The current waveform can be adjusted arbitrarily, which can be applied to various materials and alloys.
Laser welding machines are also often called laser welding machines, negative energy feedback laser welding machines, laser welding machines, laser welding machines, laser cold welding machines, laser argon welding machines, laser welding equipment, etc. According to its working mode, it can be divided into laser mold welding machine (manual laser welding equipment), automatic laser welding machine, laser spot welding machine, optical fiber transmission laser welding machine, galvanometer welding machine, hand-held welding machine, etc. Special laser welding equipment includes sensor welding machine, silicon steel sheet laser welding equipment.
Our other hot products:
3/4/6 Axis Automatic Laser Welding Machine
High Power 12Kw Laser Welding Machine
Laser Rust Remove Machine
Mould Repairing Yag Laser Welding Machine
Applications
| Main technical parameters of the equipment | ||
| Product Specifications | ||
| S/N | Main component name | Parameter |
| 1 | X axis effective stroke | 500mm |
| 2 | Y axis effective stroke | 300mm |
| 3 | Z axis effective stroke | 300mm |
| 4 | Dimensions | 1500×1400×1900mm |
| 5 | Machine weight | 280kg |
| 6 | Module operating speed | Y axis:10m/min |
| X axis:10m/min | ||
| Z axis:5m/min | ||
| 7 | repeated positioning accuracy | ±0.02mm |
| 8 | Rotating table | Circle runout accuracy ≤0.05mm |
| 9 | electricity demand | 220V/380V |
| 10 | Average load power | 6.5KW |
| Equipment configuration list | |||||
| Configuration Parameter | |||||
| S/N | Name | Specifications & Models | QTY | Brand | Remark |
| 1 | Fixture mounting plate | 350mm×450mm | 1 | Herolaser | |
| 2 | Laser | According to sample welding requirements | 1 | MAX or IPG | |
| 3 | Motor | servo motor | 3 | Huichuan | |
| 4 | Computer | PC/Industrial Computer | 1 | Advantech | |
| 5 | Chiller | According to laser power | 1 | S & A | |
| 6 | Welding head | According to sample welding requirements | 1 | Herolaser | |
| 7 | CCD Visual observation system | camera | 1 | Microsan | |
| light source | Basler/LeTV Light Source | ||||
| 8 | Z axis module | 300mm stroke | 1 | Herolaser | X, Y axis screw lead 10mm, Z axis screw lead 5mm; screw accuracy: C7 |
| 9 | X axis module | 500mm stroke | 1 | Herolaser | |
| 10 | Y axis module | 300mm stroke | 1 | Herolaser | |
| 11 | Rotating table | Three-jaw rotary chuck | 1 | Herolaser | |
| 12 | Lower cabinet | Sheet metal welding, paint baking | 1 | Herolaser | |
