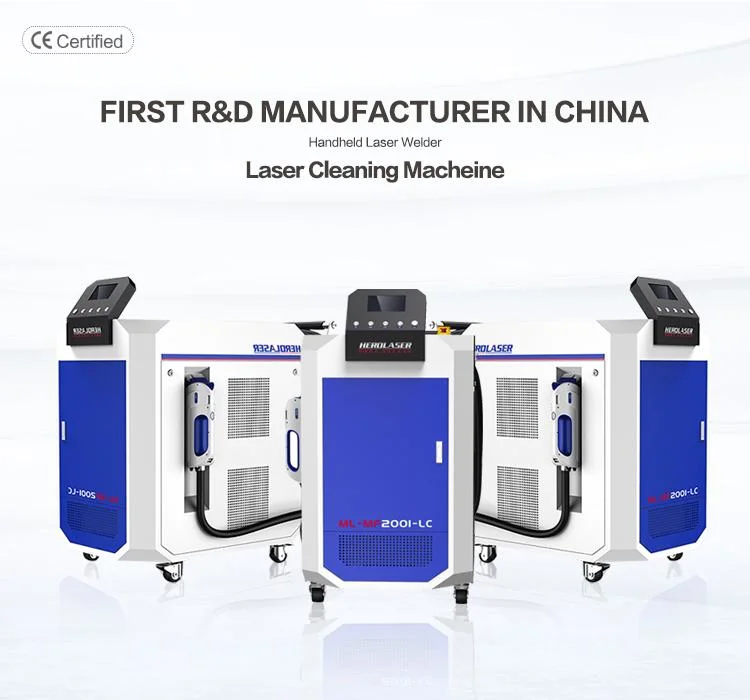

Herolaser Laser Cleaning Machine for Rust Removal 1000W
The Herolaser Laser Cleaning Machine for Rust Removal is a 1000W laser cleaning machine specifically designed to remove rust and other contaminants from various surfaces. It utilizes a high-power laser beam to ablate and vaporize the rust, without causing any damage to the underlying material.
Product Description
Model characteristics
1. Compact structure, portable, ergonomic
2. Selective cleaning, accurate cleaning can be achieved for the exact position and size of the product
3. The laser cleaning system is stable, and subsequent maintenance and maintenance costs are low
4. Intelligent operating system, multiple working modes available,
5. No damage to base materials, no consumables
The traditional cleaning industry has a variety of cleaning methods, mostly using chemical agents and mechanical methods for cleaning. Due to the increasingly strict requirements of environmental protection laws and regulations, and people's increasing awareness of environmental protection and safety, the types of chemicals that can be used in industrial production cleaning will become less and less after 2020. How to find a cleaner and less damaging cleaning method is a problem we have to consider.
Laser cleaning is considered to be the most reliable and effective solution due to its features of no grinding, non-contact, no thermal effect and suitable for cleaning objects made of various materials. At the same time, laser cleaning can solve problems that cannot be solved by traditional cleaning methods.
| Model | ML-MF100I-LC | ML-MF200I-LC | |||
| Laser Power | 100W | 200W | |||
| Cooling Way | Air Cooling | Water Cooling | |||
| Laser Wavelength | 1064nm | ||||
| Power Supply | AC 220-380V / 50 Hz | ||||
| Maximum KVA | 500W | 2200W | |||
| Fiber Length | 3-7m | 10-15m | |||
| Dimension | 460x285x450mm | 1400X860X1600 mm | |||
| Focal length | 210mm | ||||
| Focal depth | 2mm | 5mm | |||
| Handheld Laser Head Weight | 1.5kg | ||||
| Working Temperature | The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C) | ||||
| Pulse width | 20-50k ns | ||||
| Scan Width | 10mm-80mm (customizable additional price) | ||||
| Laser frequency | 20-50k HZ | ||||
| Laser source type | Fiber laser source | ||||
| Options |
Portable/
Handheld
|
Handheld/
Automation/
Robotic system
|
|||
Handheld Laser Cleaning Machine Cleaning Data:
(This data is for reference only, please refer to the actual data of the proofing; 1000W laser cleaning equipment can be adjusted to 500W.)
| Rust Removal | 200W | 500W | 1000W |
| 30μm | 12m²/hour | 15m²/hour | 19m²/hour |
| 50μm | 10.8m²/hour | 13.5m²/hour | 17.5m²/hour |
| 80μm | 8.5m²/hour | 11.8m²/hour | 16m²/hour |
| 100μm | 6m²/hour | 8.5m²/hour | 14m²/hour |
-------------------------Advantages of laser cleaning---------------------------
1. Laser cleaning is a "green" cleaning method, which does not need any chemical agents and cleaning fluids. The waste after cleaning is basically solid powder, small in size, easy to store, recyclable, and can easily solve the environmental pollution problem caused by chemical cleaning;
2. The traditional cleaning method is often contact cleaning, which has a mechanical force on the surface of the object to be cleaned. The surface of the damaged object or the cleaning medium is attached to the surface of the object to be cleaned, which cannot be removed, resulting in secondary pollution. The non abrasive and non-contact nature of laser cleaning makes these problems easy to solve;
3. The laser can be transmitted through optical fiber, cooperated with robot hands and robots to facilitate remote operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places;
4. Laser cleaning can remove various types of pollutants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. Moreover, the pollutant on the material surface can be selectively cleaned without damaging the material surface;
5. High laser cleaning efficiency and time saving;
6. Although the one-time investment in purchasing the laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time, with low operating cost and only electricity charge per hour.
Our Advantages
1. First high power fiber laser cleaning machine in China.
2. Non-contact cleaning, no damage to workpiece
3.Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
4. No need chemical detergent, no consumable. Safe & environment-friendly.
5. Easy to operate ,Either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.
Comparison with traditional clean methods:
| Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution |
Dust pollution |
No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Applications:
1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
6.Stone figure surface dust & attachment cleaning.
7.Plastic mould residues cleaning
