50W 100W Rust Laser Cleaning Machine
Product Description

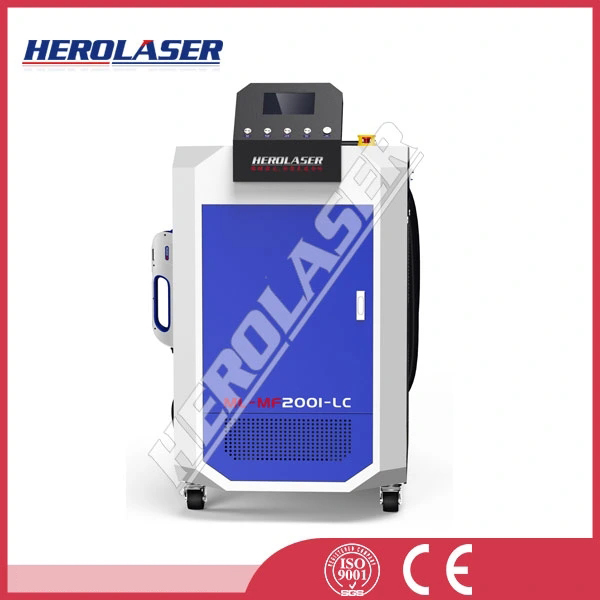

50W 100W Rust Laser Cleaning Machine
They utilize high-power laser beams to vaporize or ablate the rust layer, leaving behind a clean surface.
The power rating (50W or 100W) indicates the strength of the laser beam generated by the machine. A higher wattage generally means a more powerful laser, capable of removing rust faster and from a wider range of materials.
These machines are commonly used in industries such as manufacturing, automotive, aerospace, and restoration, where rust removal is a critical step in maintaining and refurbishing metal surfaces. They offer a non-contact, precise, and environmentally friendly solution compared to traditional methods like sandblasting or chemical treatments.
Laser cleaning machine is the latest high-tech product. Easy to install, operate, easy to achieving automation.. Plug in power, turn on and start cleaning - without chemicals, media, dust, water.
Cleaning with no detergent, no media, no dust, no water. Auto focus, can clean curved surface, gentle cleaning surface. Cleaning resin, oil stain, rust, coating materials, paints on workpiece surface.
Specifications:
| Model | ML-MF-200I-LC | ML-MF-500I-LC |
| Laser Power | 200W | 500W |
| Cooling Way | Water Cooling | |
| Laser Wavelength | 1064 nm | |
| Power Supply | AC220V | |
| Maximum Power | 2200W | 5100w |
| Dimension | 600mmX1000mmX1000mm | |
| Weight | 226KG | 275KG |
| Working Temperature | 5-40°C | |
| Focal depth | 10mm | 15mm |
| Laser source type | Fiber laser source | |
| Options | Portable/ Automation | |
Features:
1. First high power fiber laser cleaning machine in China.
2. Non-contact cleaning, no damage to workpiece
3.Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
4. No need chemical detergent, no consumable. Safe & environment-friendly.
5. Easy to operate ,Either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.
Comparison with traditional clean methods:
| Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
| Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
| Harm to base material | None | Yes | Yes | None |
| Washing Efficiency | High | Low | Low | Mid. |
| Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
| Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
| Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
| Safety/Environment | No pollution | Chemical pollution |
Dust pollution |
No pollution |
| Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
| Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Applications:
1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
6.Stone figure surface dust & attachment cleaning.
7.Plastic mould residues cleaning.
Our other hot products：
Handheld Laser Welding Machine
Portable Laser Rust Cleaning Machine
Ld Laser Rust Remove Cleaning Machine
Standard Model Cleaning Machine
Mould, Automotive, Ship, Food, Water Treatment, Rubber Tyre, Petrochemical industry
