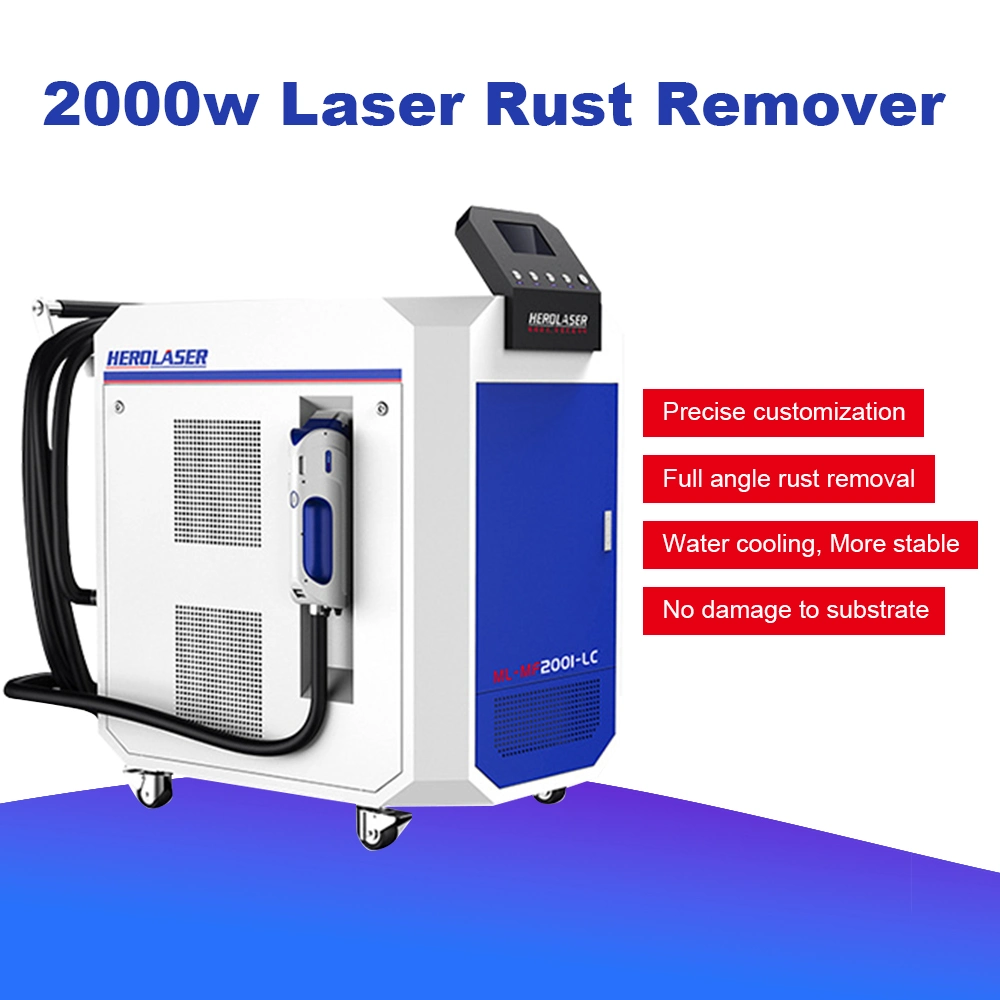

2000W Hand-Held Continuous Laser Rust Removal Machine
Herolaser 2000W Hand-Held Continuous Laser Rust Removal Machine Cleaning Cleaner for Metal Paint Oil
The 2000W hand-held continuous laser rust removal machine is a powerful tool used in industrial applications for removing rust and other surface coatings. It utilizes a high-power laser beam to vaporize and ablate the rust, without the need for traditional methods like sandblasting or chemicals. This hand-held device offers convenience and flexibility for precision rust removal in various settings.
Product Description
Laser rust removal, a type of laser cleaning, is an effective process for cleaning up metal parts. Using a fiber laser cleaning system, rust and other contaminants can be quickly and completely removed without damaging the metal underneath.
Optical fiber laser rust remover is a high-tech product used for metal surface cleaning. It is easy to install, auto focus, simple to operate, and it is a chemical reagent free, medium free, dust-free, water free cleaning; This laser rust remover is small, portable, fast, accurate and stable; The cleaning surface has a high cleanliness, which can remove the resin, oil stain, dirt, rust spot,
coating, plating, paint on the surface of metal objects of various shapes, as well as the attachment on the stone carving surface and the residue of rubber mold; It can be used in aviation, shipping, cultural relic protection, automobile peripheral, food industry, rail, rubber mold industry.
Model | ML-MF100I-LC | ML-MF200I-LC | |||
Laser Power | 100W | 200W | |||
Cooling Way | Air Cooling | Water Cooling | |||
Laser Wavelength | 1064nm | ||||
Power Supply | AC 220-380V / 50 Hz | ||||
Maximum KVA | 500W | 2200W | |||
Fiber Length | 3-7m | 10-15m | |||
Dimension | 460x285x450mm | 1400X860X1600 mm | |||
Focal length | 210mm | ||||
Focal depth | 2mm | 5mm | |||
Handheld Laser Head Weight | 1.5kg | ||||
Working Temperature | The service life of the laser is long at constant temperature of 5-40 ° C (normally at constant temperature of 25 ° C) | ||||
Pulse width | 20-50k ns | ||||
Scan Width | 10mm-80mm (customizable additional price) | ||||
Laser frequency | 20-50k HZ | ||||
Laser source type | Fiber laser source | ||||
Options |
Portable/
Handheld
|
Handheld/
Automation/
Robotic system
|
Handheld Laser Cleaning Machine Cleaning Data:
(This data is for reference only, please refer to the actual data of the proofing; 1000W laser cleaning equipment can be adjusted to 500W.)
Rust Removal | 200W | 500W | 1000W |
30μm | 12m²/hour | 15m²/hour | 19m²/hour |
50μm | 10.8m²/hour | 13.5m²/hour | 17.5m²/hour |
80μm | 8.5m²/hour | 11.8m²/hour | 16m²/hour |
100μm | 6m²/hour | 8.5m²/hour | 14m²/hour |
----------------------Model characteristics------------------------------------
1. Hand-held cleaning head
Hand-held structure is simple, easy to carry
Easy to operate, detachable flexible front end for auto focus.
2. No damage for the parts matrix.
Precise positioning without damaging the part matrix. The laser cleaner can clean the surface of very sensitive materials (such as aluminum, carbon, stainless steel, carbon fiber reinforced polymers or coating materials) without damaging the material.
3. Ecological and environmental protection
High cleanliness cleanliness, precise positioning, protect the surface of brittle materials. Effectively remove micron-level pollution particles. Safe and environmentally friendly, no consumables. The laser cleaning machine does not use chemical cleaning fluid, which avoids the damage to the material caused by chemical corrosion.
-----------Herolaser Laser Cleaning vs Traditional Cleaning------------
Laser cleaning VS Traditional cleaning | |||||
Comparison and Analysis of Industrial Cleaning Schemes | |||||
Comparison item | Laser cleaning | Chemical cleaning | Mechanical grinding | Dry ice cleaning | Ultrasonic cleaning |
Working principle | Laser | Chemical cleaning agent | Abrasive paper/grinding wheel | Dry ice | Special cleaning solution |
Non contact | √ | × | × | × | × |
Workpiece NO damaged | √ | × | × | √ | √ |
Cleanliness | High | Uneven | Uneven | Uneven | Excellent |
Cleaning efficiency | High | Low | Low | Moderate | Moderate |
Controllable(Accuracy) | Controllable | Uncontrollable | Uncontrollable | Uncontrollable | Uncontrollable |
Accuracy | High | Poor | General | Poor | Scope to be developed |
Green and environmental | √ | × | × | √ | √ |
Manual operation | Simple | Complex | Protective measures | Simple | Simple |
Consumables | No required | Required | Required | Required | Required |
-------------------------Advantages of laser cleaning---------------------------
1. Laser cleaning is a "green" cleaning method, which does not need any chemical agents and cleaning fluids. The waste after cleaning is basically solid powder, small in size, easy to store, recyclable, and can easily solve the environmental pollution problem caused by chemical cleaning;
2. The traditional cleaning method is often contact cleaning, which has a mechanical force on the surface of the object to be cleaned. The surface of the damaged object or the cleaning medium is attached to the surface of the object to be cleaned, which cannot be removed, resulting in secondary pollution. The non abrasive and non-contact nature of laser cleaning makes these problems easy to solve;
3. The laser can be transmitted through optical fiber, cooperated with robot hands and robots to facilitate remote operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places;
4. Laser cleaning can remove various types of pollutants on the surface of various materials to achieve a cleanliness that cannot be achieved by conventional cleaning. Moreover, the pollutant on the material surface can be selectively cleaned without damaging the material surface;
5. High laser cleaning efficiency and time saving;
6. Although the one-time investment in purchasing the laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time, with low operating cost and only electricity charge per hour.
Our Advantages
1. First high power fiber laser cleaning machine in China.
2. Non-contact cleaning, no damage to workpiece
3.Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.
4. No need chemical detergent, no consumable. Safe & environment-friendly.
5. Easy to operate ,Either portable or equipped with robot for automatic cleaning.
6. High cleaning efficiency, time-saving.
7. Stable laser cleaning system, free maintenance.
Comparison with traditional clean methods:
Comparision | Laser Cleaning | Chemical Cleaning | Mechanical Grinding | Dry ice cleaning |
Washing Method | non-contact cleaning | contact cleaning | Abrasive contact cleaning | non-contact cleaning |
Harm to base material | None | Yes | Yes | None |
Washing Efficiency | High | Low | Low | Mid. |
Consumable | Power | Chemical Detergent | Abrasive paper, grinder, abrasive stone | Dry Ice |
Washing result | Very good, very clear | Medium, uneven | Medium, uneven | Good, uneven |
Precision Washing | Accuracy controllable. High precision | Uncontrollable, low precision. | Uncontrollable, medium precision. | Uncontrollable, poor precision. |
Safety/Environment | No pollution | Chemical pollution |
Dust pollution |
No pollution |
Operation | Easy to operate, portable or automation optional. | Complicated process, higher technical requirement of the operator. Pollution prevention measures required. | Need more time & manpower. Pollution prevention measures required. | Easy to operate, portable or automatic. |
Investment | High investment on machine. But no consumable, low maintenance cost | Low investment on machine. But expensive consumables | Medium investment on machine. High man-power cost. | Medium investment on machine. High consumable cost. |
Our other hot products:
Small Bed Precision Fiber Laser Cutting Machine
Laser Marking Machine
3015 Fiber Laser Cutting Machine
6025 Fiber Laser Cutting Machine

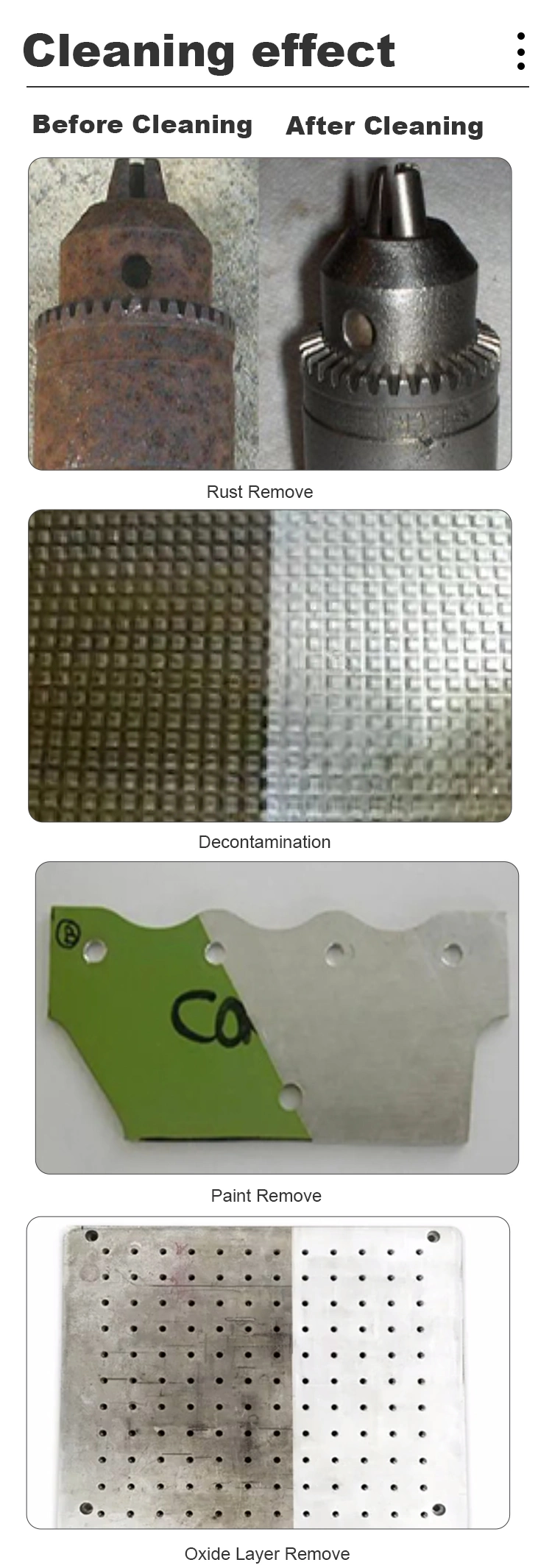

Applications:
1.Metal surface rust removal
2.Paint cleaning
3.Oil stain, contaminant cleaning
4.Coating surface cleaning
5.Welding/Coating surface pre-treatment.
6.Stone figure surface dust & attachment cleaning.
7.Plastic mould residues cleaning
