Industrial ABB Robot Arm Automatic CNC Fiber Laser Welding Machine Equipment 1000W 2000W 3000W1

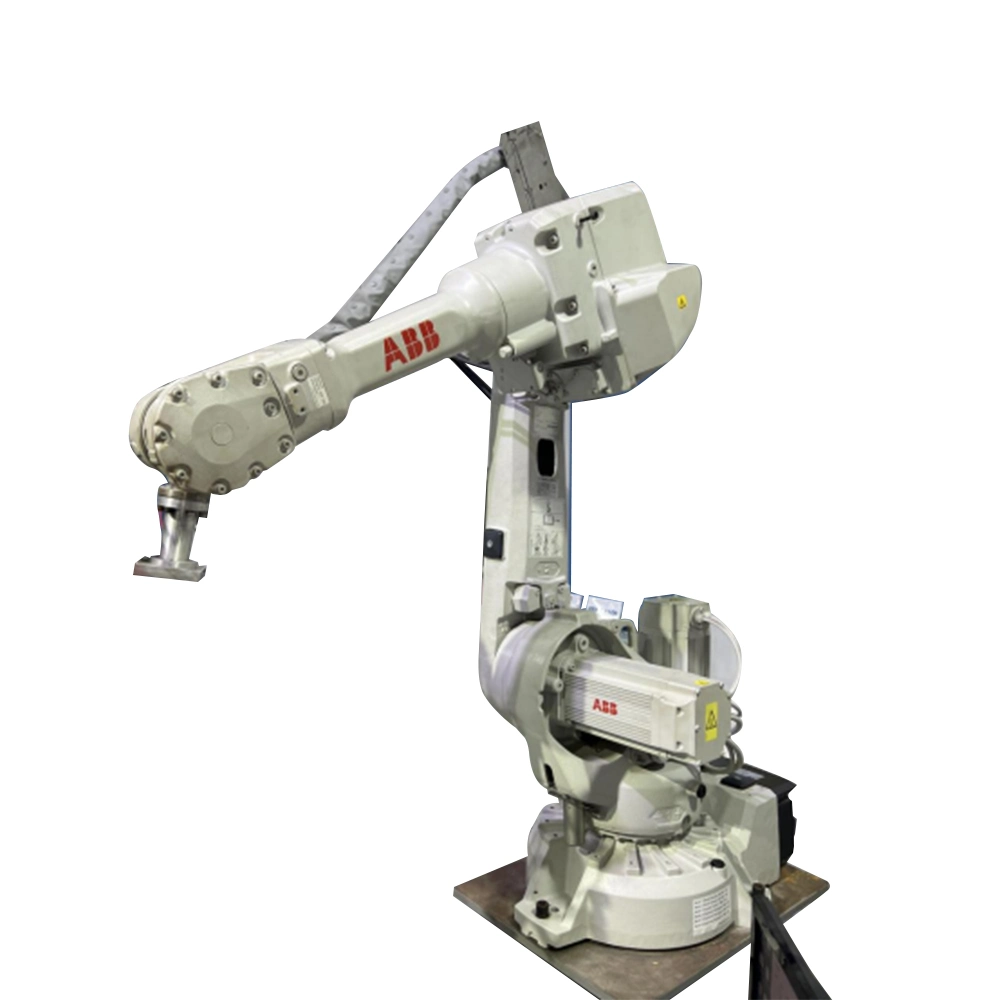

Automatic Laser Welding Machine with ABB Robot Arm

Herolaser 3000W Robot Automatic Laser Welding Machine with ABB Robot Arm

Automatic laser welding machines equipped with ABB robot arms have the following features:

1. High precision: ABB robot arm has precise positioning and motion control capability, which can realise high-precision welding operation.

2. high speed: ABB robot arm has a fast action response and movement speed, can achieve high efficiency welding operations.

3. Flexibility: ABB robot arm with multi-axis degrees of freedom, can adapt to different shapes and sizes of the workpiece, to achieve flexible welding path and angle.

4. High degree of automation: automatic laser welding machine equipped with ABB robot arm can achieve automated welding process, reducing the need for manual operation.

5. Stability and consistency: ABB robot arm has stable motion control and repeatability, which can ensure the stability and consistency of welding quality.

Product Description

Herolaser robot laser welding

Herolaser robot laser welding system consists of fiber laser, laser power supply, control system, laser indicating positioning system, WOBBLE laser welding head, cooling system, etc.

The laser generator adopts a fiber laser, the laser pulse waveform can be edited arbitrarily, and the energy output is stable.



The laser welding head adopts the laser welding head independently developed by Herolaser, which has very high welding stability and flexibility, and can be rotated 360 degrees.



The cooling system of the fiber laser welding machine is composed of temperature measuring device, water circulation, radiator and deionized resin.

The temperature measuring device detects the water temperature in the water tank in real time and judges whether the water temperature is too high.

If the temperature exceeds the upper limit, the system will automatically turn off the laser to avoid damage to the laser.

After the machine is turned on, the water circulation and the radiator form heat exchange with the outside world, which quickly removes the heat generated when the laser is working, ensuring that the laser is working properly.

The cooling system and the whole machine adopt an integrated design to make the system more concise and occupy a smaller area.

Product Parameters



Technical Parameters
Power(Laser Source)	1000W,1500W,2000W
Wavelength	1080nm
Working Mode	Continuous / Modulation
Material Thickness	SS,Aluminum Alloy≤3mm
Control System	ML Laser Control System
Aiming & Positioning	CCD,Red Light Indicator
Cooling	Water Cooling
Power(Machine)	5KW ~10KW
Power Demand	380V±10%,50Hz/60Hz AC

Equipment Configuration List
Name	Specification	Quantity	Remark
Six-axis Manipulator	Repeat Positioning Accuracy 0.05mm	1 Set	QX1600 (With base)
Fiber Laser Source		1 Set
WOBBLE Welding Head	Made by Herolaser	1 Set	Domestic
Host Cabinet	Herolaser Customized	1 Set	Domestic
CCD Observation System	Dedicated for Welding	1 Set	Domestic
Wire Feeding Device	Herolaser Customized	1 Set
