1000W 1500W 2000W 3000W Portable Handheld Mini Fiber Laser Welding Machine for Metal Stainless Steel1

Fiber Welding Machine 2000 W Handheld Laser Welder

A Fiber Welding Machine 2000W handheld laser welder is a portable welding device that utilizes a fiber laser source with a power output of 2000W. This handheld laser welder is designed for precision welding applications in various industries.

The fiber laser generates a high-energy laser beam that is transmitted through a flexible fiber optic cable. With the handheld design, the operator can easily maneuver the laser welder and direct the laser beam to the desired welding point. This allows for greater flexibility and accessibility, especially when working on large or complex components.

The 2000W power output of the laser source provides high energy density, which allows for fast and efficient welding of different materials, including metals like stainless steel, aluminum, and titanium. The laser welder can create high-quality welds with minimal heat input and distortion, resulting in strong and durable weld joints.

The handheld laser welder is commonly used in applications such as automotive repair, jewelry manufacturing, electronics assembly, and even in the field of medicine, where precise and controlled welding is required. Its portability and ease of use make it a convenient tool for on-site repairs and small-scale welding tasks.

Product Description

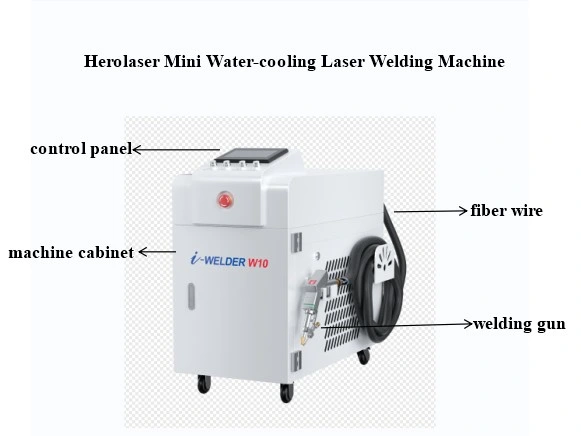

Water-cooled handheld laser welding machine

Most sales in the market are dominated by water-cooled hand-held welding. Water-cooled hand-held welding uses water as thecooling medium. Our company sells water-cooled welding machines with different powers such as1000W, 1500W, 2000W, 3000W, etc. And mini hand-held welding focuses on three models: 1000W and1500W



Water-cooled handheld welding machine features: built-in dual-temperature dual-control industrial chiller, constant temperature

regulation and heat dissipation, to ensure the heat dissipation of the core optical circuit components. With fiber laser, stable and efficient.

Handheld Laser Welding Machine Parameter:


Items	Parameter
Equipment Name	Handheld fiber laser welding machine
Laser Power	1000W,1500W
Laser Wavelength	1070 NM
Fiber Length	Standard 10M Maximum 15M
Work Way	Continuously modulated
Water Chiller	Industrial thermostatic water tank
Working Environment Temperature	15~35 ºC(Low temperature needs to add antifreeze)
Working Environment Humidity	Working Environment Humidity
Suggested Welding Thickness	less than 4mm (depends on the thickness and materials)
Welding gap requirement	≤1.6mm
Working Voltage	220V/380V 50Hz
Weight	150 KG
Size	90*75*45cm

Handheld Laser Welding Machine Welding Data:
(This data is for reference only, please refer to the actual data of the proofing; 1000W laser welding equipment can be adjusted to 500W.)


Power	Stainless steel	Carbon steel	Galvanized plate
500W	0.5-0.8mm	0.5-0.8mm	0.5-0.8mm
800W	0.5-1.2mm	0.5-1.2mm	0.5-1.0mm
1000W	0.5-1.5mm	0.5-1.5mm	0.5-1.2mm
2000W	0.5-3mm	0.5-3mm	0.5-2.5mm

Detailed Photos

Our other hot products：
Portable Laser Rust Cleaning Machine
Ld Laser Rust Remove Cleaning Machine
Standard Model Cleaning Machine
Welding Spot Laser Cleaning Machine

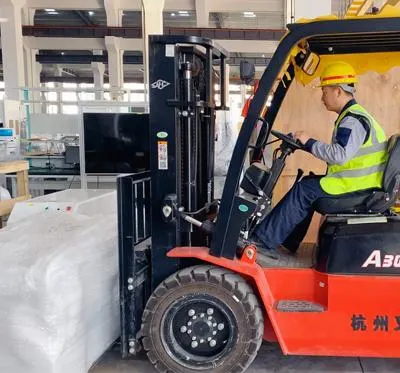

Packaging & Shipping

We support ship by air and sea.
Will pack laser welding machine with foam and dust film first, then pack it with woodon box.

Products are widely used in electrical appliances, mobile communications, hardware products, tool accessories, precision
equipment, jewelry, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.

Certifications
