6016 Cutting Machine Fiber Laser Tube Cutter for 6000mm Length 170kg Load1
2 year ago
Herolaser Tube Laser Cutters Pipe Cutting Machine is a type of laser cutting machine specially designed for cutting tubes and pipes. With advanced laser technology, it provides precise and efficient cutting for various types of metal pipes, including round, square, rectangular, oval, and more. The machine has a high cutting speed and can cut complex shapes easily. It is widely used in industries such as automobile, aerospace, construction, and furniture manufacturing, among others.Laser Welding Machine
Product Description

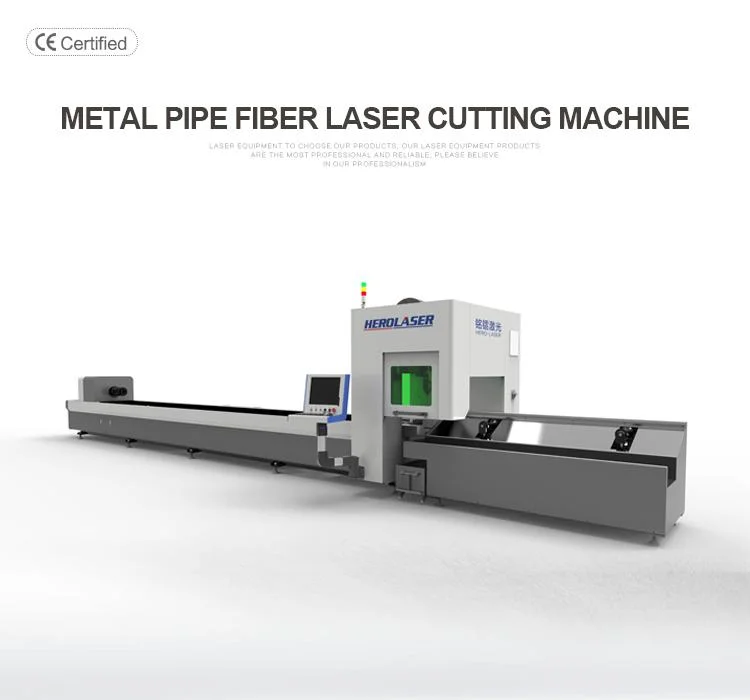

Standard 6m Optical Fiber Laser Pipe Cutting
ML-6035D laser pipe cutting machine is a standard optical fiber laser pipe cutting machine developed by Herolaser.Handheld Laser Welding Machine
It adopts long-term stable and reliable advanced medium and high-power optical fiber laser, selects high-precision gear rack, imported high-precision linear guide rail and other high-efficiency transmission components, and is a precision CNC automatic laser pipe cutting machine assembled through WEIHONG professional pipe cutting control system.Laser Cutting Machine
It is a high-tech product integrating the latest laser cutting, precision machinery, numerical control technology and other disciplines.
It is mainly used for cutting metal pipes such as carbon steel pipe and stainless steel pipe (square pipe, round pipe and rectangular pipe).
It is a useful cutting tool in the metal pipe processing industry.
The bed adopts horizontal gantry structure and combined transmission mode of gear rack and screw.
Transmission components such as reducer, guide rail and gear rack are well-known brands. It has the characteristics of stable structure, good rigidity, light weight and high dynamic response.
It is a professional laser pipe cutting machine with high efficiency, precision and stability.
Parameter:
| Item | GS Series | ||
| 1 | Model | ML-CP-6016D-BP-IW | ML-CP-6035D-ZX |
| 2 | Processing pipe range |
Round tube 20-120 Square tube 20-80 |
Round tube 20-160 Square tube 20-110 |
| 3 | Maximum processing length | 6800mm | 6800mm |
| 4 | Chuck maximum speed | 100rpm | 75rpm |
| 5 | X/Y maximum speed | 150mpm | 85mpm |
| 6 | X/Y maximum acceleration | 0.75G | 0.75G |
| 7 | Positioning accuracy | ±0.05mm | ±0.05mm |
| 8 | Repeatability | ±0.03mm | ±0.03mm |
| 9 | Maximum load | 150kg | 500kg |
| 10 | Cutting Method | Fixed adjustable support/Follow-up support blanking | Fixed adjustable support/Follow-up support blanking |
| 11 | Feeding method | Fully automatic feeding | Fully automatic feeding |
| 12 | Tailing length | 0-60mm | 110mm |
| 13 | Weight | 5.50 tons | 8 tons |
| 14 | Dimensional size | 11000*2500*2400mm | 11000*2500*2400mm |
Our other hot products：
Laser Rust Cleaning Machine
Ocv Testing Machine
Automatic Laser Equipment And Battery
Automatic Production Line
- Pneumatic Chuck - labor saving and production increasing:
Pneumatic clamping, large and stable clamping force to ensure high-precision cutting,
Special support frame can avoid pipe sagging and deformation, improve cutting accuracy and prolong the service life of chuck.
- Intelligent Large Screen Operating System:
Intelligent operation pipe cutting system, simple interface operation, efficiency greatly improved, unique graphic database without manual programming.
- Automatic Sensing Laser Cutting Head
High idle running acceleration, fast cutting response, and corners are not easy to burn, and the cutting head will not contact the material surface to ensure the perfection of the workpiece.
- Horizontal Gantry Structure
Gear rack and screw combined transmission mode can obtain high stability, good rigidity, light weight and high dynamic response.
We support ship by air and sea.
Will pack laser welding machine with foam and dust film first, then pack it with wooden box.

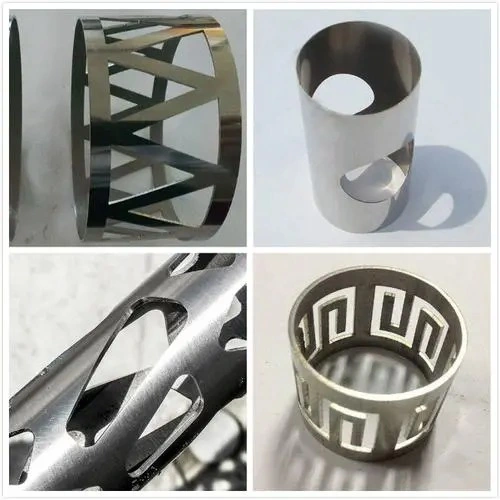

Application
