Product details

Application

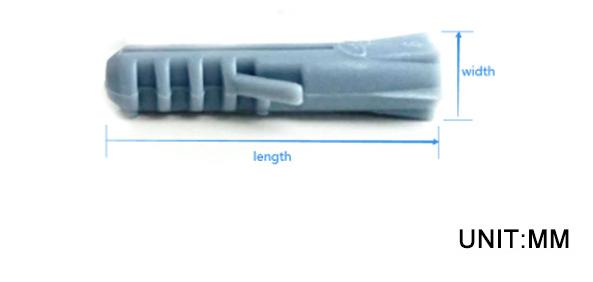

1. Wall Plug

Width	Length	Drill dia	Hole drill	Screw diameter	Material
5	22	5	30	2.8-3	PE
6	25	6	30	3.2-3.5	PE
8	30	8	35	3.5-4	PE

2. Testing For New Material

Product Description

Features of Our Servo Injection Molding Machine

* Double cylinder balanced injection system; * Multi-stage pressure &speed injection;

* Back pressure adjustment device; * Low-pressure mould protection;

* Single hydraulic core pulling and inserting; * Multiple hydraulic ejector knock-out;
* Mechanical, electrical safety device; * Auto lubrication system;
* Hydraulic pressure full proportional control; * Computer control system;
* Molding data memory system; * Automatic mould adjust function;
* Energy-saving with servo motor;

Save The Cooling Water

No constant flow pump and speed set motor overflow heating.When the temperature of hydraulic oil is lower,
the cooling wateris reduced greatly

Low Noise

The noise is below 78db. Servo motor has almost no noise when no movement of machine.

High Precision High Response

The pressure sensor and rotary encoder with high precision and high sensitvity achieve pressureflow closed-oop control allows the repeatprecision error to be less than 19%. lt only takes 0.05 second to reach the largest output power.

Packaging & Shipping

Product Paramenters

ITEM/MODEL		HTY30
INJECTION UNIT		A	B
Screw Diameter	mm	23	25
Screw Ratio(L:D)		18	16.5
Injection Weight(PS)	g	28.2	33.6
Shot Volume	cm3	31	37
Injection Rate	g/s	25	30
Injection Pressure	Mpa	211	179
Screw Speed	r/min	0-200
CLAMPING UNIT
Clamp Tonnage	KN	300
Toggle Stroke	mm	195
Space Between Tie Bars	mm	240*210
Max.Mold Height	mm	220
Min.Mold Height	mm	60
Ejector Stroke	mm	13
Ejector Tonnage	KN	45
OTHERS
Heater Power	kw	2.5
Pump Motor Power	kw	3
Max.Pump Pressure	Mpa	14
Machine Dimension (LWH)	m	2.70.91.5
Machine Weight	t	1.1

	INJECTION UNIT	Screw diameter	Injection weight(PS)	Clamping force	Open stroke	Space between tie-bars (WxH)	Mold height	Machine weight
	INJECTION UNIT			mm	g	KN	mm	mm	mm	T
HTY30	A	19	20.6	320	155	255x220	80-260	1.1
		B	22						27
		C	25						34
HTY40	A	25	43	420	245	260x260	100-300	1.65
		B	27						50
		C	30						62
HTY50	A	25	51	520	270	300x300	100-340	2.2
		B	28						64
		C	32						84
HTY70	A	32	102	720	300	330x330	130-360	2.8
		B	34						116
		C	36						130
HTY90	A	32	105	920	330	370x370	150-400	3.4
		B	35						126
		C	38						149
HTY120	A	35	175	1200	350	410x410	150-450	3.6
		B	38						206
		C	42						252
HTY150	A	38	206	1500	400	430x430	160-480	4
		B	42						252
		C	45						289

Our service

A. Pre-sales

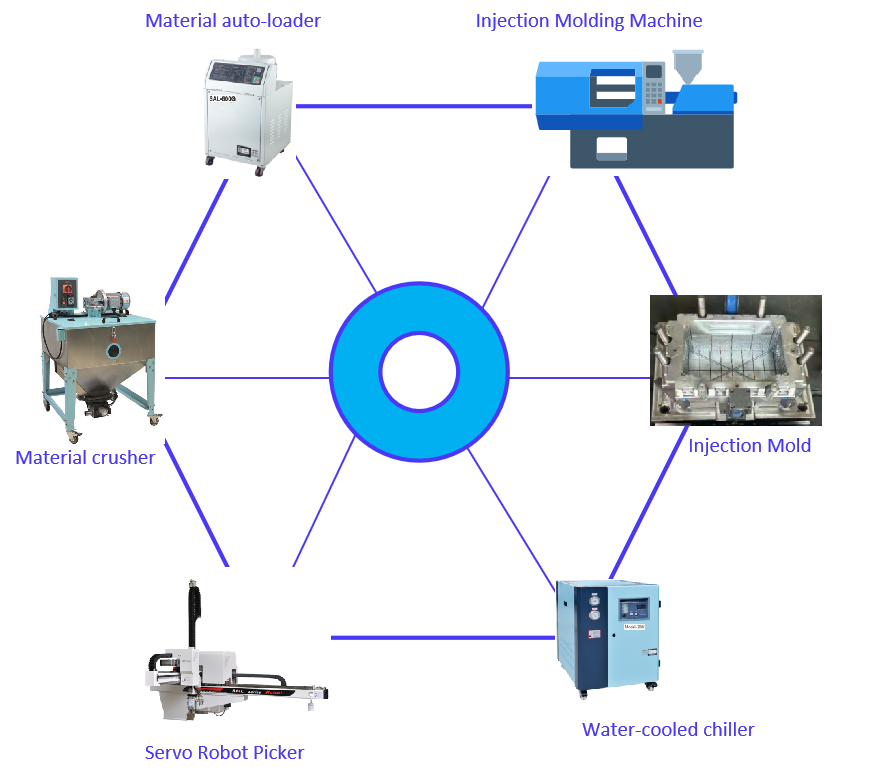

* Provide Customized solutions for plastic molding line ：

* Recommend suitable equipment according to customer requirement

* Tailor-made factory layout design, electricity piping layout design

B. Sales

* project manager for project tracking, QC control, technical support A well-trained installation

* Operation training courses at Turnfactory by well-trained technician

C. After-sales

* Professional after-sales service team with over 10 engineers for installation, commissioning training

* Engineer visit different countries regularly

* Sufficient spare parts in stock for fast response
